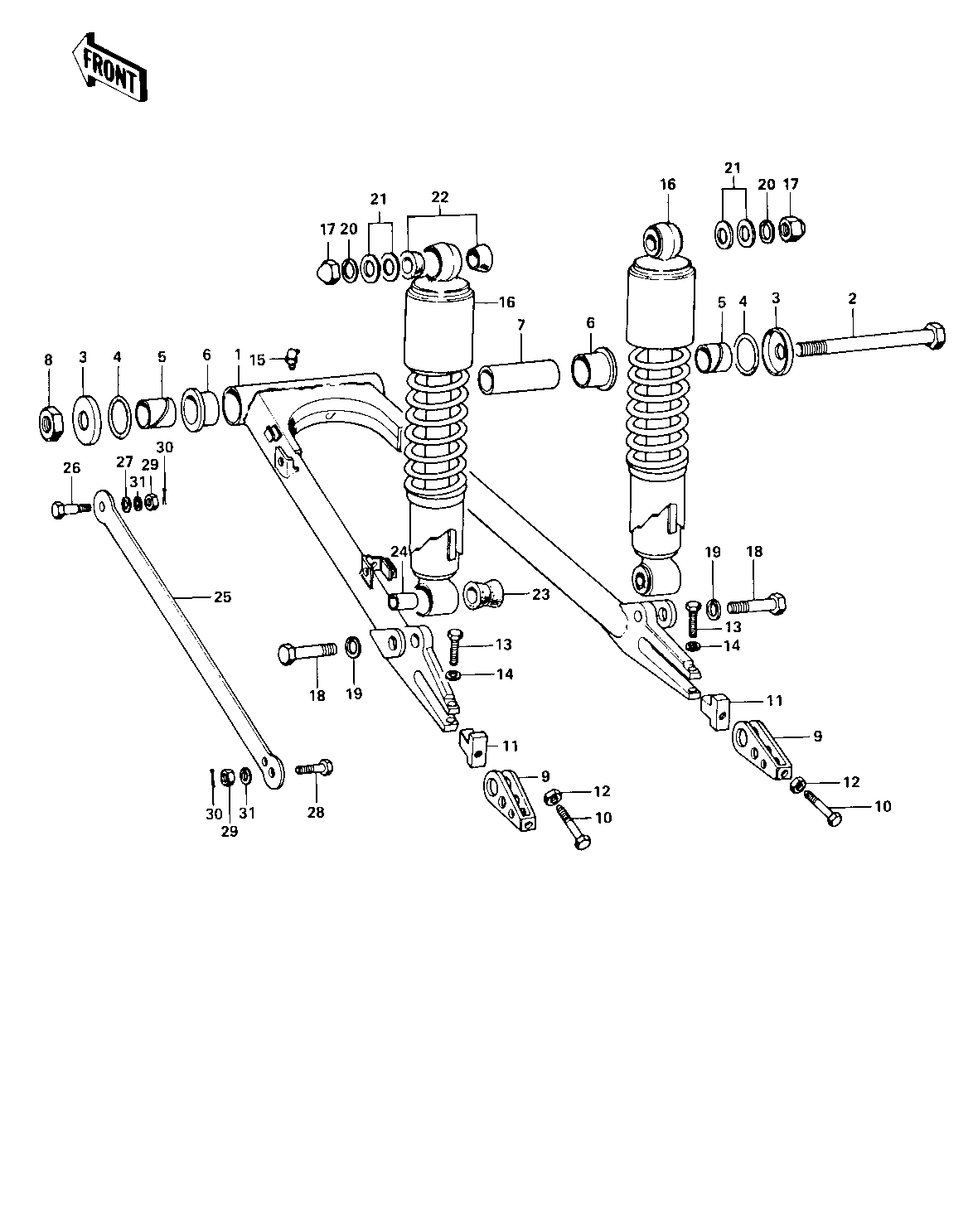

1976 KZ900-A4 - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM,SWING 1 33001-046 1
SHAFT,SWING ARM PIVOT 2 33032-036 1
CAP,SWING ARM 3 33035-007 2
"0" RING,30MM 4 671B2530 2
SLEEVE SWING ARM 5 33034-009 2
BUSHING-SWING ARM 6 33033-009 2
COLLAR,SWING ARM L=141.5MM 7 33036-005 1
NUT-SELF LOCKING 16MM 8 92019-012 1
ADJUSTER,CHAIN 9 33040-066 2
BOLT-CHN ADJUST 10MM 10 92001-143 2
STOPPER,CHAIN ADJUST 11 33044-001 2
NUT 10MM 12 315B1000 2
BOLT, HEX HEAD, 8X40 13 110G0840 2
WASHER SPRING 8MM 14 461F0800 2
GREASE NIPPLE 15 92005-002 1
SHOCK ABSBR RR 16 45014-107 2
NUT 17 92020-014 2
BOLT HEX HEAD 10X35 18 113N1035 2
WASHER SPRING 10MM 19 461F1000 2
WASHER SPRING 12MM 20 461F1200 2
WASHER PLAIN 12MM 21 410B1200 4
BUSH SHCK ABS RUBBER 22 45017-001 4
BUSHING,SHCK ABSORBER 23 45017-011 2
BUSH SHCK ABS PVT SFT 24 45016-003 2
TORQUE LINK,RR BRAKE 25 43007-032 1
BOLT TORQUE LINK FITT 26 92003-103 1
WASHER PLAIN 10MM 27 411B1000 1
BOLT,TORQUE LINK 28 92003-147 1
NUT,10MM 29 313B1000 2
PIN,SNAP 30 92041-005 2
WASHER SPRING 10MM 31 461F1000 2
