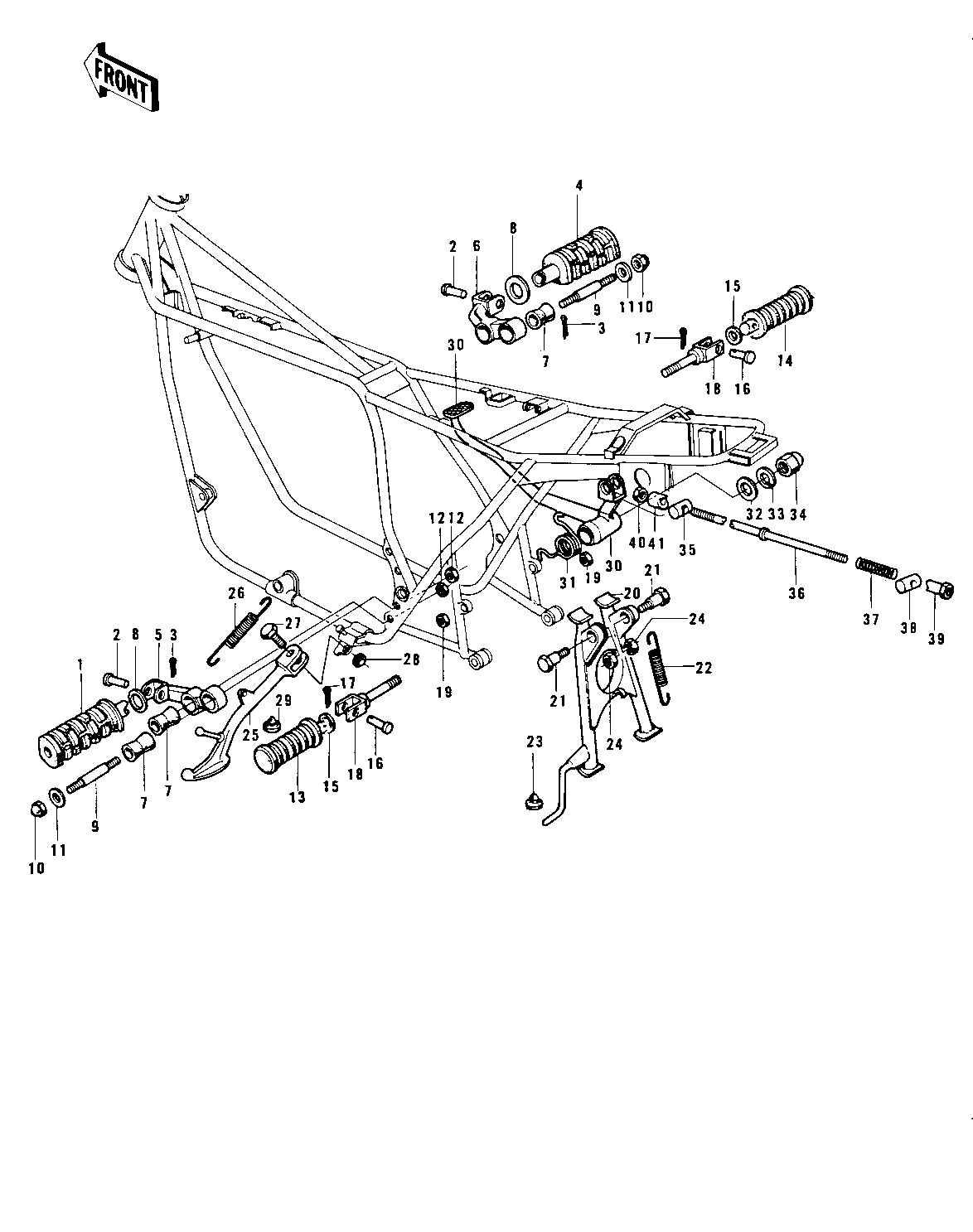

1976 KZ900-A4 - FOOTRESTS/STANDS/BRAKE PEDAL
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BAR-FOOTREST,L.H | 1 | 34028-011 | 1 | ||
PIN-FOOTREST BAR FIT | 2 | 92043-080 | 2 | ||
PIN COTTER 2.5X16 | 3 | 550D2516 | 2 | ||
BAR-FOOTREST,R.H | 4 | 34028-012 | 1 | ||
BRACKET,FOOTREST,L.H | 5 | 34003-036 | 1 | ||
BRACKET,FOOTREST,R.H | 6 | 34003-037 | 1 | ||
DAMPER RUBBER,FOOTRST | 7 | 92075-140 | 4 | ||
WASHER,PLAIN | 8 | 92022-250 | 2 | ||
STUD,FOOTREST BAR FIT | 9 | 92004-048 | 4 | ||
NUT,CAP AND LOCK,8MM | 10 | 92019-013 | 4 | ||
CAP,FOOTRESTBAR | 11 | 92102-010 | 4 | ||
NUT 10MM | 12 | 315B1000 | 4 | ||
RUBBER,FOOTREST L.H. | 13 | 92076-027 | 1 | ||
RUBBER,FOOTREST R.H. | 14 | 92076-027 | 1 | ||
WASHER-PLAIN (OPT) | 15 | 92022-199 | 2 | ||
PIN | 16 | 92043-1464 | 2 | ||
PIN,COTTER,2.0X12 | 17 | 550D2012 | 2 | ||
BRACKET,REAR FOOTREST | 18 | 33028-011 | 2 | ||
NUT-HEX-FINE,12MM | 19 | 315B1200A | 2 | ||
STAND-MAIN | 20 | 34011-029 | 1 | ||
SHAFT MAIN STAND | 21 | 34019-014 | 2 | ||
SPRING,MAIN STAND | 22 | 34023-012 | 1 | ||
DAMPER RUBB MAIN STAD | 23 | 92075-015 | 1 | ||
NUT,12MM | 24 | 92016-044 | 2 | ||
STAND-SIDE | 25 | 34024-060 | 2 | ||
SPRING,SIDE STAND | 26 | 34025-005 | 1 | ||
BOLT-SIDE STAND | 27 | 92003-079 | 1 | ||
NUT 10MM | 28 | 315B1000 | 1 | ||
DAMPER RUBBER,STD STM | 29 | 92075-157 | 1 | ||
PEDAL,BRAKE | 30 | 43001-044 | 1 | ||
SPRING,BRAKE PEDAL | 31 | 43005-041 | 1 | ||
WASHER,PLAIN | 32 | 92022-195 | 1 | ||
WASHER SPRING 8MM | 33 | 461F0800 | 1 | ||
NUT,CAP AND LOCK,8MM | 34 | 92019-013 | 1 | ||
PIN,REAR BRAKE ROD | 35 | 92043-095 | 1 | ||
ROD,REAR BRAKE | 36 | 43011-017 | 1 | ||
SPRING,BRAKE ROD | 37 | 43012-001 | 1 | ||
PIN-BRAKE ROD | 38 | 92043-065 | 1 | ||
NUT-BRAKE ROD ADJUST | 39 | 92015-042 | 1 | ||
NUT | 40 | 92019-008 | 1 | ||
PIN,BRAKE ROD | 41 | 92027-177 | 1 |
