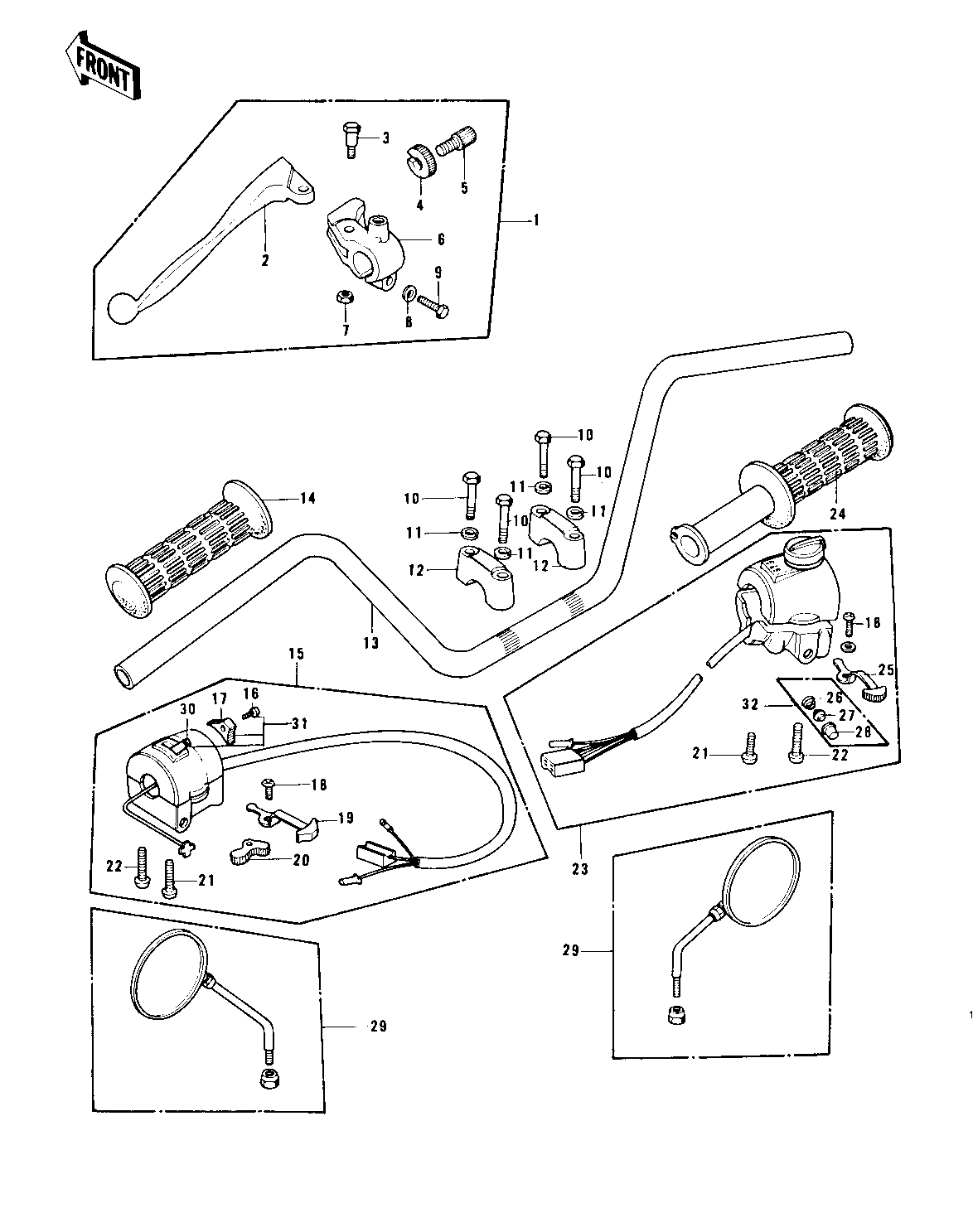

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LEVER ASSY,CLUTCH | 1 | 46076-049 | 1 | ||
LEVER,CLUTCH | 2 | 46092-022 | 1 | ||
BOLT,HEX HEAD | 3 | 92007-047 | 1 | ||
NUT-LOCK | 4 | 46056-005 | 1 | ||
SCREW CABLE ADJUST | 5 | 46055-003 | 1 | ||
HOLDER,CLUTCH LEVER | 6 | 46094-017 | 1 | ||
NUT,LOCK 6MM | 7 | 92017-014 | 1 | ||
WASHER PLAIN 6MM | 8 | 411B0600 | 1 | ||
BOLT 6X22 | 9 | 112B0622 | 1 | ||
BOLT 8X38 | 10 | 92007-002 | 4 | ||
WASHER SPRING 8MM | 11 | 461F0800 | 4 | ||
HOLDER-HANDLEBAR | 12 | 46012-008 | 2 | ||
HANDLEBAR | 13 | 46003-029 | 1 | ||
RUBBER,L.H GRIP | 14 | 46075-028 | 1 | ||
HOUSING ASSY,CONT,L.H | 15 | 46091-1079 | 1 | ||
HOUSING ASSY,CONT,L.H | 15 | 46091-1079 | 1 | ||
SCREW CNTSNK HD 3X8 | 16 | 221B0308A | 1 | ||
KNOB,LIGHTING SW L.H | 17 | 46044-013 | 1 | ||
SCREW PAN HEAD 3X5 | 18 | 220B0305A | 2 | ||
KNOB,LIGHTING SW L.H | 19 | 46043-005 | 1 | ||
BUTTON, HORN PUSH | 20 | 46028-006 | 1 | ||
SCREW PAN HEAD 5X30 | 21 | 220B0530A | 2 | ||
SCREW-PAN-CROS 5X35 | 22 | 220B0535 | 2 | ||
HOUSING ASSY,R.H CONT | 23 | 46091-1033 | 1 | ||
HOUSING ASSY,R.H CONT | 23 | 46091-1033 | 1 | ||
HOUSING ASSY,R.H | 23 | 46091-1039 | 1 | CANADA | |
GRIP ASSY,THROTTLE | 24 | 46019-038 | 1 | ||
KNOB,LIGHTING SW R.H | 25 | 46043-004 | 1 | US | |
SWITCH ASSY,HORN BUTN | 26 | 46031-005 | 1 | ||
SWITCH ASSY,HORN BUTN | 27 | 46079-003 | 1 | ||
SWITCH ASSY,HORN BUTN | 28 | 46028-003 | 1 | ||
REAR VIEW MIRROR | 29 | 56001-1030 | 2 | ||
SWITCH,L.H | 30 | 46089-014 | 1 | ||
L.H GRIP SWITCH KIT | 31 | 99990-530 | AR | INCLUDES REF #16,17,30 | |
SWITCH ASSY,HORN BUTN | 32 | 27010-1009 | AR | INCLUDES REF #26-28 |
