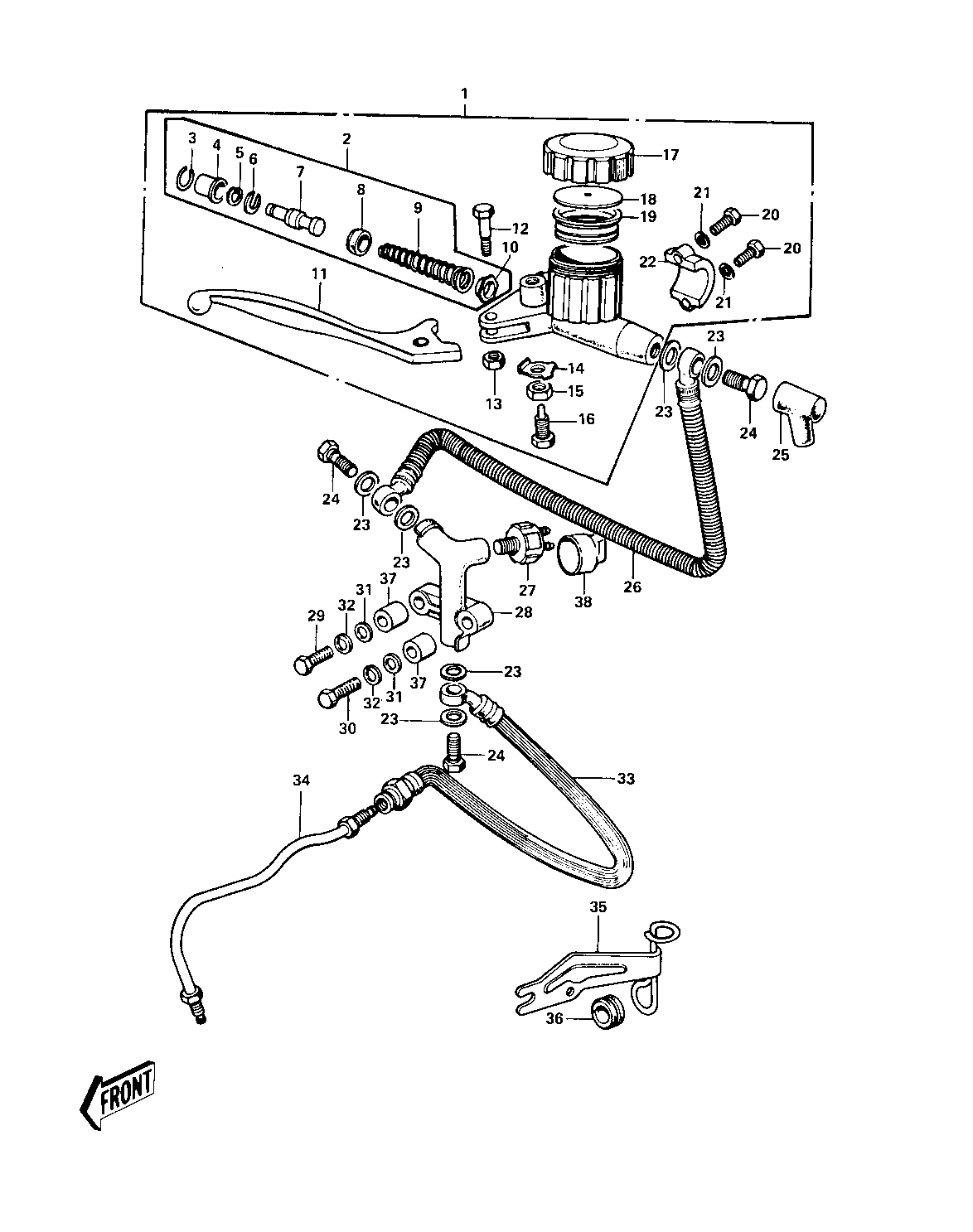

1976 KZ900-A4 - FRONT MASTER CYLINDER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER ASSY,MASTER 1 43015-032 1
CYLINDER ASSY,MASTER 1 43015-032 1
REPAIR SET-MASTER CYL 2 43073-001 1
STOPPER-BOOTS 3 43025-001 1
BOOTS 4 43024-001 1
CIRCLIP,18MM 5 481J1800 1
STOPPER-PISTON 6 43022-001 1
PISTON ASSY 7 43072-001 1
CUP-PRIMARY 8 43019-001 1
SPRING ASSY-RETURN 9 43018-001 1
VALVE ASSY-CHECK 10 43017-001 1
LEVER,FRONT BRAKE 11 43029-003 1
BOLT 12 43033-004 1
NUT 6MM 13 312B0600 1
WASHER-LOCK,8MM 14 43031-001 1
NUT,8MM 15 311B0800 1
BOLT,LEVER ADJUSTING 16 43030-003 1
CAP,OIL CUP 17 43026-003 1
PLATE-MASTER CYLINDER 18 43027-001 1
DIAPHRAGM 19 43028-001 1
BOLT HEX HEAD 6X25 20 110N0625 2
WASHER PLAIN 6MM 21 411B0600 2
HOLDER-MASTER CYL 22 43034-001 1
WASHER-OIL BOLT 23 43067-001 6
BOLT,OIL,L=23 24 43066-001 3
BOOT,DUST 25 49069-001 1
HOSE,FRONT BRAKE 26 43059-022 1
SWITCH-FRONT BRAKE 27 43065-001 1
JOINT,THREE WAY 28 43061-002 1
BOLT HEX HEAD 6X36 29 110N0636 1
BOLT,HEX HEAD,6X45 30 110N0645 1
WASHER SPRING 6MM 31 461F0600 2
WASHER PLAIN 6MM 32 411B0600 2
HOSE,FRONT BRAKE 33 43059-011 1
PIPE,BRIDGE 34 43060-021 1
BRACKET-BRAKE HOSE 35 43063-001 1
GROMMET-HOSE BRACKET 36 43064-001 1
COLLAR 37 92027-241 2
AP,FRONT BRK SWITCH 38 92073-022 C 1
