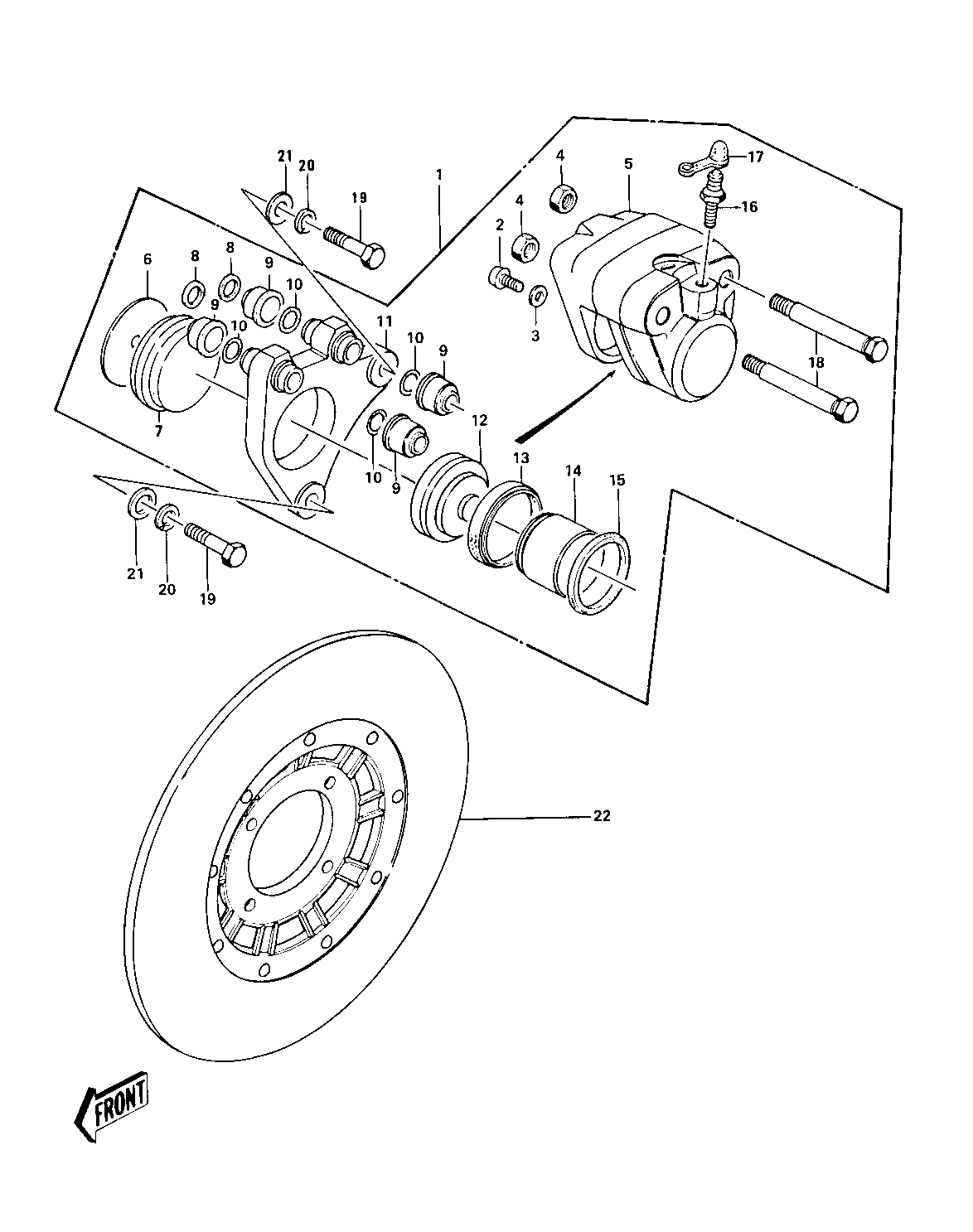

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CALIPER ASSY,FRONT | 1 | 43041-017 | 1 | ||
SCREW PAN HEAD 6X12 | 2 | 220B0612 | 1 | ||
WASHER SPRING 6MM | 3 | 461F0600 | 1 | ||
NUT 10MM | 4 | 315B1000 | 2 | ||
CALIPER | 5 | 43042-008 | 1 | ||
SPACER | 6 | 43040-004 | 1 | ||
PAD B | 7 | 43051-006 | 1 | ||
PLUG | 8 | 43088-002 | 2 | ||
DUST SHILD,SHAFT | 9 | 43052-005 | 4 | ||
"0" RING | 10 | 43053-006 | 4 | ||
HOLDER,CALIPER | 11 | 43044-008 | 1 | ||
PAD A | 12 | 43050-5001 | 1 | ||
PAD SET,(FRONT) | 12 | 43050-5001 | 1 | INCLUDES PAD B | |
DUST SEALD,RUBBER | 13 | 43054-003 | 1 | ||
PISTON,CALIPER | 14 | 43048-006 | 1 | ||
RING,PISTON SEAL | 15 | 43049-002 | 1 | ||
RING,DUST SEAL | 16 | 43085-001 | 1 | ||
BLEEDER SET | 16 | 43085-001 | 1 | INLCUDES REF. #17 | |
CAP,BREEDER | 17 | 43057-003 | 1 | NOT REQUIRED WITH 43085-00 | |
BOLT | 18 | 43045-006 | 2 | ||
BOLT | 19 | 92007-032 | 2 | ||
WASHER SPRING 10MM | 20 | 461F1000 | 2 | ||
WASHER PLAIN 10MM | 21 | 410B1000 | 2 | ||
DISC PLATE,FRONT | 22 | 41080-005 | 1 |
