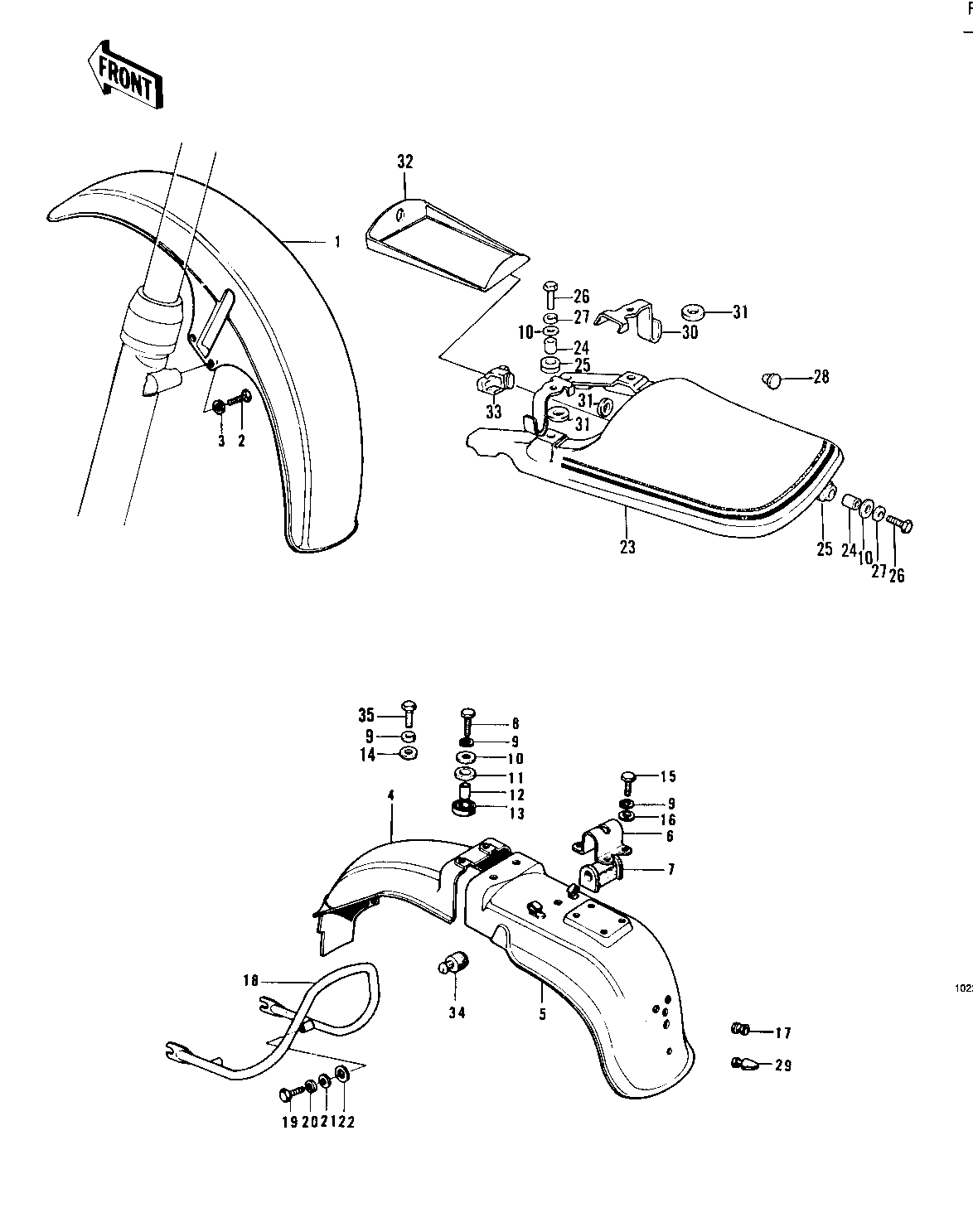

1976 KZ900-A4 - FENDERS/SEAT COVER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FR 1 35003-015 1
BOLT-SMALL-UPSET,8X16 2 110B0816 4
WASHER SPRING 8MM 3 461F0800 4
FENDER-RR 4 35022-137 1
FENDER-RR 5 35022-072 1
BRACKET,REAR FENDER 6 35026-006 1
DAMPER RUBBER,RR FEND 7 92075-132 1
BOLT 6X22 8 110B0622 2
WASHER SPRING 6MM 9 461F0600 6
WASHER,PLAIN,7MM 10 92022-228 4
RUBBER,FENDER COVER 11 92075-174 2
COLLAR,REAR FENDER 12 92027-162 2
DAMPER RUBBER 13 92075-175 2
WASHER PLAIN 14 92022-024 2
BOLT-UPSET,6X16 15 110B0616 4
WASHER PLAIN 6MM 16 411B0600 4
GROMMET HARNESS 10MM 17 92071-019 1
STAY,REAR FENDER 18 35032-022 1
BOLT-UPSET,10X22 19 113B1022 2
WASHER SPRING 10MM 20 461F1000 2
WASHER PLAIN 10MM 21 411B1000 2
WASHER-PL-10.5X26X2.3 22 92022-044 2
COVER,RR FENDER,GREEN 23 53043-013-3M 1
COVER,RR FENDER,BROWN 23 53043-013-3N 1
COLLAR,REAR FENDER 24 92027-162 4
RUBBER,FENDER COVER 25 92075-174 4
BOLT-UPSET 26 116B0625 4
WASHER SPRING 6MM 27 461F0600 4
PLUG,BACKREST HOLE 28 92074-022 2
DAMPER RUBBER 29 92075-266 1
BRACKET,HELMET HOLDER 30 32122-010 2
DAMPER RUBBER 31 92075-175 4
CASE 32 32099-018 1
PLUG,CASE RUBBER 33 92074-024 1
DAMPER RUBBER,RR FEND 34 92075-135 2
BOLT-UPSET 6X14 35 110B0614 2
