Parts Diagrams |

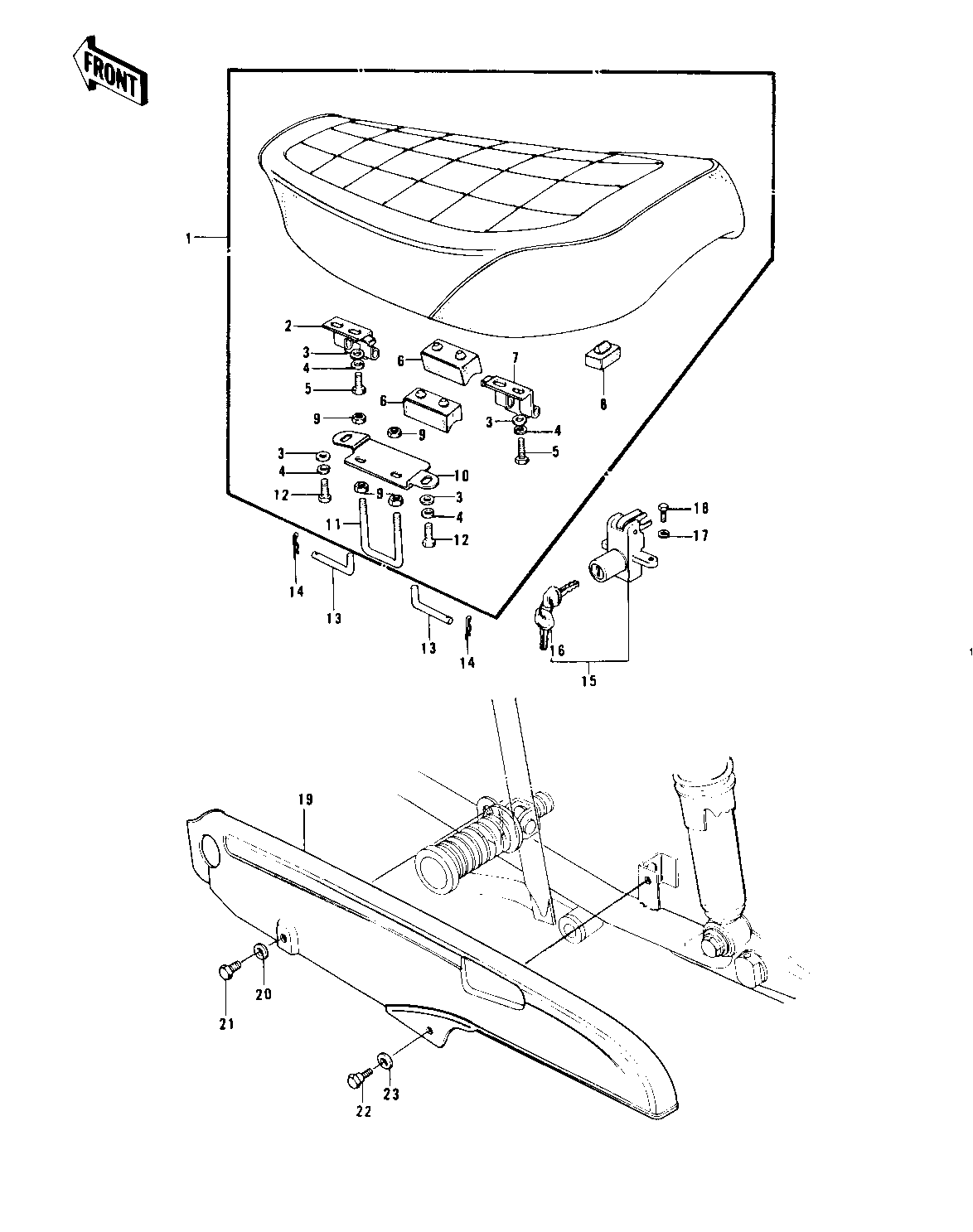

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SEAT-ASSY,DUAL | 1 | 53001-119 | 1 | ||
HINGE,REAR | 2 | 53009-030 | 1 | ||
WASHER PLAIN 6MM | 3 | 411B0600 | 6 | ||
WASHER SPRING 6MM | 4 | 461F0600 | 6 | ||
BOLT-UPSET,6X16 | 5 | 110B0616 | 4 | ||
DAMPER RUBBER,SEAT | 6 | 92075-139 | 3 | ||
HINGE,REAR | 7 | 53009-032 | 1 | ||
DAMPER RUBBER | 8 | 92075-099 | 1 | ||
NUT 6MM | 9 | 311B0600 | 4 | ||
BRACKET,SEAT CATCH | 10 | 53058-003 | 1 | ||
CATCH, SEAT | 11 | 53056-002 | 1 | ||
BOLT-UPSET 6X14 | 12 | 110B0614 | 2 | ||
PIN,DUAL SEAT PIVOT | 13 | 53011-008 | 2 | ||
COTTER PIN | 14 | 92041-003 | 2 | ||
LOCK,SEAT | 15 | 27030-005 | 1 | ||
WASHER SPRING 6MM | 17 | 461F0600 | 1 | ||
BOLT-UPSET,6X12 | 18 | 110B0612 | 1 | ||
CASE-CHAIN | 19 | 36014-061 | 1 | ||
WASHER 6.5X20X1.6T | 20 | 92022-125 | 1 | ||
BOLT HEX HEAD 6X18 | 21 | 110N0618 | 1 | ||
BOLT,HEAX HEAD,6X14 | 22 | 92001-115 | 1 | ||
WASHER,8.5X20X1.6 | 23 | 92022-195 | 1 |
