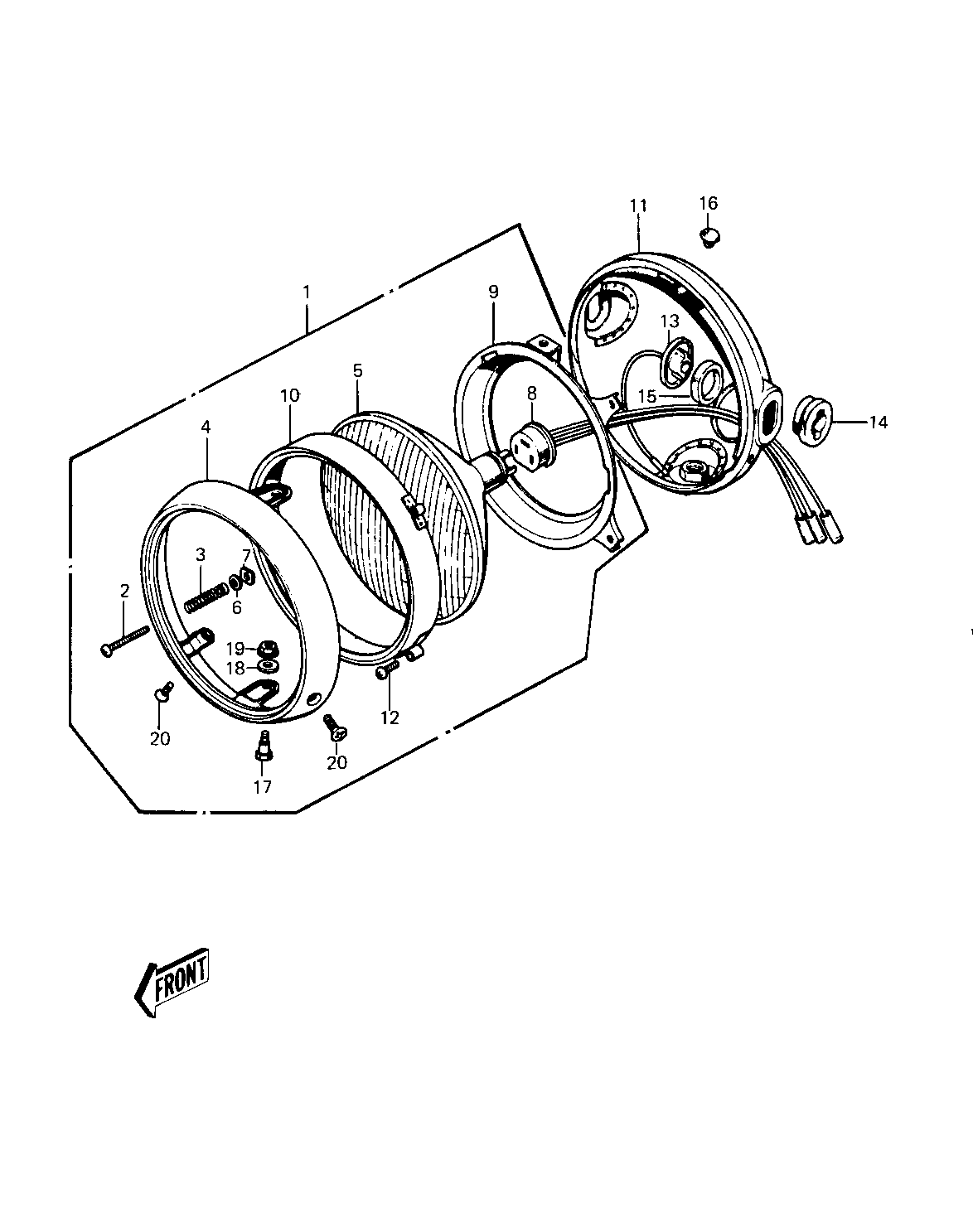

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LAMP UNIT,HEAD | 1 | 23003-017 | 1 | ||
SCREW FORCUS ADJUST | 2 | 23019-021 | 1 | ||
SPRING FOCUS ADJUST | 3 | 23014-005 | 1 | ||
RIM,HEAD LAMP | 4 | 23006-038 | 1 | ||
SEALD BEAM UNIT | 5 | 23007-041 | 1 | ||
WASHER | 6 | 23021-004 | 1 | ||
NUT,4MM | 7 | 23020-018 | 1 | ||
SOCKET ASSY,HEAD LAMP | 8 | 23008-037 | 1 | ||
RING,HEAD LAMP MOUNT | 9 | 23074-001 | 1 | ||
RING,HEAD LAMP MOUNT | 10 | 23072-001 | 1 | ||
BODY-COMP-HEAD LAMP | 11 | 23005-1015-21 | 1 | ||
BODY-COMP-HEAD LAMP | 11 | 23005-1015-21 | 1 | ||
SCREW PAN HEAD 3X12 | 12 | 220B0312A | 2 | ||
COLLAR | 13 | 23076-005 | 2 | ||
DAMPER RUBBER | 14 | 23066-015 | 2 | ||
DAMPER RUBBER | 15 | 23066-016 | 2 | ||
PLUG REAR FENDER RUBB | 16 | 92074-006 | 1 | ||
SCREW-PAN HEAD,5X12 | 17 | 23019-023 | 2 | ||
WASHER-PLAIN,5MM | 18 | 23021-012 | 2 | ||
NUT,HEAD LAMP RIM FIT | 19 | 23020-020 | 2 | ||
SCREW,PAN HEAD,5X14 | 20 | 23019-022 | 2 |
