Part Item Information

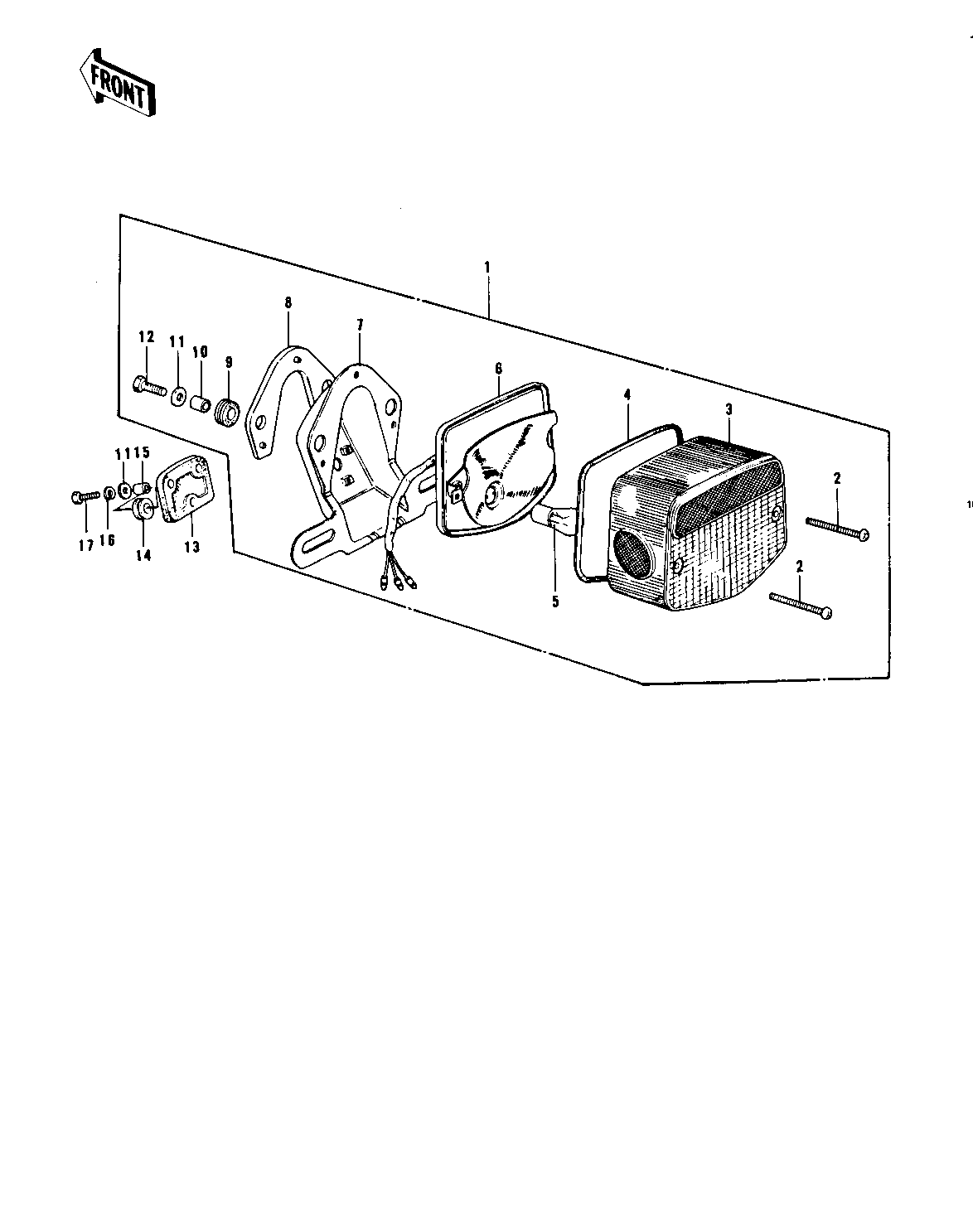

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP ASSY,TAIL 1 23024-067 1
SCREW-PAN-CROS 2 220E0460A 2
LENS,TAIL LAMP 3 23026-034 1
GASKET,TAIL LENS 4 23028-021 1
BULB,12V 32/3CP 5 92069-059 1
CASE,TAIL LIGHT 6 23027-041 1
BKT,LICENSE PLATE 7 23036-046 1
DAMPER RUBBER 8 23066-023 1
DAMPER RUBBER 9 23066-020 2
COLLAR,6.8X10X8.5 10 92027-129 2
WASHER 6.5X20X1.6T 11 92022-125 5
BOLT 6X22 12 110B0622 2
DAMPER RUBBER,RR FEND 13 35039-004 1
DAMPER RUBBER,RR FEND 14 92075-121 3
COLLAR 6.8X10X14.5 15 92027-156 3
WASHER SPRING 6MM 16 461F0600 3
BOLT-UPSET 17 110B0625 3
