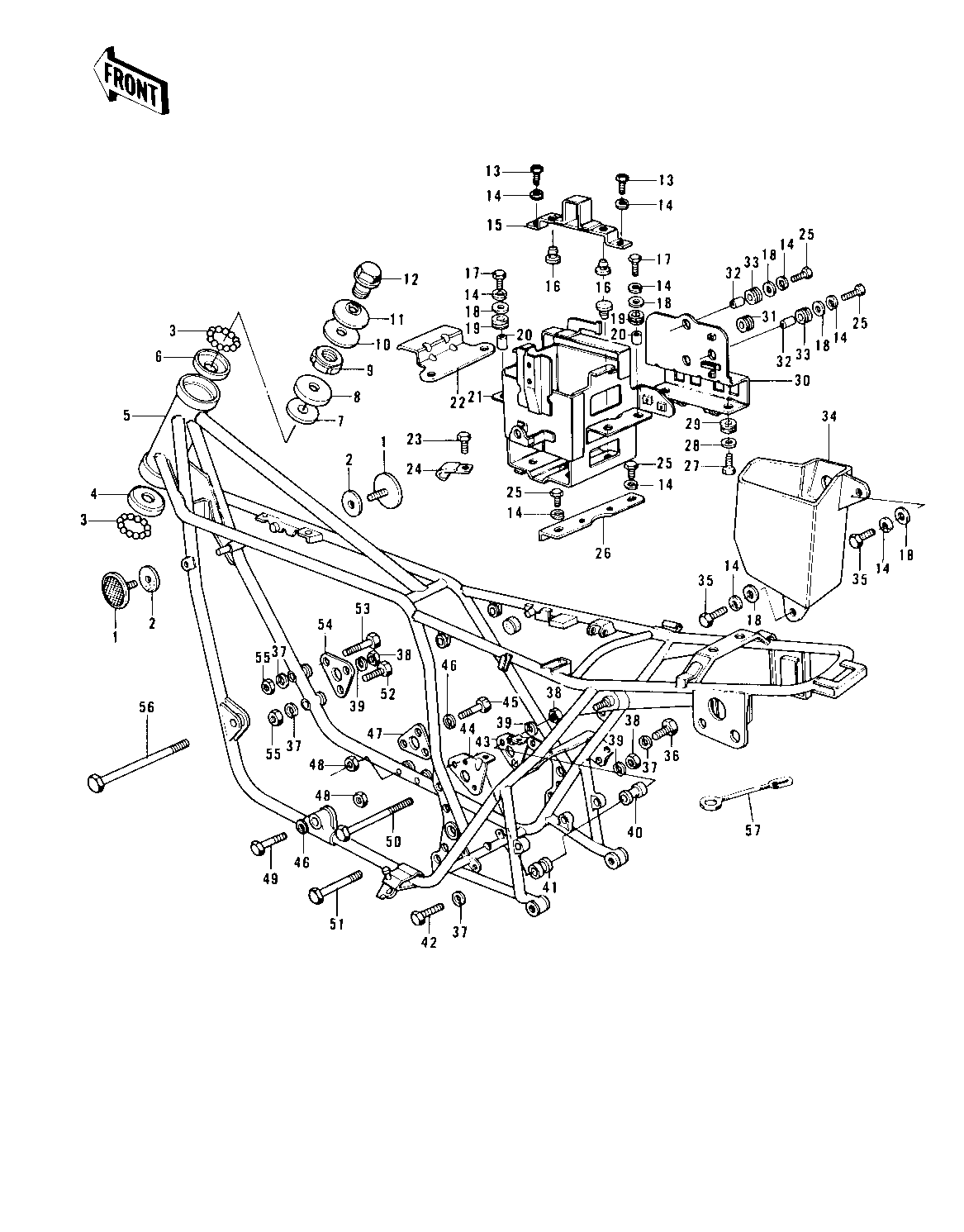

1976 LTD - FRAME/FRAME FITTINGS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REFLECTOR,REFLEX 1 28012-016 2
DAMPER RUBBER,REFLEC 2 92094-011 2
BALL STEEL 1/4' 3 600A0800 39
RACE,STRNG STM BRNG 4 92048-008 1
FRAME 5 32002-154 1
RACE STRNG STEM BERN 6 92048-006 1
CONE,STRNG STM BRNG 7 92047-011 1
CAP, STEERING STEM 8 46098-016 1
NUT STEERING STEM LC 9 92090-007 1
WASHER,WAVE 10 46100-003 1
WASHER,STEERG STM HD 11 92022-230 1
BOLT,STEERG STEM HEA 12 92007-031 1
SCREW PAN HEAD 6X16 13 220B0616 2
WASHER SPRING 6MM 14 461F0600 12
BAND,BATTERY 15 32100-020 1
DAMPER RUBBER 16 92075-078 10
BOLT-UPSET 17 112G0625 4
WASHER 6.5X20X1.6T 18 92022-125 8
DAMPER RUBBER 19 92075-076 4
COLLAR,6.8X10X8.5 20 92027-129 4
CASE,BATTERY 21 32097-039 1
STAY,AIR CLEANER 22 32105-006 1
BOLT,6X10 23 112G0610 1
CLAMP,WIRING HARNESS 24 21126-008 1
BOLT-UPSET,6X16 25 112G0616 4
PLATE,BATTERY CASE 26 32113-003 1
BOLT,HEAX HEAD,6X14 27 92001-115 2
WASHER PLAIN 8MM 28 410B0800 2
DAMPER RUBBER,BATTER 29 92075-161 2
BRACKET,BASE 30 32129-006 1
DAMPER RUBBER 31 92075-051 1
COLLAR 32 92027-165 2
DAMPER RUBBER 33 92075-149 2
CASE,TOOL 34 32098-024 1
BOLT-UPSET 6X14 35 112B0614 2
BOLT 36 92001-1578 3
WASHER SPRING 8MM 37 461F0800 8
NUT,10MM 38 92015-1429 3
WASHER SPRING 10MM 39 461F1000 3
COLLAR,ENG MOUNTING 40 92027-160 1
COLLAR,ENG MOUNTING 41 92027-159 1
BOLT,FLANGED,8X35 42 92001-1577 1
PLATE,ENGINE RR,R.H 43 32030-056 1
PLATE,REAR ENGINE,L. 44 32030-066 1
BOLT,HEX HEAD,12X70 45 92001-1265 1
WASHER SPRING 12MM 46 461F1200 2
PLATE,ENG MOUNT LOWE 47 32030-026 1
NUT,12MM 48 92016-045 2
BOLT,HEX HEAD,12X55 49 92001-1262 1
BOLT,ENGINE MOUNTING 50 92091-023 1
BOLT,ENGINE MOUNTING 51 92003-099 1
BOLT,HEX HEAD,8X59 52 110G0859 1
BOLT-8X63 53 92001-1397 1
PLATE,ENG MOUNT FRON 54 32030-025 1
NUT,8MM 55 311B0800 2
BOLT,ENGINE MOUNTING 56 92091-022 1
CLAMP,OVER FLOW PIPE 57 92037-134 2
