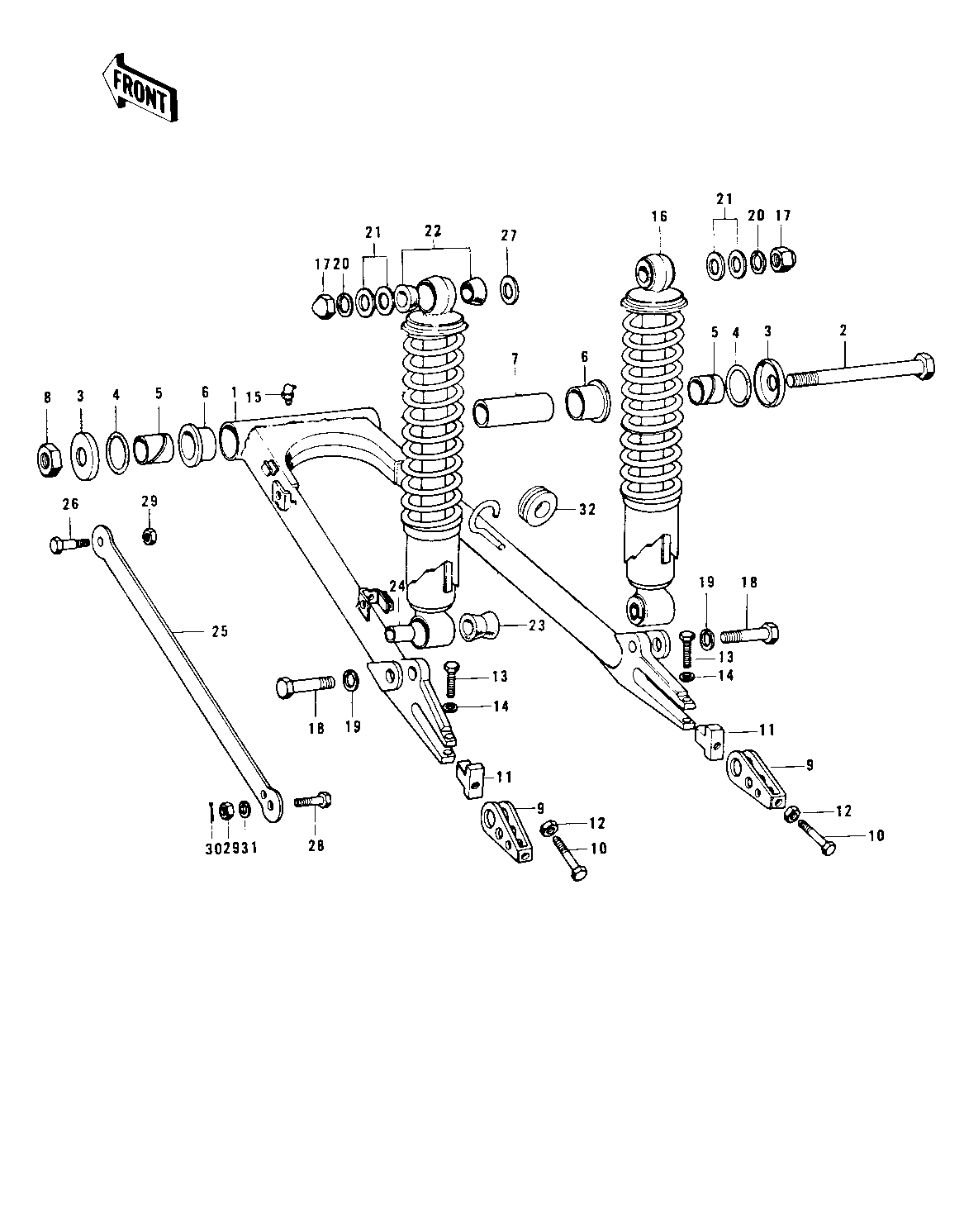

1976 LTD - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWING ARM 1 33001-090 1
SHAFT,SWING ARM PIVO 2 33032-036 1
CAP,SWING ARM 3 33035-007 2
"0" RING,30MM 4 671B2530 2
SLEEVE SWING ARM 5 33034-009 2
BUSHING-SWING ARM 6 33033-009 2
COLLAR,SWING ARM 7 33036-005 1
NUT-SELF LOCKING 8 92019-012 1
ADJUSTER,CHAIN 9 33040-066 2
BOLT-CHN ADJUST 10MM 10 92001-143 2
STOPPER,CHAIN ADJUST 11 33044-001 2
NUT 10MM 12 315B1000 2
BOLT 13 92001-1578 2
WASHER SPRING 8MM 14 461F0800 2
GREASE NIPPLE 15 92005-002 1
SHOCK ABSBR RR 16 45014-116 2
NUT 12MM 17 92020-014 2
BOLT HEX HEAD 10X35 18 113N1035 2
WASHER SPRING 10MM 19 461F1000 2
WASHER SPRING 12MM 20 461F1200 2
WASHER PLAIN 12MM 21 410B1200 4
BUSH SHCK ABS RUBBER 22 45017-001 4
BUSHING,SHCK ABSORBE 23 45017-011 2
BUSH SHCK ABS PVT SF 24 45016-003 2
TORQUE LINK 25 43007-047 1
BOLT,FR TORQUE LINK 26 92003-225 1
WASHER,PLAIN 27 92022-326 1
BOLT,RR TORQUE LINK 28 92003-197 1
NUT,12MM 29 42045-021 2
PIN COTTER 3.0X25 30 550D3025 1
WASHER SPRING 10MM 31 461F1000 1
DAMPER RUBBER 32 43064-007 1
