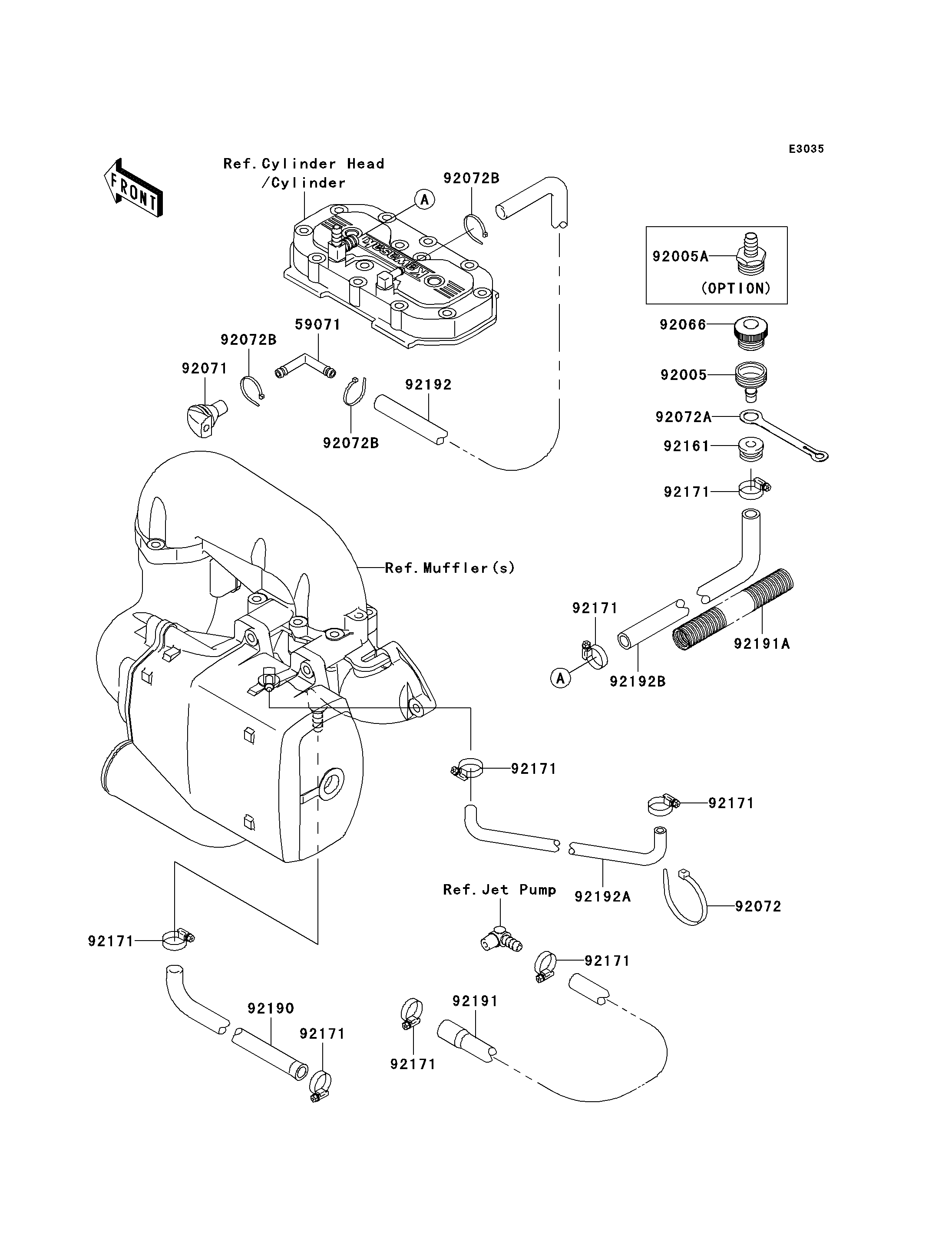

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| JOINT | 59071 | 59071-3736 | 1 | ||
| FITTING,FLUSH | 92005 | 92005-3744 | 1 | ||
| FITTING,FLUSH | 92005A | 92005-3748 | 1 | (OPTION) | |
| PLUG | 92066 | 92066-3787 | 1 | ||
| GROMMET | 92071 | 92071-3815 | 1 | ||
| BAND,L=188.85 | 92072 | 92072-0105 | 1 | ||
| BAND | 92072A | 92072-3877 | 1 | ||
| BAND,L=100.08 | 92072B | 92072-3882 | 3 | ||
| DAMPER | 92161 | 92161-0016 | 1 | ||
| CLAMP | 92171 | 92171-3714 | 8 | ||
| TUBE,9X16X450 | 92190 | 92190-3914 | 1 | ||
| TUBE,PUMP-HULL | 92191 | 92191-3722 | 1 | ||
| TUBE,CORRUGATED,19.5X23.8X500 | 92191A | 92191-3884 | 1 | ||
| TUBE,7X12X1180 | 92192 | 92192-3704 | 1 | ||
| TUBE,MUFFLER-HULL | 92192A | 92192-3720 | 1 | ||
| TUBE,HEAD-FLUSH | 92192B | 92192-3744 | 1 |
