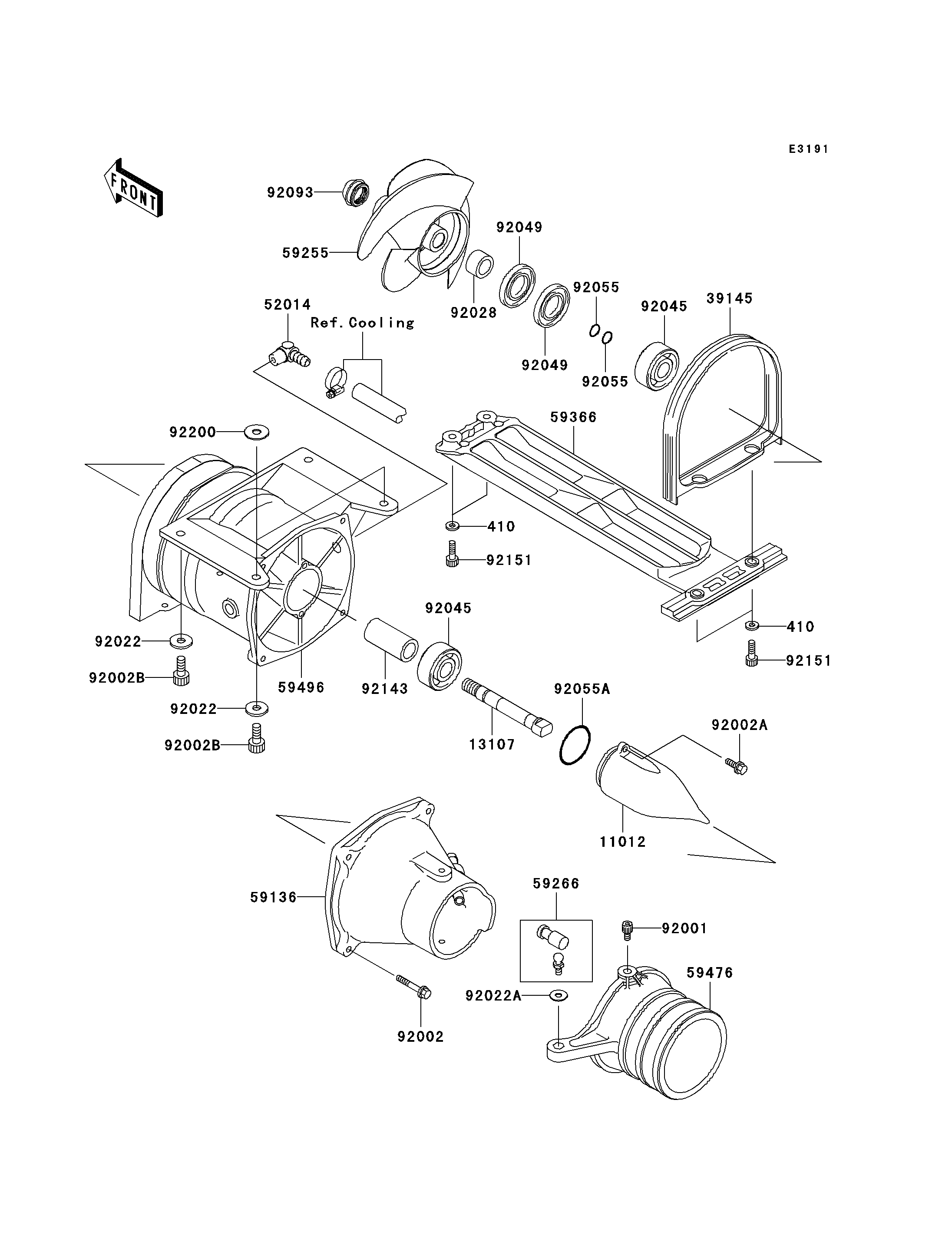

2011 JET SKI® 800 SX-R™ - Jet Pump

DOWNLOAD PDF
SELECT A NEW PART
410
410
11012
13107
39145
52014
59136
59255
59266
59366
59476
59496
92001
92002
92002A
92002B
92002B
92022
92022
92022A
92028
92045
92045
92049
92049
92055
92055
92055A
92093
92143
92151
92151
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN-SMALL,6MM 410 410S0600 4
CAP,JET PUMP 11012 11012-3712 1
SHAFT,JET PUMP 13107 13107-3721 1
TRIM-SEAL 39145 39145-3735 1
ELBOW 52014 52014-3724 1
NOZZLE-PUMP 59136 59136-3730 1
IMPELLER-COMP 59255 59255-3726 1
JOINT-BALL 59266 59266-3707 1
GRATE 59366 59366-3721 1
NOZZLE-STRG 59476 59476-3713 1
VANE-GUIDE 59496 59496-3752 1
BOLT,SOCKET,6X11 92001 92001-3701 2
BOLT,6X35 92002 92002-3715 4
BOLT,6X16 92002A 92002-3728 2
BOLT,SOCKET,8X20 92002B 92002-3771 4
WASHER,8.4X23X2.5 92022 92022-3744 4
WASHER 92022A 92022-567 1
BUSHING,17X25X15 92028 92028-3717 1
BEARING-BALL,#6303 2RS 92045 92045-3746 2
SEAL-OIL,TBY25X47X6 92049 92049-3714 2
RING-O,13.0X1.9 92055 92055-1011 2
RING-O 92055A 92055-3706 1
SEAL 92093 92093-3749 1
COLLAR,17.4X25.4X53 92143 92143-3708 1
BOLT,SOCKET,6X20 92151 92151-3774 4
WASHER,8.5X25X1.5 92200 92200-3717 2
