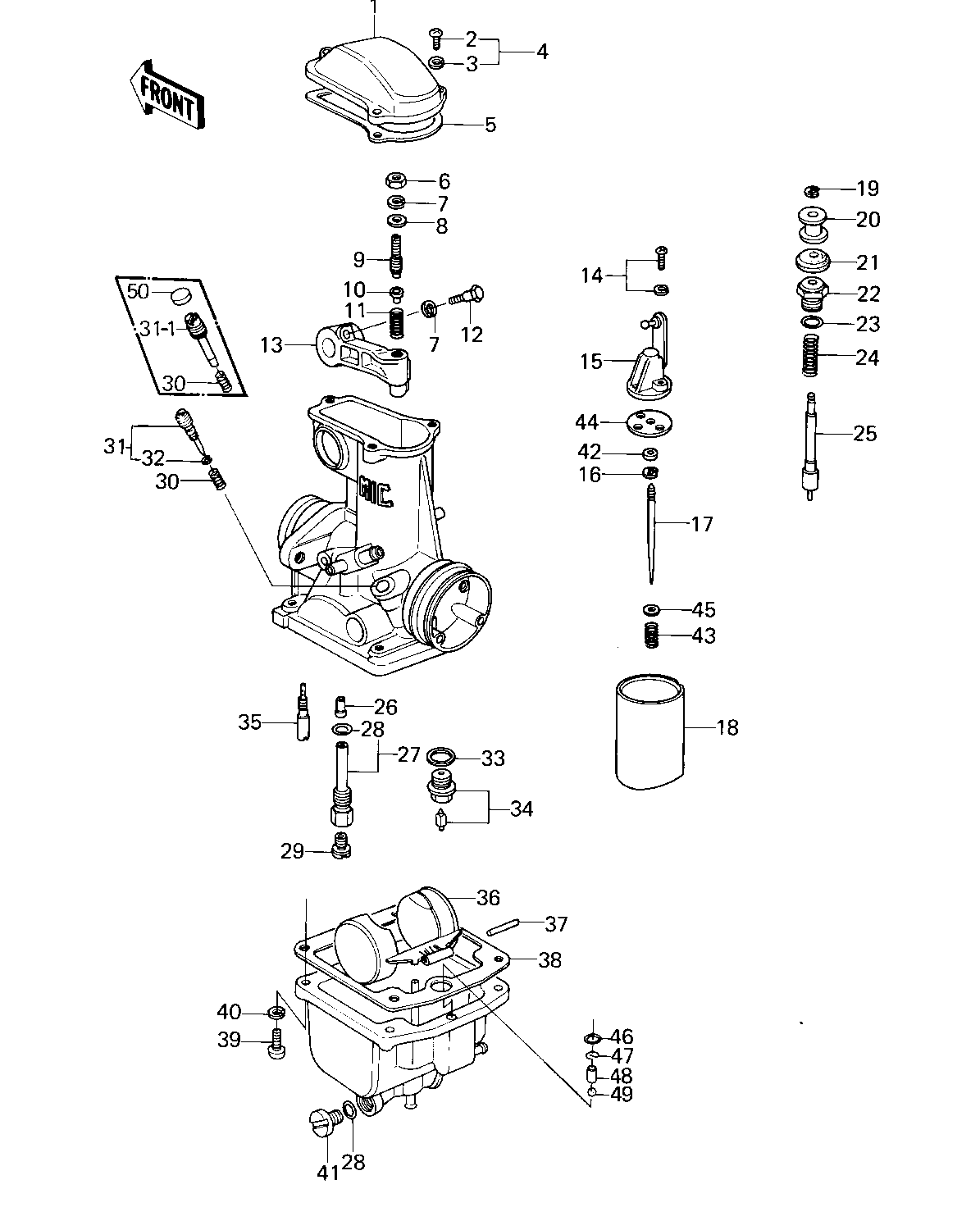

1979 KZ1000 - CARBURETOR PARTS(U.S.A.)('79-'80 A3/A3A/

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOP,MIXING CHAMBER 1 16005-027 4
SCREW-PAN-CROS 2 220B0414 12
WASHER SPRING 4MM 3 461F0400 12
SCREW-PAN-WS-CROS 4 223B0414 12
GASKET,CHAMBER TOP 5 16019-031 4
NUT,5MM 6 16003-013 4
NUT 5MM 6 312B0500 AL
WASHER SPRING 5MM 7 461F0500 8
WASHER,PLAIN 8 16039-016 4
SCREW,SLOTTED 9 16046-012 4
SEAT,SPRING 10 16057-002 4
SPRING 11 16040-026 4
BOLT,HEX HEAD,5X14 12 16067-006 4
LEVER,THROTTLE 13 39075-1001 4
SCREW,PAN HEAD,3X14 14 16033-031 8
BRACKET,THROTTLE VLV 15 11034-1238 4
CIRCLIP 16 16008-010 4
JET NEEDLE,5CN17 17 16009-1032 4 KZ1000-A3/A3A
JET NEEDLE,5CN29 17 16009-1046 4 KZ1000-A4~
VALVE,THROTTLE,CA2.0 18 16025-1026 4
CIRCLIP 19 16076-003 4
COLLAR 20 16073-014 4
CAP,STARTER PLUNGER 21 16039-015 4
CAP,STARTER PLUNGER 22 16012-015 4
"O" RING,9MM 23 670B1509 4
SPRING,STARTER PLUG 24 16013-008 4
PLUNGER,STARTER 25 16016-021 4
NEEDLE JET,AO-4 26 16017-1035 4
PIPE,BLEED 27 49122-1001 4
"0" RING,MAIN JET CO 28 16038-016 8
MAIN JET,#A102.5 29 92063-1028 4
MAIN JET,#A100 29 92063-1033 4 RACING USE ONLY
MAIN JET,#A105R 29 92063-1042 4 RACING USE ONLY
JET-MAIN NO 107.5R 29 92063-073 4 RACING USE ONLY
SPRING-THR STOP SCRE 30 16022-007 4
SCREW,PILOT ADJUSTIN 31 16014-1004 4 KZ1000-A3/A3A
SCREW,PILOT ADJUSTIN 31-1 16014-1020 4 KZ1000-A4~
"O" RING 32 16038-022 4 KZ1000-A3/A3A
WASHER FLOAT VLV SEA 33 16029-004 4
FLOAT VALVE ASSY 34 16030-027 4
PILOT JET,#A15 35 92064-1017 4
FLOAT 36 16031-031 4
FLOAT PIN 37 16032-003 4
GASKET,FLOAT CHAMBER 38 11009-1562 4
SCREW PAN HEAD 4X16 39 220B0416 16
WASHER SPRING 4MM 40 461F0400 16
SCREW,GUIDE 41 16049-007 4
RING,JET NEEDLE 42 92027-1103 4
SPRING,JET NEEDLE 43 92081-1072 4
PLATE,JET NEEDLE 44 13169-1107 4
WASHER,THROTTLE VALV 45 92022-1024 4
"O" RING,CHECK VALVE 46 92055-1059 4
CLAMP,SPRING,CHECK V 47 92037-1123 4
WEIGHT,PUMP,CHECK VL 48 13042-1004 4
BALL,STEEL,CHECK VAL 49 92140-1003 4
PLUG,PILOT SCREW 50 92066-1051 4 KZ1000-A4~
