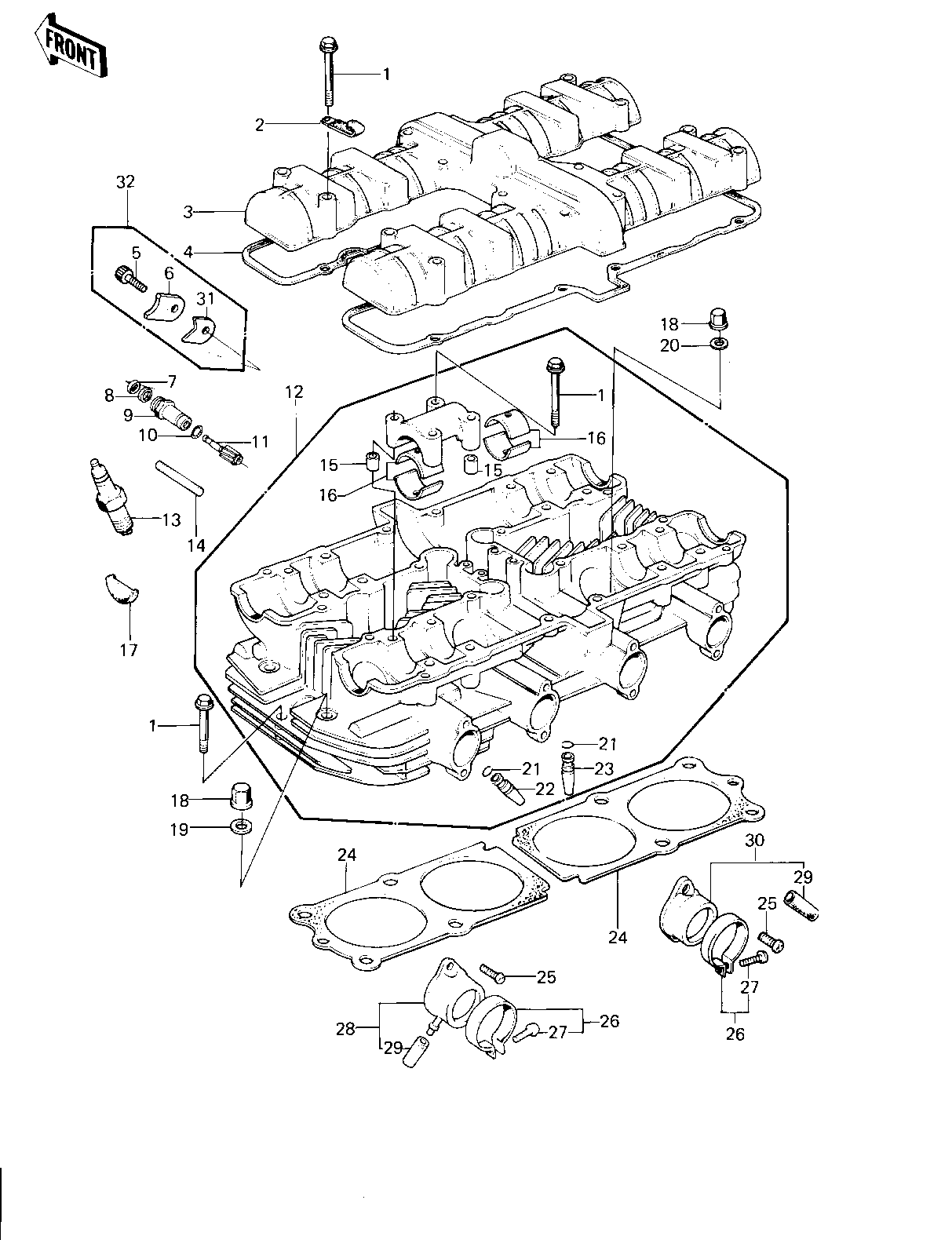

1978 Z1R - CYLINDER HEAD/COVER ('78 D1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,HEX HEAD,6X45 1 92003-092 34
CLAMP,WIRING HARNESS 2 21126-008 2
COVER,CYLINDER HEAD 3 14025-1119 1 FLAT BLACK
GASKET,CYL HEAD COVE 4 11023-006 1
BOLT,6X14 5 120P0614 1
HOLDER,TACHOMETER2.3 6 13091-1008 1
GASKET,TACHOMETER GE 7 92065-103 1
OIL SEAL 8 92050-075 1
GUIDE,TACHOMETER GEA 9 92087-010 1
RING-O,10MM 10 92055-096 1
GEAR,TACHOMETER,10T 11 13223-011 1
CYLINDER HEAD,F.BLK 12 11002-1011-21 1 FLAT BLACK
SPARK PLUG B8ES 13 B8ES 4 NGK B-8
STUD,8X30 14 92004-1069 8
PIN-DOWEL 15 92042-007 8
BUSHING,CAMSHAFT 16 13034-030 16
PLUG,CAM SHAFT 17 92066-017 4
NUT,CYLINDER HEAD 18 92015-076 12
WASHER,PLAIN,10MM 19 92022-215 4 COPPER
WASHER PLAIN 10MM 20 411B1000 8 STEEL
CIRCLIP-VALVE 21 92036-023 8
GUIDE,INLET VALVE 22 12013-009 4
GUIDE,EXHAUST VALVE 23 49002-1002 4
GASKET,CYLINDER HEAD 24 11004-076 2
SCREW PAN HEAD 6X18 25 220B0618 8
CLAMP,HOLDER 26 92037-077 4
SCREW,PAN HEAD 27 92011-037 4
HOLDER,CARBURETOR,L. 28 16065-029 2
RUBBER PLUG 29 92068-006 4
HOLDER-R.H CARBRETOR 30 16065-028 2
HOLDER,TACHOMETR,3.2 31 13091-1009 1
HOLDER SET,TACHOMETE 32 13091-5001 1
