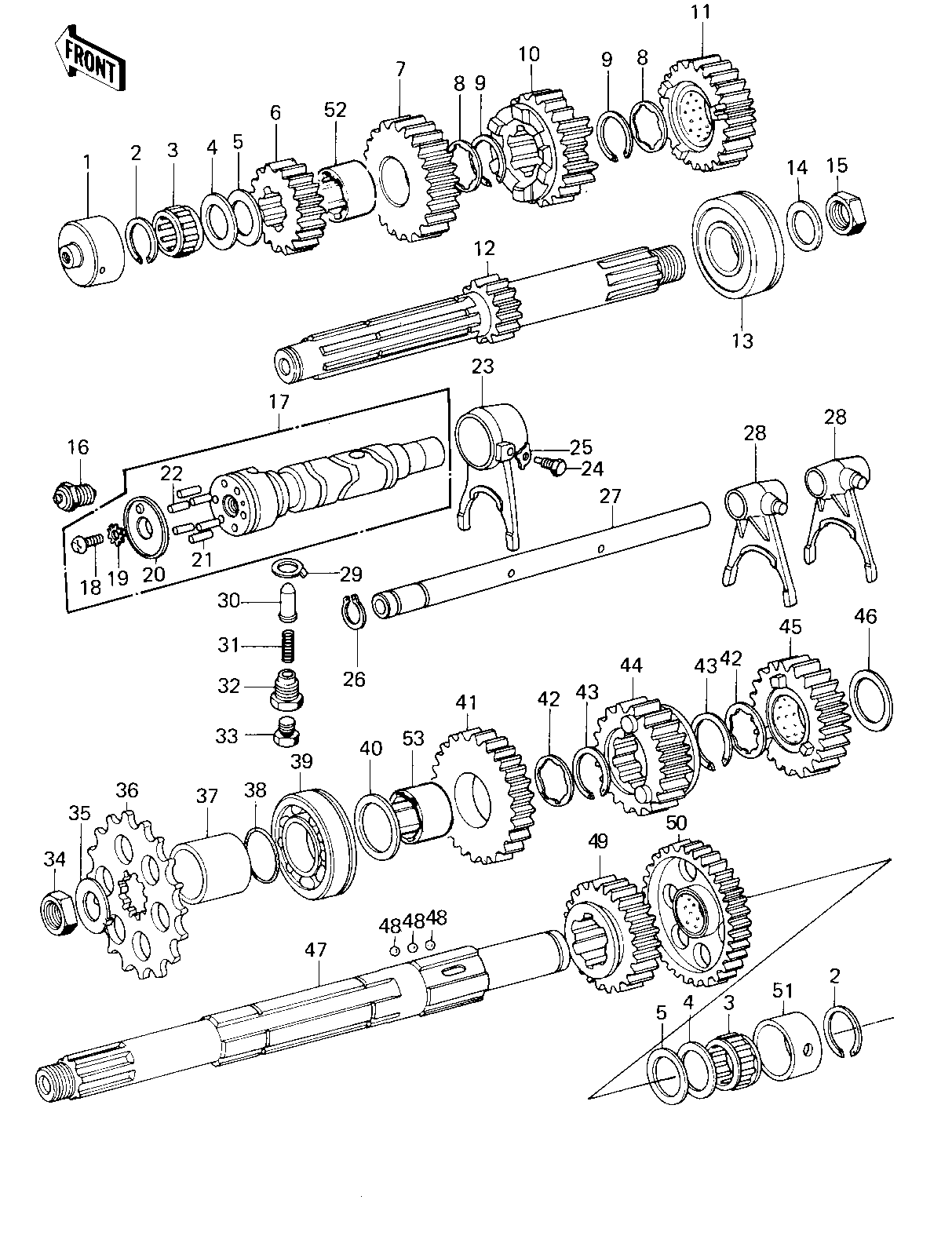

1978 Z1R - TRANSMISSION/CHANGE DRUM ('78 D1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BUSH,DRIVE SHAFT 1 92028-122 1
CIRCLIP,25MM 2 92033-025 2
BEARING,PK223013.8 3 92046-031 2
WASHER,PLAIN,22MM 4 92022-212 2 1.6T
WASHER,PLAIN,22MM 4 92022-213 2 1.2T
SPACER (I.D=22 O.D=3 5 92026-1020 2 1.0T
2ND GER,DRIVE SHAFT 6 13130-032 1 16T
TOP GEAR,DRIVE SHAFT 7 13136-042 1 23T
WASHER,THRUST,26MM 8 92024-042 2
CIRCLIP 28MM 9 480J2800 2
3RD GEAR,DRIVE SHAFT 10 13132-030 1 21T
4TH GEAR,DRIVE SHAFT 11 13134-016 1 21T
SHAFT,DRIVE 12T 12 13127-042 1 12T
BEARING,BALL,5305NSH2 13 92045-022 1
WASHER 14 92125-002 1
NUT,20MM 15 92015-1555 1
SWITCH,NEUTRAL 16 13151-5003 1
DRUM ASSY,GEAR CHANG 17 13239-1010 1
SCREW PAN HEAD 6X14 18 220B0614 1
WASHER LOCK 6MM 19 464G0600 1
PLATE,GEAR CHNG DRUM 20 13142-013 1
PIN GEAR CHANGE DRUM 21 92042-014 5 L=15.8 M/M
PIN-CHANGE DRUM 22 92042-020 1 L=17.8 M/M
FORK,SELECTOR,3RD 23 13140-046 1
PIN SELECT FORK GUID 24 92043-016 1
WASHER LOCK 10MM 25 92031-001 1
CIRCLIP 12MM 26 480J1200 1
ROD,SHIFT 27 13209-011 1
FORK,SELECTOR,4TH&TO 28 13140-045 2
WASHER,LOCK 29 92024-047 1
PIN 30 92043-085 1
SPRING 31 92081-106 1
BOLT,CHG DRUM POSITN 32 92001-112 1
BOLT 33 92001-119 1
NUT 20MM 34 92016-028 1
WASHER,LOCK,20MM 35 92024-044 1
ENGINE SPROCKET,15T 36 13144-1001 1
COLLAR,ENG SPROCKET 37 92027-288 1
"O" RING 38 92055-035 1
BEARING,BL305 256217 39 92045-021 1
WASHER,PLAIN,25MM 40 92022-210 1
2ND GEAR,OUTPUT SHAF 41 13131-038 1
WASHER THRUST,28MM 42 92024-043 2
CIRCLIP,30MM 43 480J3000 2
TOP GEAR,OUTPUT SHAF 44 13129-1214 1 28T
3RD GEAR,OUTPUT SHAF 45 13133-031 1 35T
WASHER,PLAIN,30MM 46 92022-209 1
SHAFT,OUTPUT 47 13128-5006 1
BALL STEEL 3/16' 48 600A0600 3
4TH GEAR,OUTPUT SHAF 49 13135-020 1 29T
LOW GER,OUTPUT SHAFT 50 13129-046 11 38T
BUSH,OUTPUT SHAFT 51 92028-123 1
BUSHING,TOP GEAR 52 92028-1124 1
BUSHING,2ND GEAR 53 92028-1005 1
