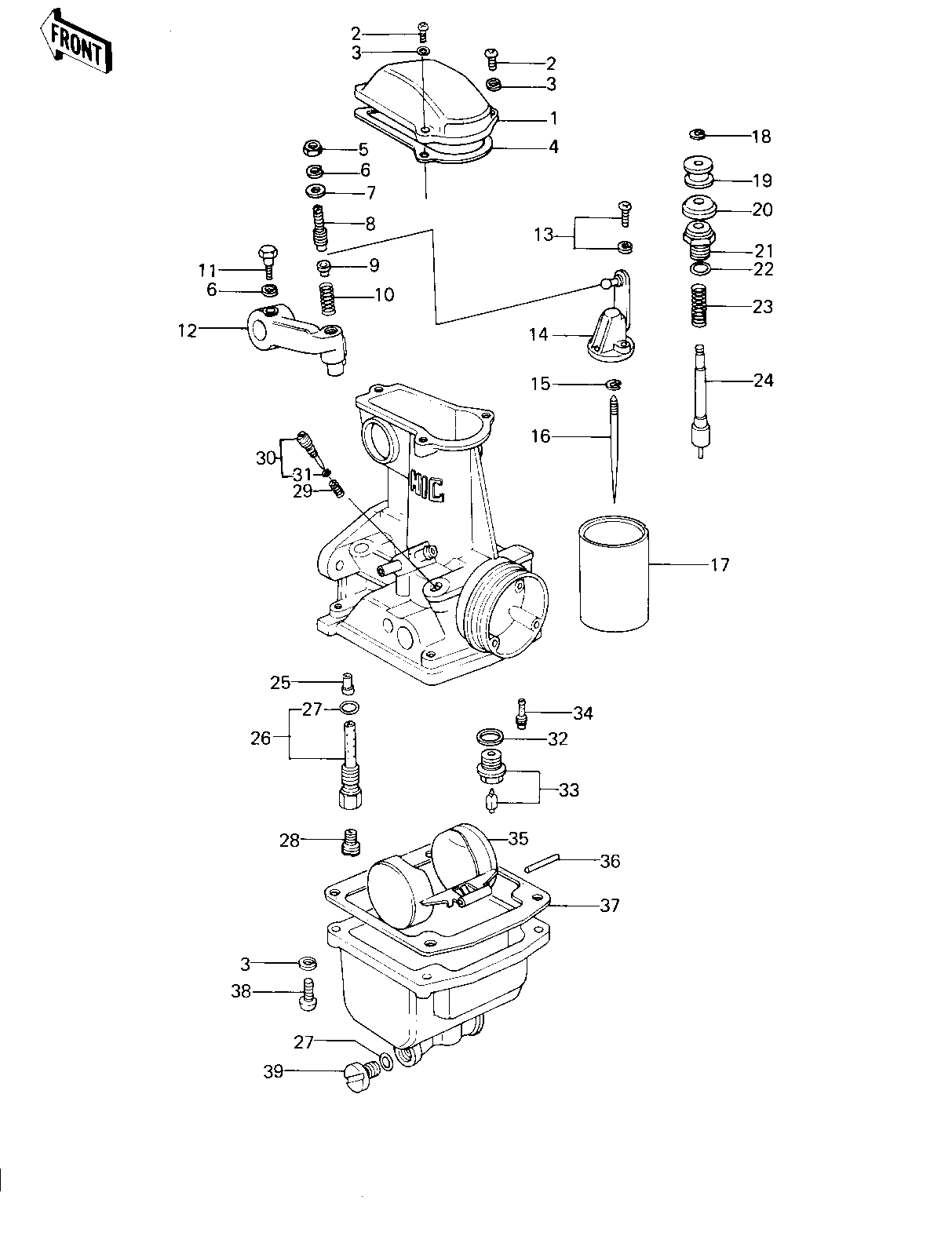

1978 Z1R - CARBURETOR PARTS ('78 D1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOP,MIXING CHAMBER 1 16005-027 4
SCREW-PAN-WS-CROS 2 223B0414 12
WASHER SPRING 4MM 3 461F0400 28
GASKET,CHAMBER TOP 4 16019-031 4
NUT,5MM 5 16003-013 4
WASHER SPRING 5MM 6 461F0500 8
WASHER,PLAIN 7 16039-016 4
SCREW,SLOTTED 8 16046-012 4
SEAT,SPRING 9 16057-002 4
SPRING 10 16040-026 4
BOLT,HEX HEAD,5X14 11 16067-006 4
LEVER,THROTTLE 12 39075-1001 4
SCREW,PAN HEAD,3X14 13 16033-031 8
BRACKET,THROTTLE VAL 14 16007-028 4
CIRCLIP 15 16008-010 4
JET NEEDLE,5CN15 16 16009-1013 4
VALVE,THROTTLE,CA1.5 17 16025-1009 4
CIRCLIP 18 16076-003 4
COLLAR 19 16073-014 4
CAP,STARTER PLUNGER 20 16039-015 4
CAP,STARTER PLUNGER 21 16012-015 4
"O" RING,9MM 22 670B1509 4
SPRING,STARTER PLUG 23 16013-008 4
PLUNGER,STARTER 24 16016-021 4
NEEDLE JET,O-1 25 16017-1011 4
PIPE,BLEED 26 49122-1001 4
"0" RING,MAIN JET CO 27 16038-016 8
JET-MAIN NO 107.5R 28 92063-073 4 S.T.D.
MAIN JET,#A102.5 28 92063-1028 (4 OPTION
MAIN JET,#A105R 28 92063-1042 (4 OPTION
MAIN JET,#110R 28 92063-1038 (4 OPTION
JET-MAIN NO 112.5R 28 92063-075 (4 OPTION
SPRING-THR STOP SCRE 29 16022-007 4
SCREW,PILOT ADJUSTIN 30 16014-1004 4
"O" RING 31 16038-022 4
WASHER FLOAT VLV SEA 32 16029-004 4
FLOAT VALVE ASSY 33 16030-027 4
JET-PILOT NO.15 34 92064-1003 4
FLOAT 35 16031-031 4
FLOAT PIN 36 16032-003 4
GASKET,FLOAT CHAMBER 37 11009-1563 4
SCREW PAN HEAD 4X16 38 220B0416 16
SCREW,GUIDE 39 16049-007 4
