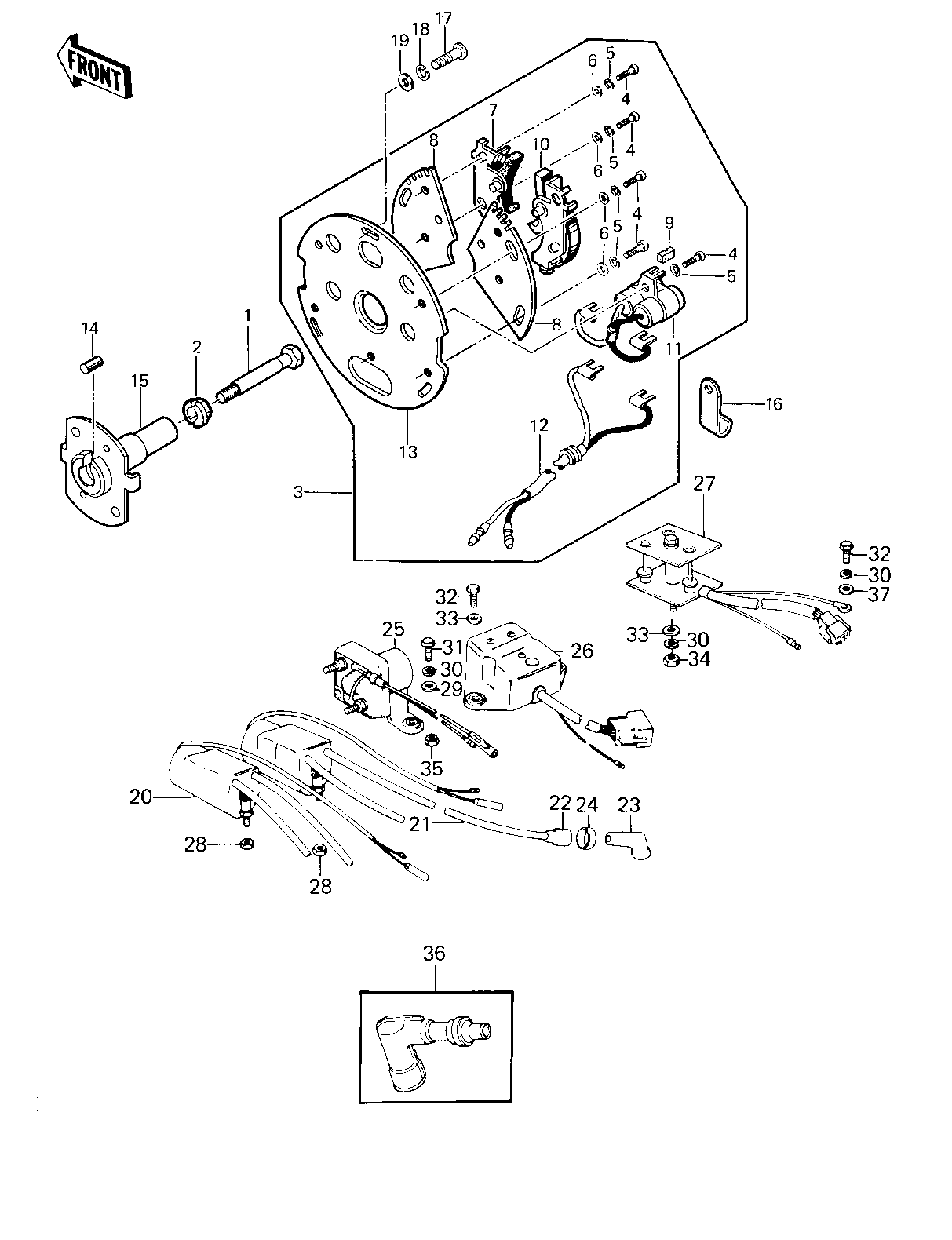

1978 Z1R - IGNITION/REGULATOR/RECTIFIER ('78 D1)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT,SPARK ADVANCER | 1 | 92001-113 | 1 | ||
WASHER,SPARK ADVANCE | 2 | 92022-244 | 1 | ||
BREAKER,CONTACT | 3 | 21135-011 | 1 | ||
SCREW PAN HEAD 4X8 | 4 | 220B0408 | 9 | ||
WASHER SPRING 4MM | 5 | 461F0400 | 9 | ||
WASHER PLAIN 4MM | 6 | 410B0400 | 9 | ||
BREAKER,CONTACT | 7 | 21008-028 | 1 | NO. 2 & 3 | |
PLATE,CONTACT BREAKE | 8 | 21156-010 | 2 | ||
FELT OIL | 9 | 21019-005 | 1 | ||
BREAKER,CONTACT | 10 | 21008-027 | 1 | NO. 1 & 4 | |
CONDENSER | 11 | 21013-035 | 1 | ||
WIRING HARNESS,BRAKE | 12 | 21029-037 | 1 | ||
PLATE,CONTACT BREAKE | 13 | 21021-004 | 1 | ||
PIN-SPRING,4X8 | 14 | 555A0408 | 1 | ||
ADVANCER ASSY,SPARK | 15 | 21148-1003 | 1 | ||
CLAMP,WIRING HARNESS | 16 | 21126-008 | 4 | ||
SCREW PAN HEAD 5X12 | 17 | 220B0512 | 3 | ||
WASHER SPRING 5MM | 18 | 461F0500 | 3 | ||
WASHER PLAIN 5MM | 19 | 411B0500 | 3 | ||
IGNITION COIL | 20 | 21121-1003 | 1 | NO. 1 & 4 | |
COIL,IGNITION,#2&3 | 21 | 21121-1004 | 1 | NO. 2 & 3 | |
GROMMET,HIGH TENSION | 22 | 21131-005 | 4 | ||
CAP SPARK PLUG | 23 | 21160-1014 | 4 | ||
GROMMET,PLUG CAP | 24 | 21131-006 | 4 | ||
SWITCH ASSY,MAGNETIC | 25 | 27010-1023 | 1 | ||
REGULATOR | 26 | 21066-025 | 1 | ||
SET,RECTIFIER | 27 | 99996-1159 | 1 | ||
NUT,LOCK 6MM | 28 | 92017-014 | 3 | ||
WASHER 6.5X22X1.6T | 29 | 92022-237 | 2 | ||
WASHER SPRING 6MM | 30 | 461F0600 | 4 | ||
BOLT-UPSET,6X20 | 31 | 112G0620 | 2 | ||
BOLT-UPSET,6X12 | 32 | 112G0612 | 3 | ||
WASHER PLAIN 6MM | 33 | 410B0600 | 3 | ||
NUT 6MM | 34 | 311B0600 | 1 | ||
NUT,LOCK 6MM | 35 | 92017-014 | 2 | ||
CAP,SPARK PLUG | 36 | 21160-005 | 1 | USE FOR CANADIAN MARKET | |
WASHER PLAIN 4MM | 37 | 410B0400 | 1 |
