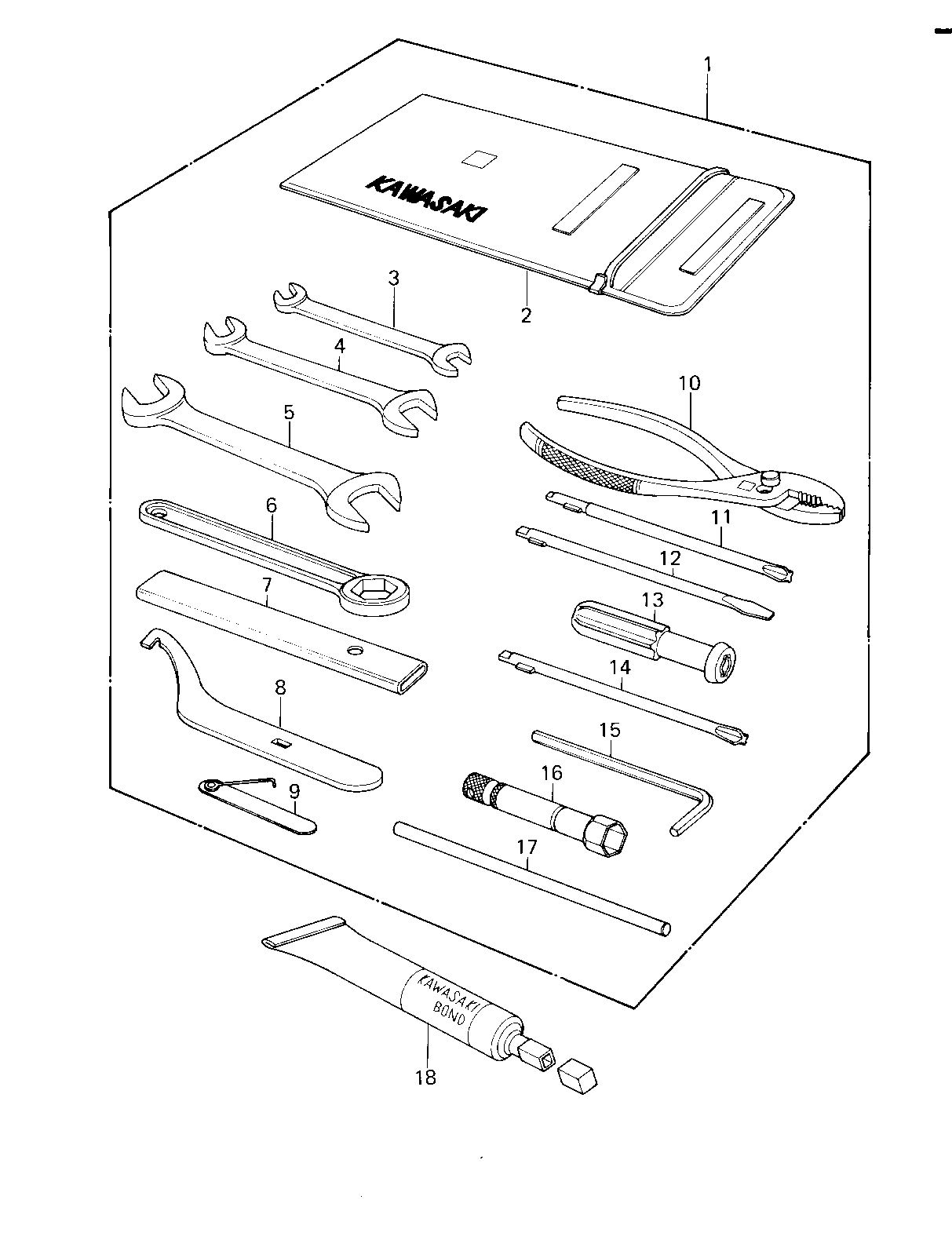

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
*** N.L.A.*** (Canada) 1 56007-1018 1
BAG,TOOL 2 56008-006 1
WRENCH,OPEN,8X10 3 92126-001 1
WRENCH,OPEN END,12X1 4 92126-002 1
TOOL-WRENCH,OPEN END 5 92110-1153 1
TOOL-WRENCH,BOX END, 6 92110-1147 1
TOOL-WRENCH,BOX END,2 7 92111-004 1
WRENCH,HOOK 8 92110-1014 1
GAUGE,THICKENSS 9 92128-001 1
PLIERS,160MM 10 92112-003 1
TOOL-DRIVER 11 92107-1052 1
92107-1052 (Canada) 12 92107-007 1
92106-1001 (Canada) 13 92106-004 1
92107-1002 (Canada) 14 92107-008 1
WRENCH,ALLEN 15 92110-1015 1
WRENCH,SPARK PLUG 16 92108-008 1
BAR,SPARK PLUG WRENC 17 92111-005 1
LIQUID GASKET 18 92104-002 10
