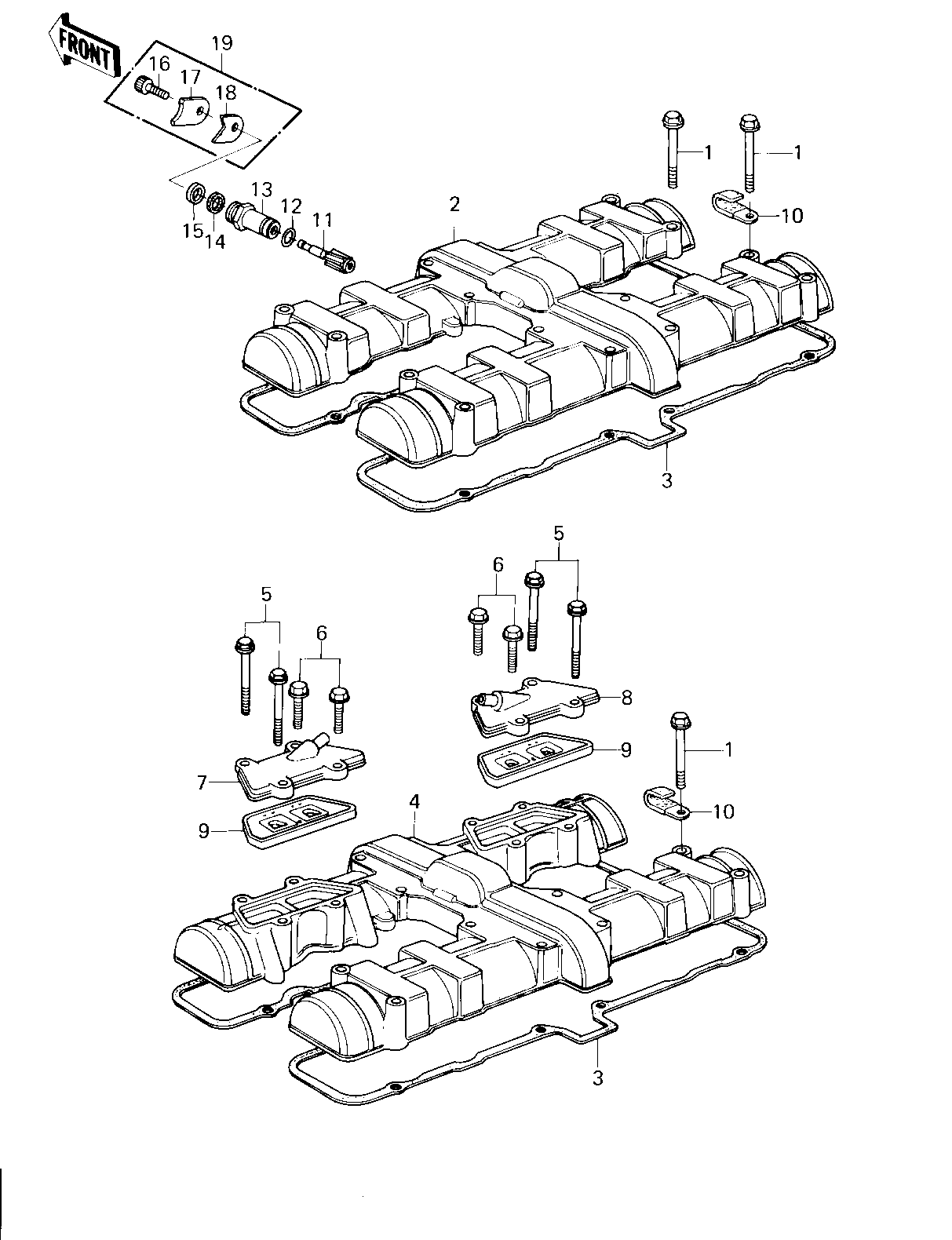

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,HEX HEAD,6X45 1 92001-1160 12
GASKET,CYL HEAD COVE 3 11009-1050 1
COVER,CYLINDER HEAD 4 14025-1118 1 FLAT BLACK
BOLT,HEX HEAD,6X66 5 92001-1161 4
BOLT,HEX HEAD,6X20 6 92001-1162 4
CAP ASSY,L.H 7 14075-5004 1
CAP ASSY,R.H 8 14075-5003 1
VALVE ASSY REED 9 12021-1003 2
CLAMP,WIRING HARNESS 10 21126-008 2
GEAR,TACHOMETER,10T 11 13223-011 1
RING-O,10MM 12 92055-1149 1
GUIDE,TACHOMETER GEA 13 92087-010 1
OIL SEAL 14 92050-075 1
GASKET,TACHOMETER GE 15 92065-103 1
BOLT,6X14 16 120P0614 1
HOLDER,TACHOMETR,3.2 17 13091-1009 1
HOLDER,TACHOMETR,3.2 18 13091-1009 1
HOLDER SET,TACHOMETE 19 13091-5001 1
