Parts Diagrams |

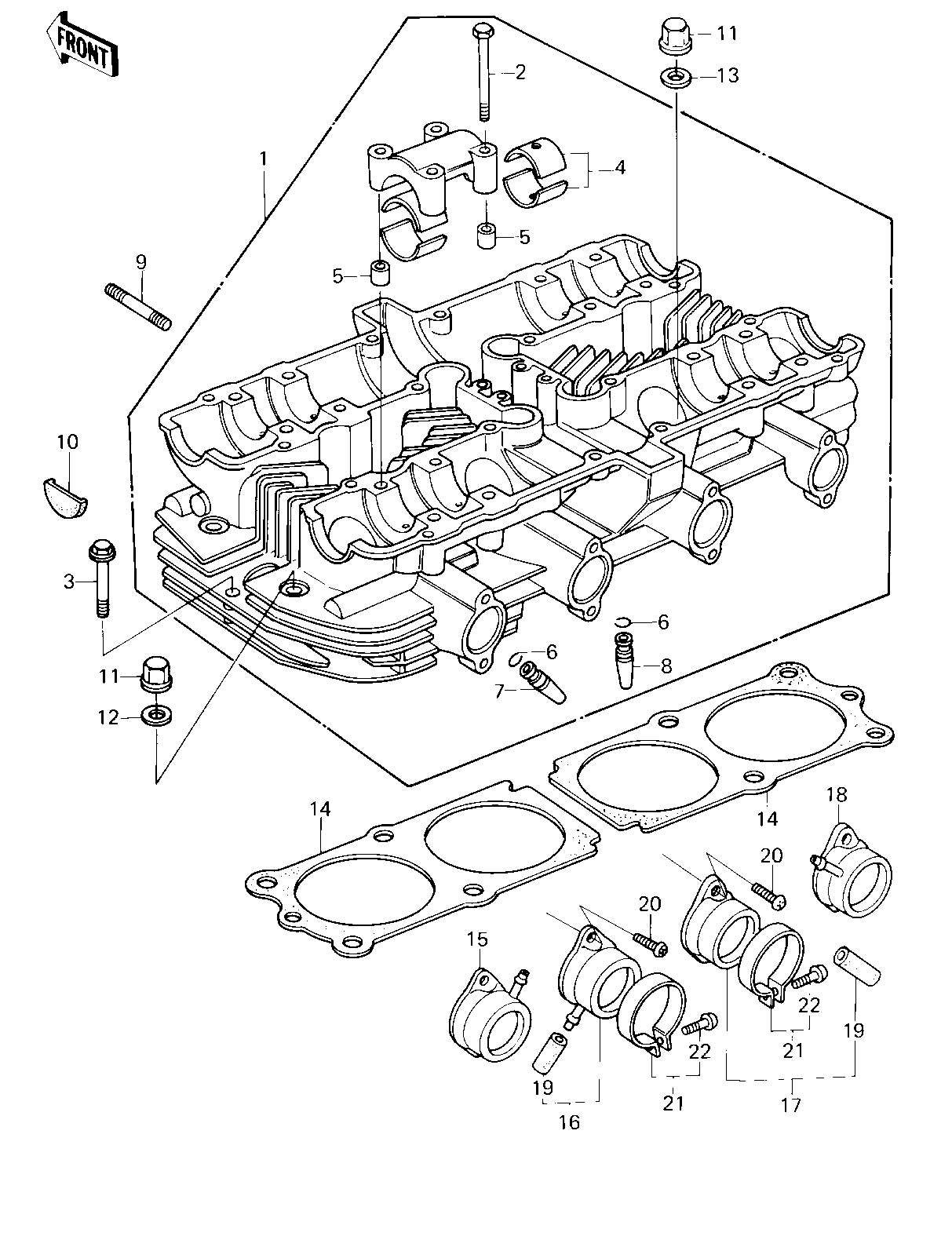

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CYLINDER HEAD | 1 | 11002-1010 | 1 | WITH SECOND AIR PASSAGE | |
BOLT,6X43 | 2 | 92002-1881 | 16 | ||
BOLT,HEX HEAD,6X45 | 3 | 92003-092 | 2 | ||
BUSHING,CAMSHAFT | 4 | 13034-030 | 8 | ||
PIN-DOWEL | 5 | 92042-007 | 8 | ||
CIRCLIP-VALVE | 6 | 92036-023 | 8 | ||
GUIDE,INLET VALVE | 7 | 12013-009 | 4 | ||
GUIDE,EXHAUST VALVE | 8 | 49002-1002 | 4 | ||
STUD,8X30 | 9 | 92004-1069 | 8 | ||
PLUG,CAM SHAFT | 10 | 92066-017 | 4 | ||
NUT,CYLINDER HEAD | 11 | 92015-076 | 12 | ||
WASHER,PLAIN,10MM | 12 | 92022-215 | 4 | COPPER | |
WASHER PLAIN 10MM | 13 | 411B1000 | 8 | STEEL | |
GASKET,CYLINDER HEAD | 14 | 11004-076 | 2 | ||
HOLDER,CARBURETOR,L. | 15 | 16065-029 | 1 | ||
HOLDER,CARBURETOR,L. | 16 | 16065-029 | 1 | ||
HOLDER-R.H CARBRETOR | 17 | 16065-028 | 1 | ||
HOLDER-R.H CARBRETOR | 18 | 16065-028 | 1 | ||
RUBBER PLUG | 19 | 92068-006 | 2 | ||
SCREW PAN HEAD 6X18 | 20 | 220B0618 | 8 | ||
CLAMP,HOLDER | 21 | 92037-077 | 4 | ||
SCREW,PAN HEAD | 22 | 92011-037 | 4 |
CYLINDER HEAD | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | WITH SECOND AIR PASSAGE |
BOLT,6X43 | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 16 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,6X45 | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING,CAMSHAFT | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PIN-DOWEL | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
CIRCLIP-VALVE | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
GUIDE,INLET VALVE | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GUIDE,EXHAUST VALVE | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
STUD,8X30 | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PLUG,CAM SHAFT | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,CYLINDER HEAD | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 12 |
DESTINATION | |
REMARKS |
WASHER,PLAIN,10MM | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | COPPER |
WASHER PLAIN 10MM | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS | STEEL |
GASKET,CYLINDER HEAD | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER,CARBURETOR,L. | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,CARBURETOR,L. | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-R.H CARBRETOR | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-R.H CARBRETOR | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RUBBER PLUG | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X18 | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
CLAMP,HOLDER | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,PAN HEAD | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
