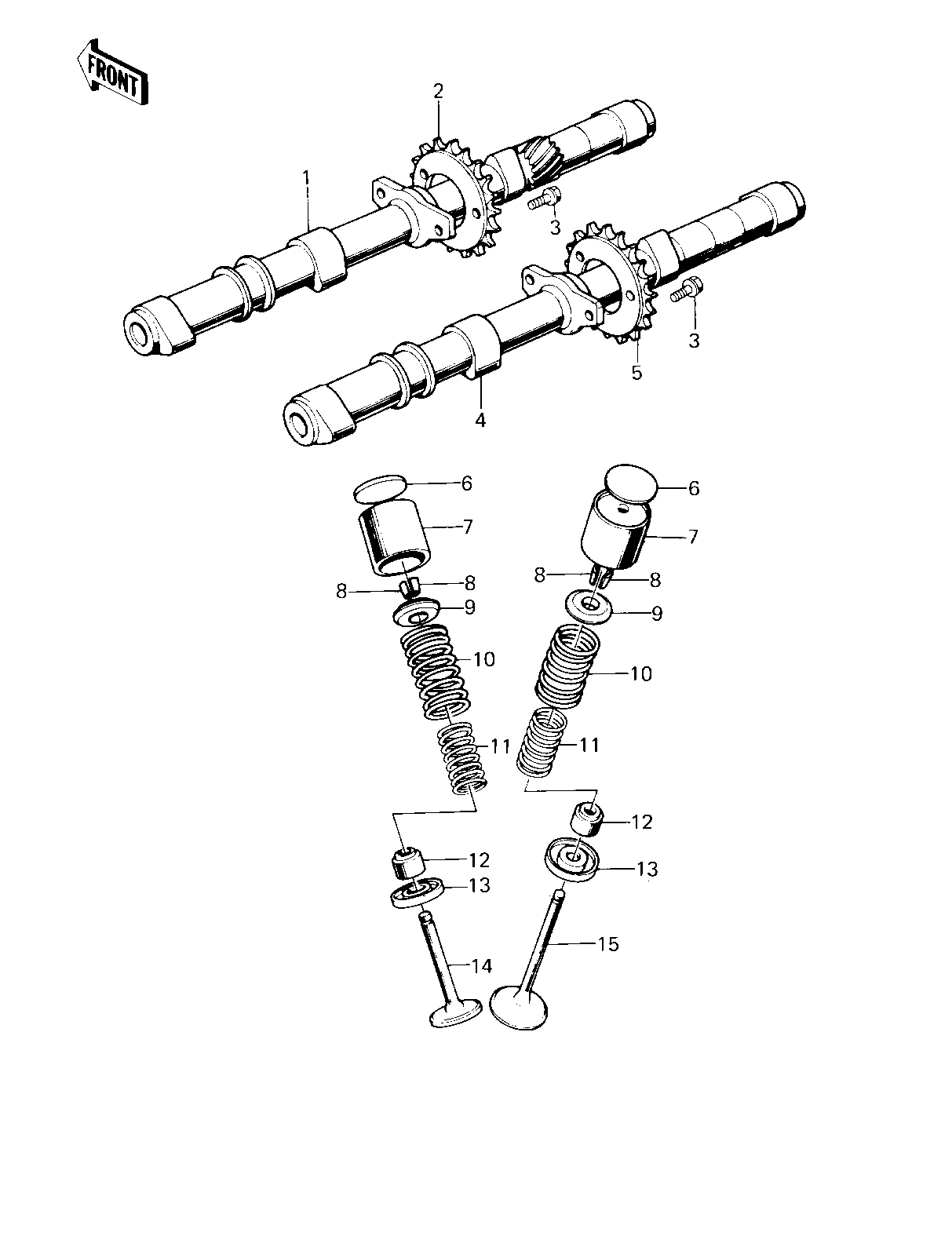

1980 Z1R - CAMSHAFTS/VALVES ('80 D3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAMSHAFT,EXHAUST 1 12044-015 1
SPROCKET,EXH CAM SHF 2 12046-1018 1 32T
BOLT,SPROCKET FITTIN 3 92003-208 6
CAMSHAFT,INLET 4 12044-014 1
SPROCKET,INLET CAM S 5 12046-1017 1 32T
SHIM,TAPPET,2.00T 6 12037-001 AR
SHIM,TAPPET,2.05T 6 12037-002 AR
SHIM,TAPPET,2.10T 6 12037-003 AR
SHIM,TAPPET,2.15T 6 12037-004 AR
SHIM,TAPPET,2.20T 6 12037-005 AR
SHIM,TAPPET,2.25T 6 12037-006 AR
SHIM,TAPPET,2.30T 6 12037-007 AR
SHIM,TAPPET,2.35T 6 12037-008 AR
SHIM,TAPPET,2.40T 6 12037-009 AR
SHIM,TAPPET,2.45T 6 12037-010 AR
SHIM,TAPPET,2.50T 6 12037-011 AR
SHIM,TAPPET,2.55T 6 12037-012 AR
SHIM,TAPPET,2.60T 6 12037-013 AR
SHIM,TAPPET,2.65T 6 12037-014 AR
SHIM,TAPPET,2.70T 6 12037-015 AR
SHIM,TAPPET,2.75T 6 12037-016 AR
SHIM,TAPPET,2.80T 6 12037-017 AR
SHIM,TAPPET,2.85T 6 12037-018 AR
SHIM,TAPPET,2.90T 6 12037-019 AR
SHIM,TAPPET,2.95T 6 12037-020 AR
SHIM,TAPPET,3.00T 6 12037-021 AR
SHIM,TAPPET,3.05T 6 12037-022 AR
SHIM,TAPPET,3.10T 6 12037-023 AR
SHIM,TAPPET,3.15T 6 12037-024 AR
SHIM,TAPPET 3.20T 6 12037-025 AR
TAPPET 7 12032-005 8
SPLIT KEEPER 8 12011-004 16
RETAINER,VALVE SPRIN 9 12009-005 8
SPRING,OUTER VALVE 10 12007-012 8
SPRING,INNER VALVE 11 12007-011 8
OIL SEAL,RV37129.5 12 92049-016 8
SEAT-SPRING,VALVE 13 16007-1024 8
DRUM ASSY REAR BRAKE 14 42005-009 4
VALVE,INTAKE 15 12004-1010 4
