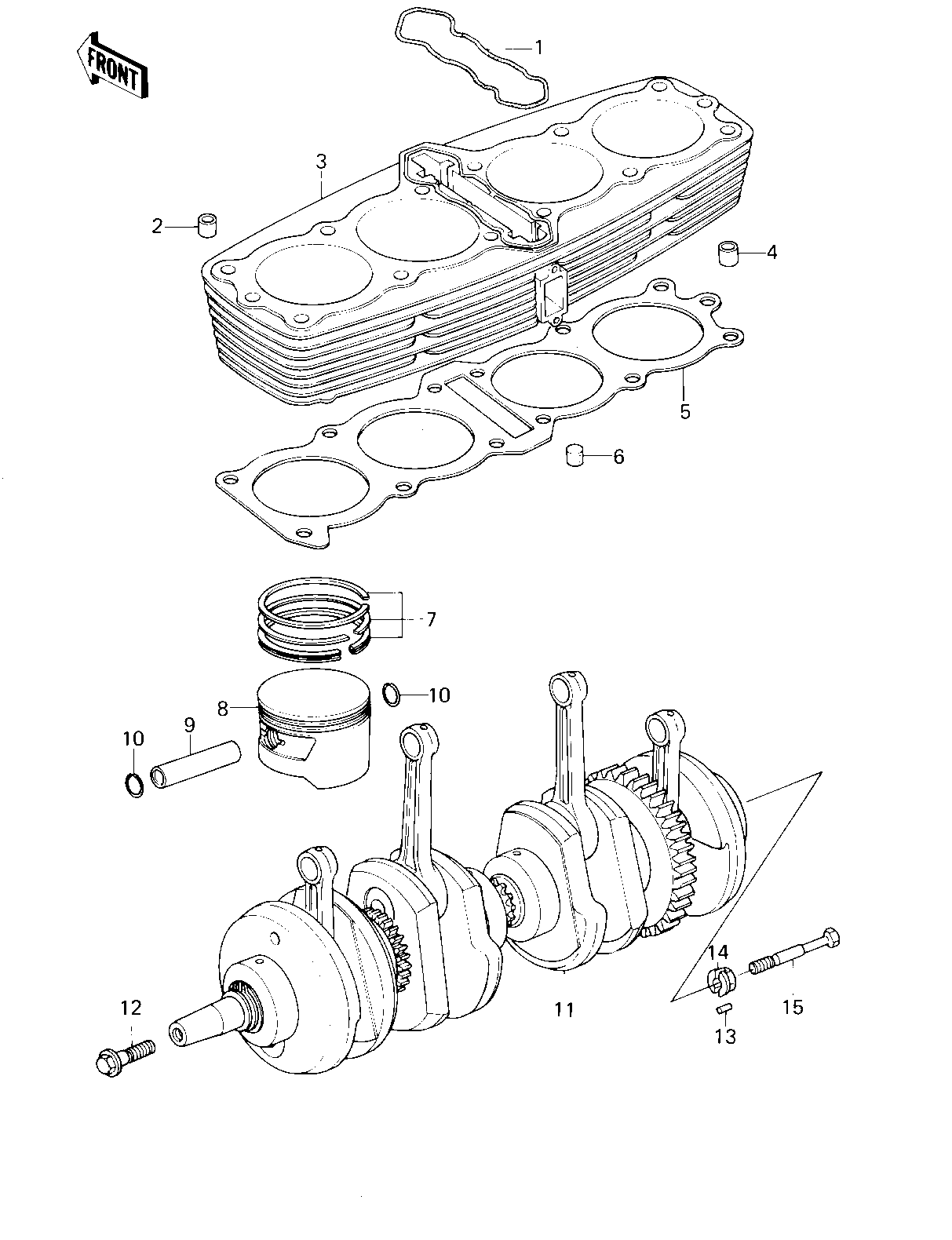

1980 Z1R - CYLINDERS/PISTONS/CRANKSHAFT ('80 D3)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER RUBE 1 92055-062 1
PIN,DOWEL,10X8.2X14 2 92043-1037 2
CYLINDER,FLAT BLACK 3 11005-1009-21 1 FLAT BLACK
PIN,11X14X12.3 4 92043-1266 2
GASKET,CYLINDER BASE 5 11009-030 1
RUBBER PLUG,CYLINDER 6 92074-030 1
RING SET,STD 7 13008-5012 4
RING SET,0.020"O/S 7 13025-5007 4
RING SET,0.040"O/S 7 13024-5008 4
PISTON,S.T.D 8 13001-1005 4
PISTON,0.020 O/S 8 13029-1003 4
PISTON,0.040 O/S 8 13027-1005 4
PIN-PISTON 9 13002-022 4
CIRCLIP,PISTON PIN 10 92036-021 8
CRANKSHAFT ASSY 11 13031-1040 1
BOLT,12X40 12 92001-1146 1
PIN-SPRING,4X8 13 555A0408 1
WASHER,SPARK ADVANCE 14 92022-244 1
BOLT,SPARK ADVANCER 15 92001-113 1
