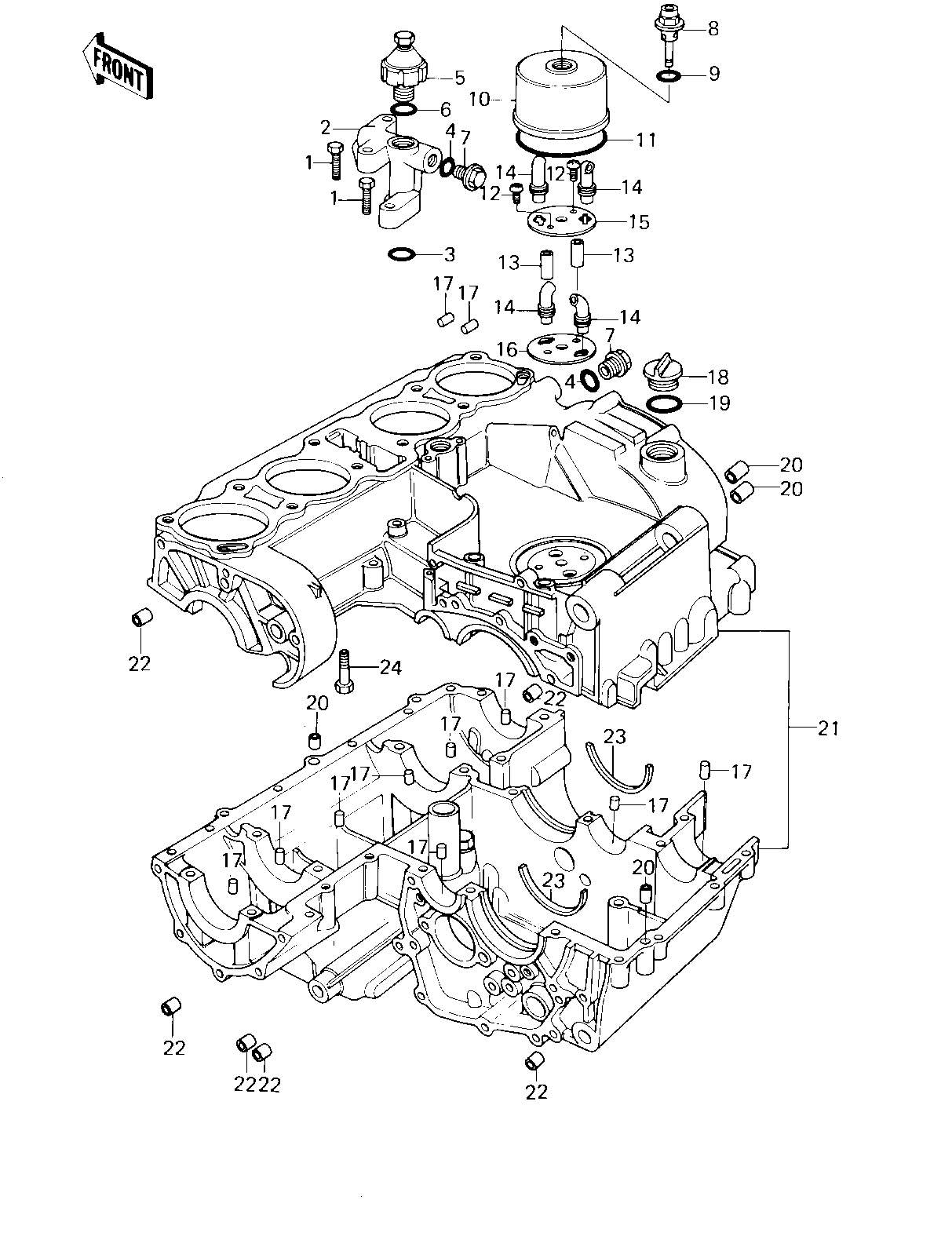

1980 Z1R - CRANKCASE/BREATHER COVER ('80 D3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,HEX HEAD,6X35 1 92001-164 4
PIPE 2 16109-003 1
"0" RING,18MM 3 670B2018 2
"O" RING,15MM 4 670B2015 2
SWITCH,OIL PRESSURE 5 27010-1013 1
"O" RING 6 92055-055 1
PLUG 7 92066-021 2
BOLT,BREATHER FITTIN 8 92003-098 1
"0" RING,16MM 9 670B2016 1
BODY,BREATHER 10 14070-007 1
"O" RING,91MM 11 92055-052 1
SCREW PAN HEAD 6X40 12 220B0640 2
COLLAR,IGNITION COIL 13 92027-276 2
TUBE,BREATHER 14 92059-140 4
PLATE,BREATHER 15 14068-009 1
PLATE,BREATHER 16 14068-007 1
PIN DOWEL 6MM 17 92042-016 11
PLUG,OIL FILLER 18 16115-013 1
"0" RING,31MM 19 92055-049 1
PIN,DOWEL,10X8.2X14 20 92043-1037 4
CRANKCASE SET 21 14001-5030 1 FLAT BLACK
PIN-DOWEL 22 92042-007 8
RING,POSITION 23 14013-1004 2
RING-BEARING SET 23 14013-013 AR
BOLT,HEX HEAD,8X72 24 92003-107 4
