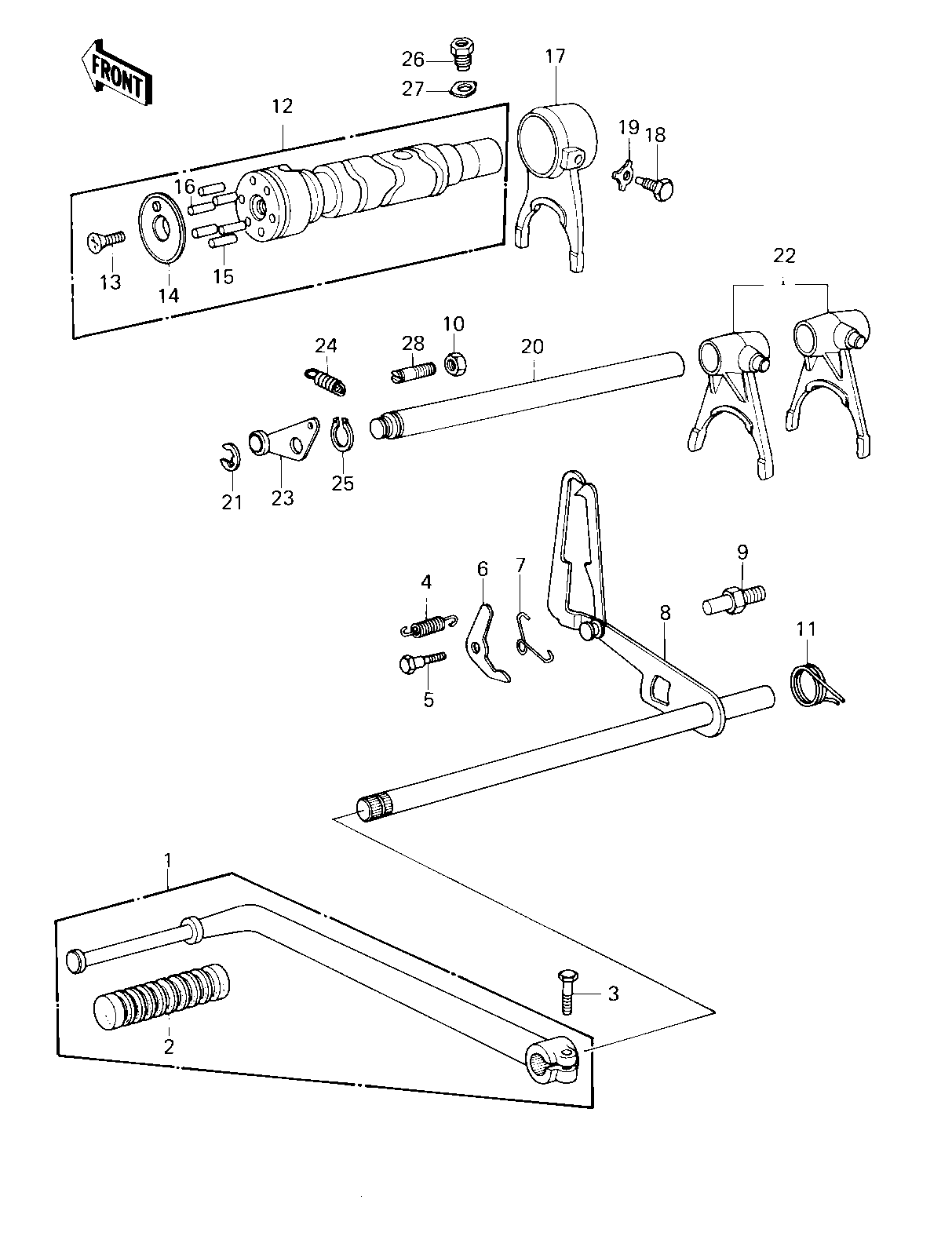

1980 Z1R - GEAR CHANGE MECHANISM ('80 D3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PEDAL ASSY,GEAR CHAN | 1 | 13242-006 | 1 | ||
| RUBBER CHANGE PEDAL | 2 | 13157-004 | 1 | ||
| BOLT-UPSET,6X20 | 3 | 112G0620 | 1 | ||
| SPRING CHNG DRUM LEV | 4 | 92081-051 | 1 | ||
| BOLT,CHANGE DRUM LEV | 5 | 92150-1450 | 1 | ||
| LEVER,GEAR CHNG DRUM | 6 | 13168-024 | 1 | ||
| SPRING,KICK PAWL | 7 | 92083-018 | 1 | ||
| LEVER ASSY GEAR CHNG | 8 | 13161-029 | 1 | ||
| BOLT,RETURN SPRING | 9 | 92001-1401 | 1 | ||
| NUT 6MM | 10 | 312B0600 | 1 | ||
| SPRING,CHG PEDL RTRN | 11 | 92083-028 | 1 | ||
| DRUM ASSY,GEAR CHANG | 12 | 13239-1015 | 1 | ||
| SCREW CNTSNK HD 6X20 | 13 | 221B0620 | 1 | ||
| HOLDER,CHANGE DRUM | 14 | 13091-1088 | 1 | ||
| PIN GEAR CHANGE DRUM | 15 | 92042-014 | 5 | L=15.8M/M | |
| PIN-CHANGE DRUM | 16 | 92042-020 | 1 | L=17.8M/M | |
| FORK,SELECTOR,3RD | 17 | 13140-046 | 1 | ||
| PIN SELECT FORK GUID | 18 | 92043-016 | 1 | ||
| WASHER LOCK 10MM | 19 | 92031-001 | 1 | ||
| ROD,SHIFT | 20 | 49047-1006 | 1 | ||
| CIRCLIP 12MM | 21 | 480J1200 | 1 | ||
| FORK,SELECTOR,4TH&TO | 22 | 13140-045 | 2 | ||
| LEVER,NEUTRAL POSITI | 23 | 13236-1020 | 1 | ||
| SPRING CHNG DRUM LEV | 24 | 92081-051 | 1 | ||
| CIRCLIP 6MM | 25 | 482J6000 | 1 | ||
| BOLT,CHG DRUM POSITN | 26 | 92001-1052 | 1 | ||
| WASHER,LOCK | 27 | 92024-047 | 1 | ||
| BOLT,NEUTRAL POSITIO | 28 | 92001-1301 | 1 |
