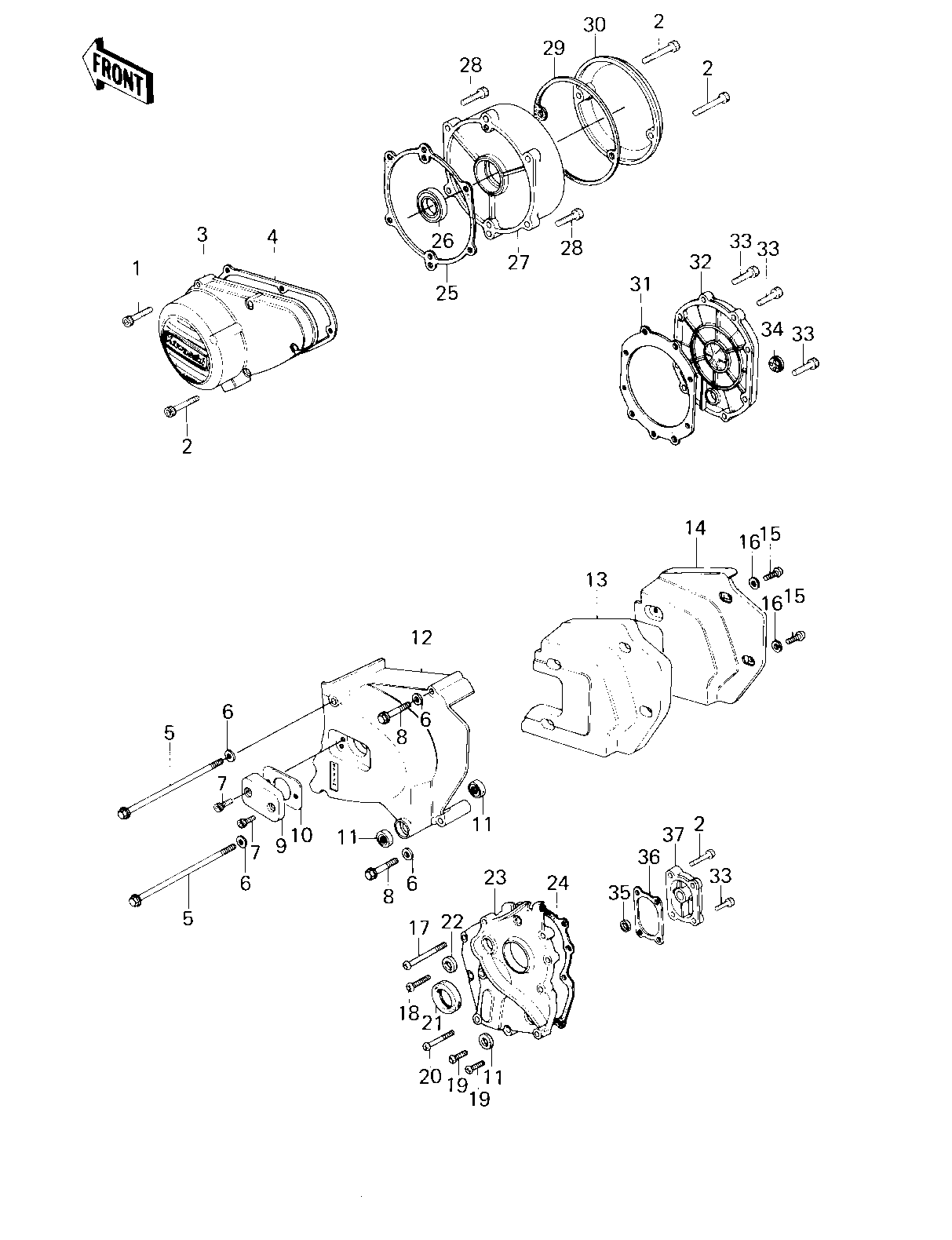

1980 Z1R - ENGINE COVERS ('80 D3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,SOCKET,6X30 1 120P0630 6
BOLT,SOCKET,6X40 2 120P0640 6
COVER,GENERATOR 3 14031-1015 1
GASKET,GENERATOR COV 4 11060-1075 1
BOLT-UPSET,6X125 5 112G06125 2
WASHER PLAIN 6MM 6 410B0600 4
BOLT,SOCKET,6X16 7 120P0616 2
BOLT,6X70 8 110G0670 2
COVER,CLUTCH ADJUSTI 9 14025-1038 1
GASKET,CLUTCH ADJ CO 10 11009-1126 1
OIL SEAL SB12205 11 92049-004 3
COVER,FRONT CHAIN 12 14026-1017 1
ARRESTER,SOUND 13 92075-1064 1
COVER,SOUND ARRESTER 14 14025-1044 1
SCREW PAN HEAD 6X12 15 220B0612 4
WASHER PLAIN 6MM 16 410B0600 4
SCREW PAN HEAD 6X60 17 220B0660 1
SCREW PAN HEAD 6X28 18 220B0628 1
SCREW PAN HEAD 6X22 19 220B0622 6
SCREW PAN HEAD 6X40 20 220B0640 2
OIL SEAL SC325210 21 92050-024 1
OIL SEAL,TC7187 22 92050-048 1
COVER,TRANSMISSION 23 14025-5028 1
GASKET,TRANSMISSION 24 11060-1069 1
GASKET,RH ENGINE COV 25 11060-1071 1
OIL SEAL,S25407R 26 92050-047 1
COVER,R.H ENGINE 27 14032-083 1
BOLT,SOCKET,6X22 28 120P0622 6
GASKET,POINT CAP 29 14050-006 1
COVER,CENTACK BREAKE 30 14025-1037 1
GASKET,CLUTCH 31 14046-024 1
COVER,CLUTCH 32 14032-1006 1
BOLT,6X25 33 120P0625 11
GAUGE,OIL LEVEL 34 52015-004 1
OIL SEAL,SC22325 35 92049-1048 1
GASKET,KICK COVER 36 14046-025 1
COVER,KICKSTARTER, 37 14032-075-21 1
