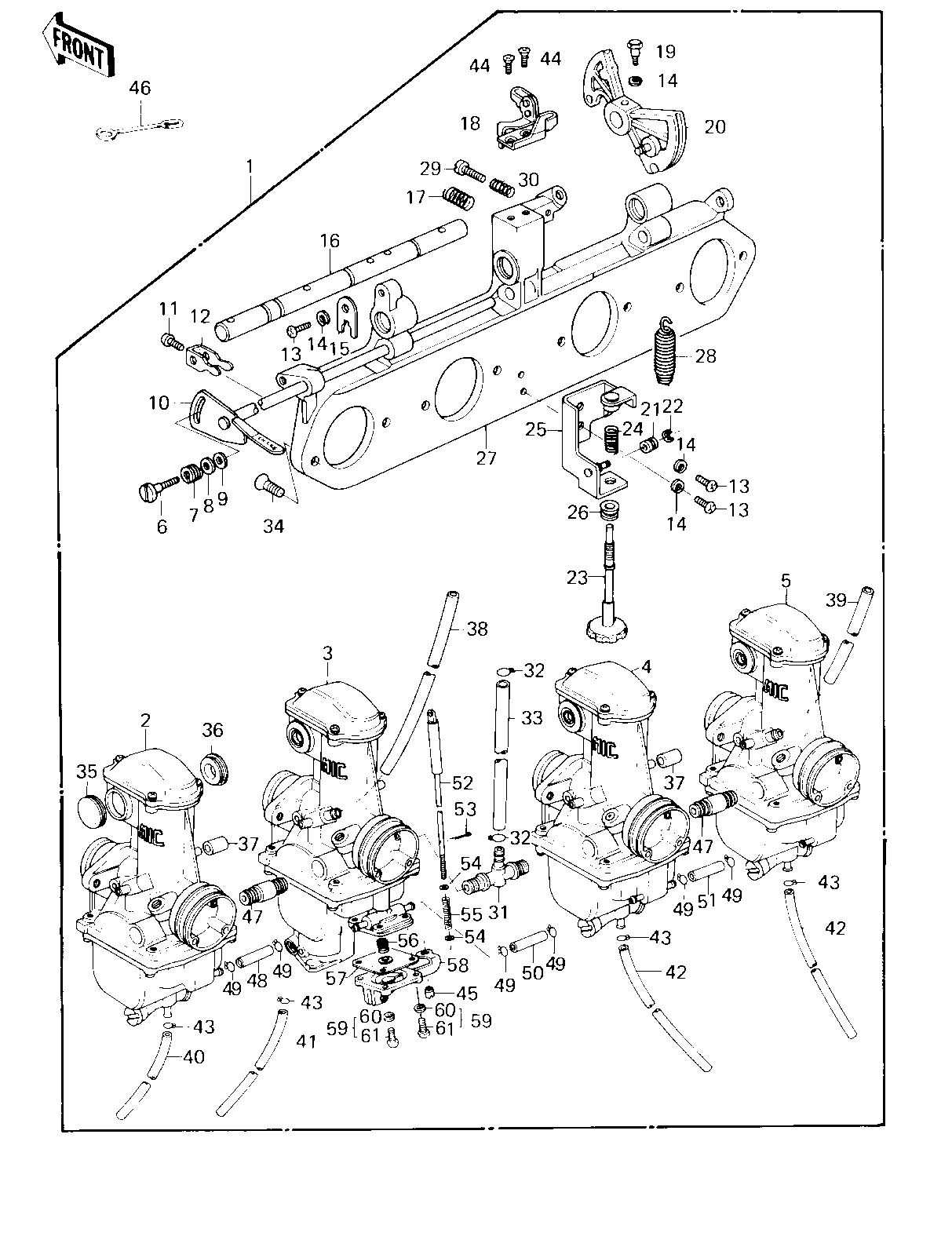

1980 Z1R - CARBURETOR ASSY (USA) ('80 D3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY, 1 16001-1204 1
CARBURETOR,L.H OUTSI 2 16001-1227 1
CARBURETOR,L.H INSID 3 & 56 16001-1228 1
CARBURETOR,R.H,INSID 4 16001-1233 1
CARBURETOR,R.H OUTSI 5 16001-1230 1
SCREW 6 16046-005 1
SPRING,F 7 16040-009 1
WASHER,PLAIN 8 16039-020 1 STEEL
WASHER PLAIN 5MM 8 410B0500 AL STEEL
WASHER,PLAIN 9 16039-019 1 NYLON
SHAFT,STARTER PLUNGE 10 16041-021 1
SCREW,PAN HEAD,5X7 11 16046-007 4
LEVER,STARTER PLUNGE 12 13168-1026 4
SCREW-PAN-CROS 13 220B0514 3
WASHER SPRING 5MM 14 461F0500 4
PLATE,SHAFT STOPPER 15 16055-012 1
SHAFT,CARB CONNECTIO 16 16041-017 1
SPRING,CABLE PULLY 17 16040-022 1
BRACKET,THROTTLE CAB 18 16077-017 1
BOLT,HEX HEAD,5X14 19 16067-006 1
PULLY,THROTTLE CABLE 20 13236-1015 1
RING 21 16073-016 1
CIRCLIP 3MM 22 482K3000 1
SCREW,THROTTLE STOP 23 16021-1020 1
SPRING,THRTL STP SCR 24 92081-1200 1
BRACKET THRTL CBL PL 25 11034-1667 1
BUSHING 26 92028-1071 1
HOLDER,CARB MOUNTING 27 16065-1009 1
SPRING,THROTTLE PULL 28 92081-1028 1
SCREW,ADJUSTER 29 16021-1011 1
SPRING,THROTTLE ADJS 30 16022-010 1
FITTING 31 92005-1010 1
CLAMP,HOSE 32 92037-1184 2
TUBE,7.5X12.5X225 33 92059-1123 1 ACTUAL L = 140 M/R
SCREW,6X14 34 16033-029 8
SCREW CNTSNK HD 6X14 34 221B0614 AL
CAP,RUBBER 35 16039-042 2
GROMMET,CARBURETOR 36 92071-104 6
HOSE,6X11.5X16 37 92059-141 2
HOSE,AIR VENT,5X8X55 38 92059-1028 1
HOSE,AIR VENT,5X8X55 39 92059-1028 1
HOSE,FUEL OVERFLOW 40 92059-147 1
HOSE,FUEL OVERFLOW 41 92059-134 1
HOSE,FUEL OVERFLOW 42 92059-134 2
CLAMP,CARBURETOR HLD 43 92037-178 4
SCREW CNTSNK HD 5X10 44 221B0510A 2
NUT,PUMP ROD 45 92015-1075 1
CLAMP,OVER FLOW PIPE 46 92037-134 1
FITTING 47 92005-1009 2
TUBE,3.5X7.5X47.5 48 92059-1072 1
CLAMP,TUBE 49 92037-1124 6
TUBE,3.5X7.5X64.5 50 92059-1071 1
TUBE,3.5X7.5X47.5 51 92059-1072 1
ROD ASSY,PUMP 52 & 5 46102-1013 1
COTTER PIN,1.0X6 53 550D1006 1
WASHER,PUMP ROD 54 92022-1138 2
SPRING,PUMP ROD 55 92081-1138 1
SPRING,PUMP DIAPHRAG 56 92081-1139 1
DIAPHRAGM,PUMP 57 43028-1012 1
COVER ASSY,PUMP 58 14025-1139 1
SCREW-PAN-WS-CROS 59 223B0414 4
WASHER SPRING 4MM 60 461F0400 4
SCREW-PAN-CROS 61 220B0414 4
