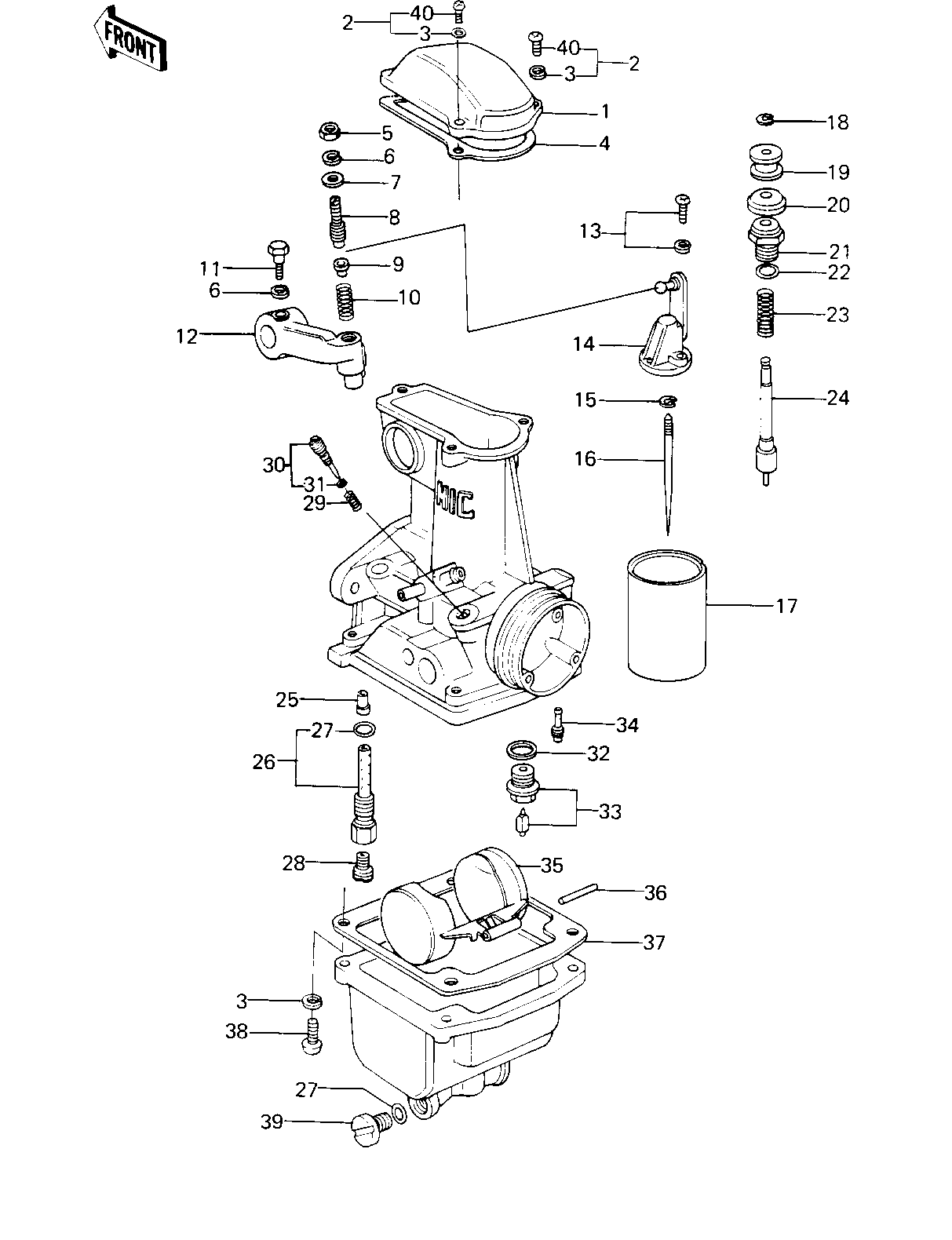

1980 Z1R - CARBURETOR PARTS (CANADA) ('80 D3)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TOP,MIXING CHAMBER | 1 | 16005-027 | 4 | ||
SCREW-PAN-WS-CROS | 2 | 223B0414 | 12 | ||
WASHER SPRING 4MM | 3 | 461F0400 | 28 | ||
GASKET,CHAMBER TOP | 4 | 16019-031 | 4 | ||
NUT,5MM | 5 | 16003-013 | 4 | ||
NUT 5MM | 5 | 312B0500 | AL | ||
WASHER SPRING 5MM | 6 | 461F0500 | 8 | ||
WASHER,PLAIN | 7 | 16039-016 | 4 | ||
SCREW,SLOTTED | 8 | 16046-012 | 4 | ||
SEAT,SPRING | 9 | 16057-002 | 4 | ||
SPRING | 10 | 16040-026 | 4 | ||
BOLT,HEX HEAD,5X14 | 11 | 16067-006 | 4 | ||
LEVER,THROTTLE | 12 | 39075-1001 | 4 | ||
SCREW,PAN HEAD,3X14 | 13 | 16033-031 | 8 | ||
BRACKET,THROTTLE VAL | 14 | 16007-028 | 4 | ||
CIRCLIP | 15 | 16008-010 | 4 | ||
JET NEEDLE,5CN15 | 16 | 16009-1013 | 4 | ||
VALVE,THROTTLE,CA1.75 (Canada) | 17 | 16025-1033 | 4 | ||
CIRCLIP | 18 | 16076-003 | 4 | ||
COLLAR | 19 | 16073-014 | 4 | ||
CAP,STARTER PLUNGER | 20 | 16039-015 | 4 | ||
CAP,STARTER PLUNGER | 21 | 16012-015 | 4 | ||
"O" RING,9MM | 22 | 670B1509 | 4 | ||
SPRING,STARTER PLUG | 23 | 16013-008 | 4 | ||
PLUNGER,STARTER | 24 | 16016-021 | 4 | ||
NEEDLE JET,O-1 | 25 | 16017-1011 | 4 | ||
*** N.L.A.*** (Canada) | 26 | 49122-1008 | 4 | ||
"0" RING,MAIN JET CO | 27 | 16038-016 | 8 | ||
MAIN JET,#A105R | 28 | 92063-1042 | 4 | STD | |
MAIN JET,#A100 | 28 | 92063-1033 | (4 | RACING USE ONLY | |
MAIN JET,#A102.5 | 28 | 92063-1028 | (4 | RACING USE ONLY | |
JET-MAIN NO 107.5R | 28 | 92063-073 | (4 | RACING USE ONLY | |
MAIN JET,#110R | 28 | 92063-1038 | (4 | RACING USE ONLY | |
SPRING-THR STOP SCRE | 29 | 16022-007 | 4 | ||
SCREW,PILOT ADJUSTIN | 30 | 16014-1004 | 4 | ||
"O" RING | 31 | 16038-022 | 4 | ||
WASHER FLOAT VLV SEA | 32 | 16029-004 | 4 | ||
FLOAT VALVE ASSY | 33 | 16030-027 | 4 | ||
JET-PILOT NO.15 | 34 | 92064-1003 | 4 | ||
FLOAT | 35 | 16031-031 | 4 | ||
FLOAT PIN | 36 | 16032-003 | 4 | ||
GASKET,FLOAT CHAMBER | 37 | 11009-1563 | 4 | ||
SCREW PAN HEAD 4X16 | 38 | 220B0416 | 16 | ||
SCREW,GUIDE | 39 | 16049-007 | 4 | ||
SCREW-PAN-CROS | 40 | 220B0414 | 12 |
