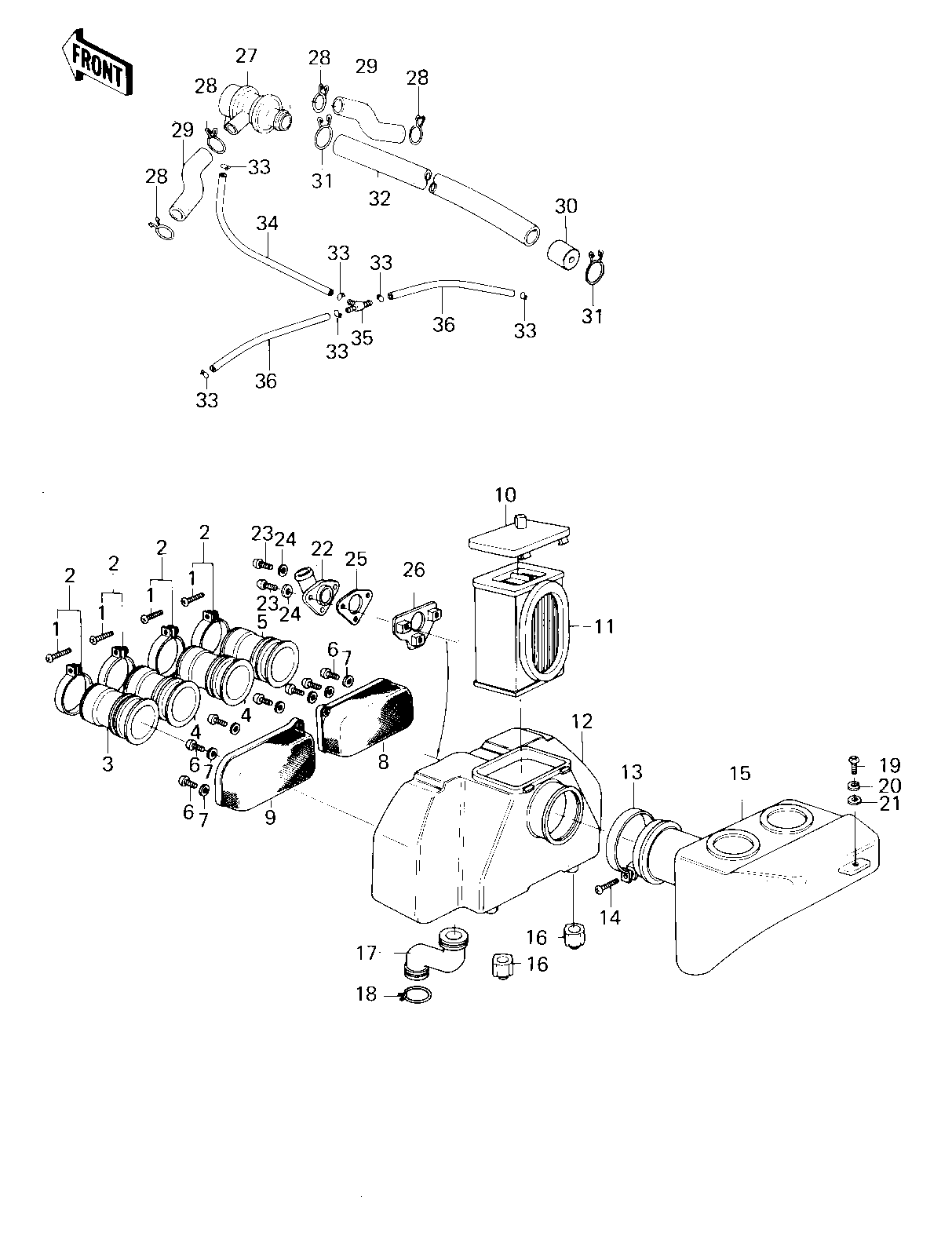

1980 Z1R - AIR CLEANER ('80 D3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW,PAN HEAD 1 92011-037 4
CLAMP-INLET PIPE 2 92037-061 4
DUCT,AIR CLEANER,#1 3 14073-1022 1 #1
DUCT,AIR CLEANER,#2, 4 14073-1023 2 #2,#3
DUCT,AIR CLEANER,#4 5 14073-1024 1 #4
SCREW-PAN-CROS 6 220C0412 8
WASHER,PLAIN,4M/M 7 92022-1041 8
PLATE,CARBURETOR HOL 8 11040-003 1
PLATE,CARBURETOR HOL 9 11040-002 1
CAP,AIR CLEANER 10 11012-075 1
ELEMENT,AIR CLNR 11 11013-063 1
BODY,AIR CLEANER 12 11011-1012 1
CLAMP 13 92037-106 1
BOLT,5X50 14 92011-036 1
SILENCER 15 39161-1001 1
CAP,DRAIN 16 11012-1083 2
TUBE,DRAIN 17 92059-124 1
CLAMP BREATHER PIPE 18 92037-028 1
SCREW PAN HEAD 6X16 19 220B0616 1
WASHER SPRING 6MM 20 461F0600 1
WASHER PLAIN 6MM 21 410B0600 1
FITTING 22 92005-1007 1
SCREW PAN HEAD 6X16 23 220B0616 3
WASHER PLAIN 6MM 24 410B0600 3
GASKET 25 11009-1054 1
HOLDER 26 13091-1020 1
VALVE ASSY,AIR SWITC 27 16126-1014 1
CLAMP,BREATHER TUBE 28 92037-213 4
TUBE,14X20 29 92059-1030 2
COLLAR 30 92027-1186 1
CLAMP 31 92037-1076 2
TUBE,19X25X260 32 92059-1031 1
CLAMP-PIPE 33 92037-072 6
TUBE,VACUUM,LONG 34 92059-1162 1
FITTING,TUBE 35 92005-1017 1
TUBE,VACUUM,LONG 36 92059-1162 2
