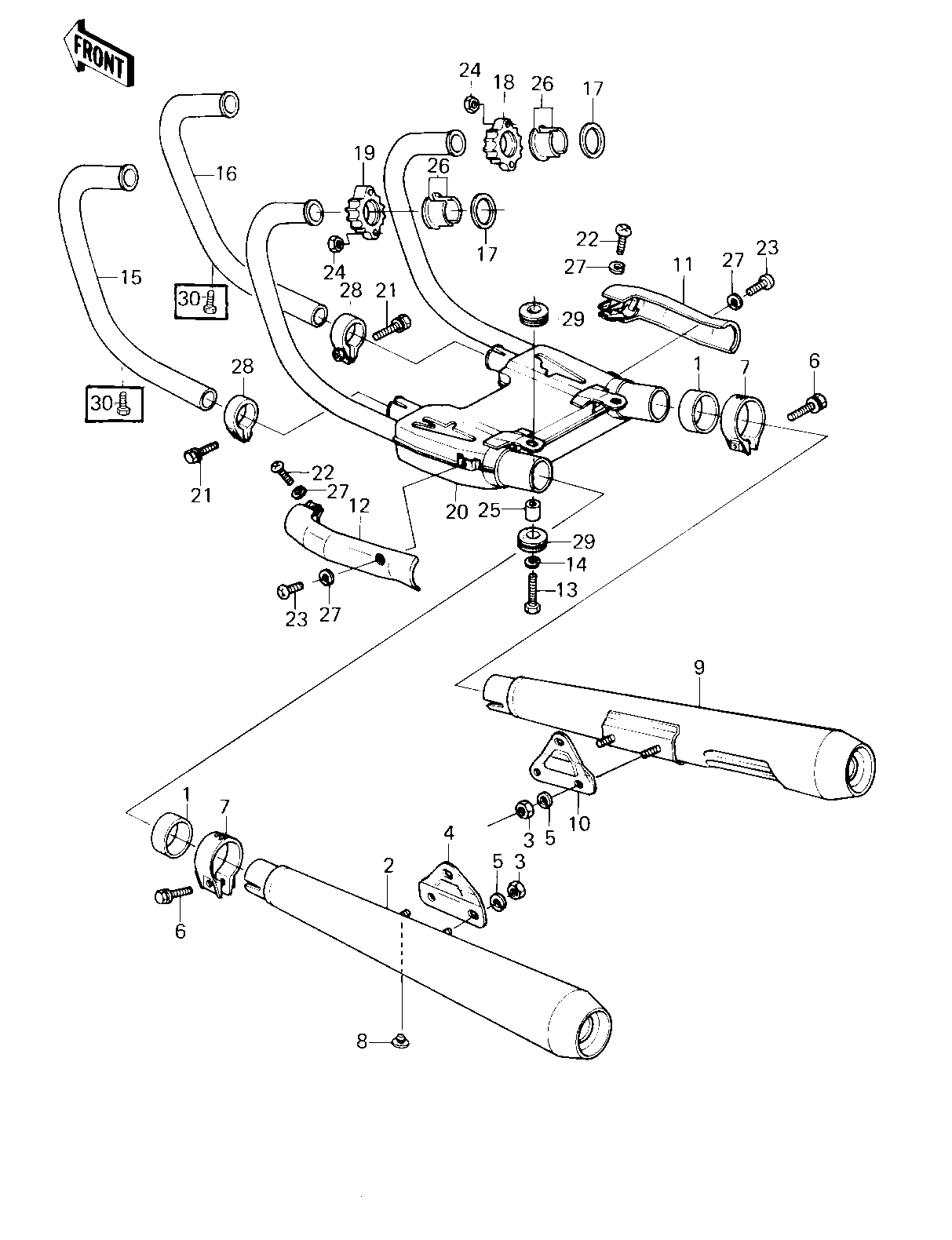

1980 Z1R - MUFFLERS ('80 D3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MUFFLER CONNE 1 11009-1035 2
MUFFLER,L.H 2 18002-1044 1
NUT,8MM 3 311B0800 4
BRACKET,MUFFLER L.H 4 32069-1037 1
WASHER SPRING 8MM 5 461F0800 4
BOLT,HEX HEAD,8X35 6 92001-1094 2
CLAMP,MUFFLER CONNEC 7 92037-1055 2
DAMPER RUBB MAIN STA 8 92075-015 1
MUFFLER,R.H 9 18002-1034 1
BRACKET,MUFFLER.R.H 10 32069-1038 1
COVER,MUFFLER,R.H 11 14025-1017 1
COVER,MFFLER L.H 12 14025-1120 1
BOLT,FLANGED,8X35 13 92001-1577 2
WASHER SPRING 8MM 14 461F0800 2
PIPE,EXHAUST,L.H.INN 15 18049-1030 1
PIPE,EXHAUST,R.H.INN 16 18049-1031 1
GASKET,EXHAUST PIPE 17 11009-1906 4
HOLDER,EXHAUST PIPE, 18 18069-1004 2
HOLDER,EXHAUST PIPE, 19 18069-1005 2
BOX,MUFFLER CONNECT 20 49070-1018 1
BOLT,HEX HEAD,8X30 21 92001-1067 2
SCREW,PAN HEAD,6X20 22 92009-1019 2
SCREW-PAN-CROS,6X8 23 220C0608 2
NUT,LOCK,8MM 24 92017-013 8
COLLAR 25 92027-1064 2
INSERT,EXHAUST PIPE 26 92027-170 8
WASHER-SPRING,6MM,BL 27 461K0600 2
CLAMP,EXHAUST PIPE 28 92037-1056 2
DAMPER RUBBER 29 92075-1042 4
BOLT (6X10) 30 110R0610 4
