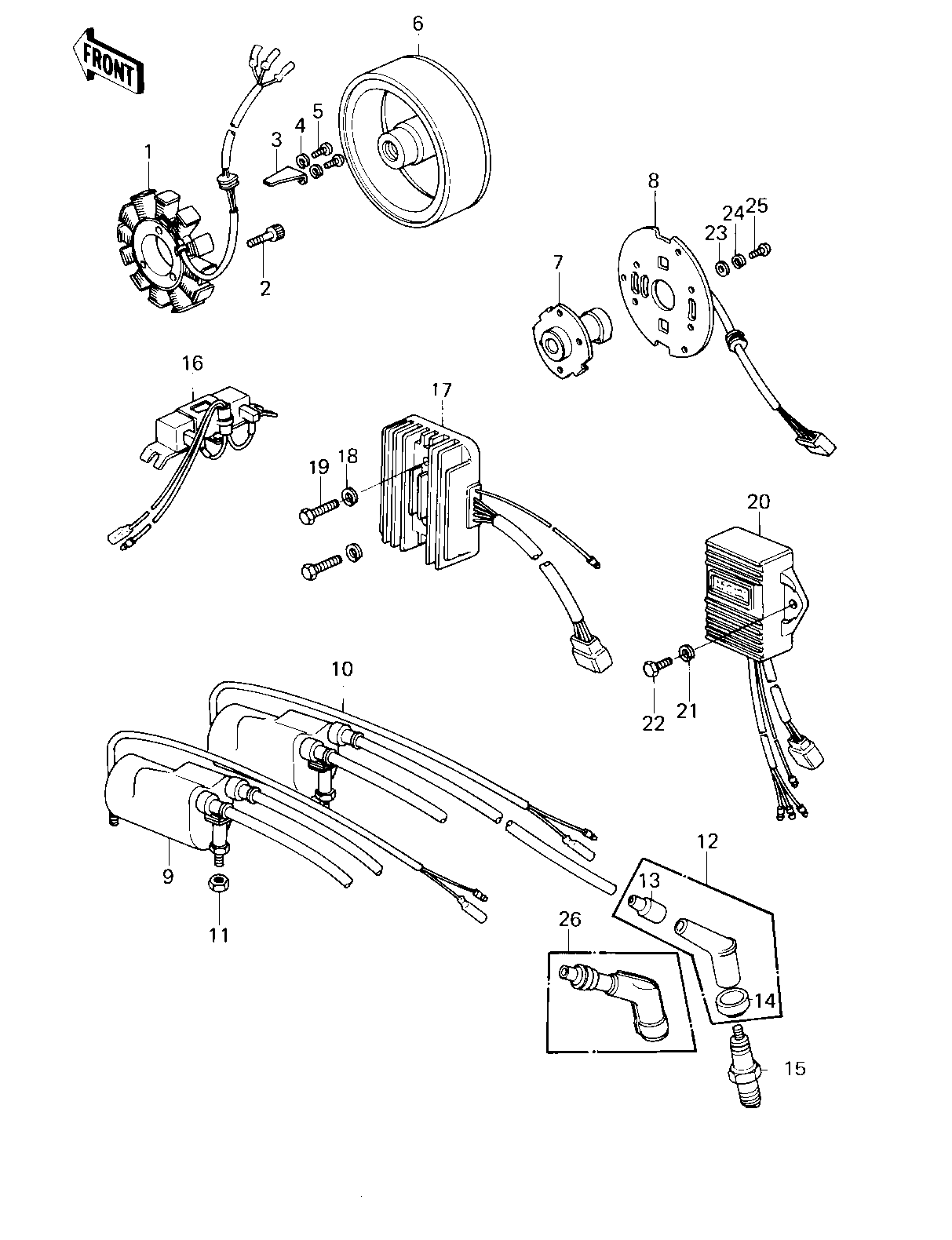

1980 Z1R - IGNITION/GENERATOR/REGULATOR ('80 D3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STATOR ASSY | 1 | 21003-1015 | 1 | ||
| BOLT,SOCKET,5X25 | 2 | 120P0525A | 3 | ||
| CLAMP,GENERATOR WIRE | 3 | 92037-1122 | 1 | ||
| WASHER SPRING 5MM | 4 | 461F0500 | 2 | ||
| SCREW PAN HEAD 5X12 | 5 | 220B0512 | 2 | ||
| ROTOR | 6 | 21007-1011 | 1 | ||
| ADVANCER ASSY,SPARK | 7 | 21148-1009 | 1 | ||
| ADVANCER ASSY SPARK (Canada) | 7 | 21148-1006 | 1 | USE FOR CANADIAN MARKET | |
| COIL-PULSING | 8 | 59026-1012 | 1 | ||
| COIL,IGNITION,NO.1&4 | 9 | 21121-1013 | 1 | NO. 1 OF 4 | |
| COIL,IGNITION,NO.2&3 | 10 | 21121-1014 | 1 | NO. 2 OF 3 | |
| NUT,LOCK 6MM | 11 | 92017-014 | 4 | ||
| CAP SPARK PLUG | 12 | 21160-1014 | 4 | ||
| GROMMET,SPARK PLG CA | 13 | 21132-005 | 4 | ||
| GROMMET-PLUG CAP,A | 14 | 21131-004 | 4 | ||
| SPARK PLUG B8ES11 | 15 | B8ES11 | 4 | ||
| RESISTOR ASSY | 16 | 28018-1018 | 1 | ||
| REGULATOR,VOLTAGE | 17 | 21066-1008 | 1 | ||
| WASHER SPRING 6MM | 18 | 461F0600 | 2 | ||
| BOLT-UPSET | 19 | 112G0625 | 2 | ||
| IGNITER | 20 | 21119-5001 | 1 | LEAD WIRE (RED) = 700 M/M | |
| IGNITER | 20 | 21119-5001 | 1 | LEAD WIRE (RED) = 750 M/M | |
| WASHER SPRING 6MM | 21 | 461F0600 | 2 | ||
| BOLT-UPSET,6X16 | 22 | 112G0616 | 2 | ||
| WASHER PLAIN 5MM | 23 | 410B0500 | 3 | ||
| WASHER SPRING 5MM | 24 | 461F0500 | 3 | ||
| SCREW PAN HEAD 5X12 | 25 | 220B0512 | 3 | ||
| CAP,SPARK PLUG | 26 | 21160-005 | 4 | USE FOR CANADIAN MARKET |
