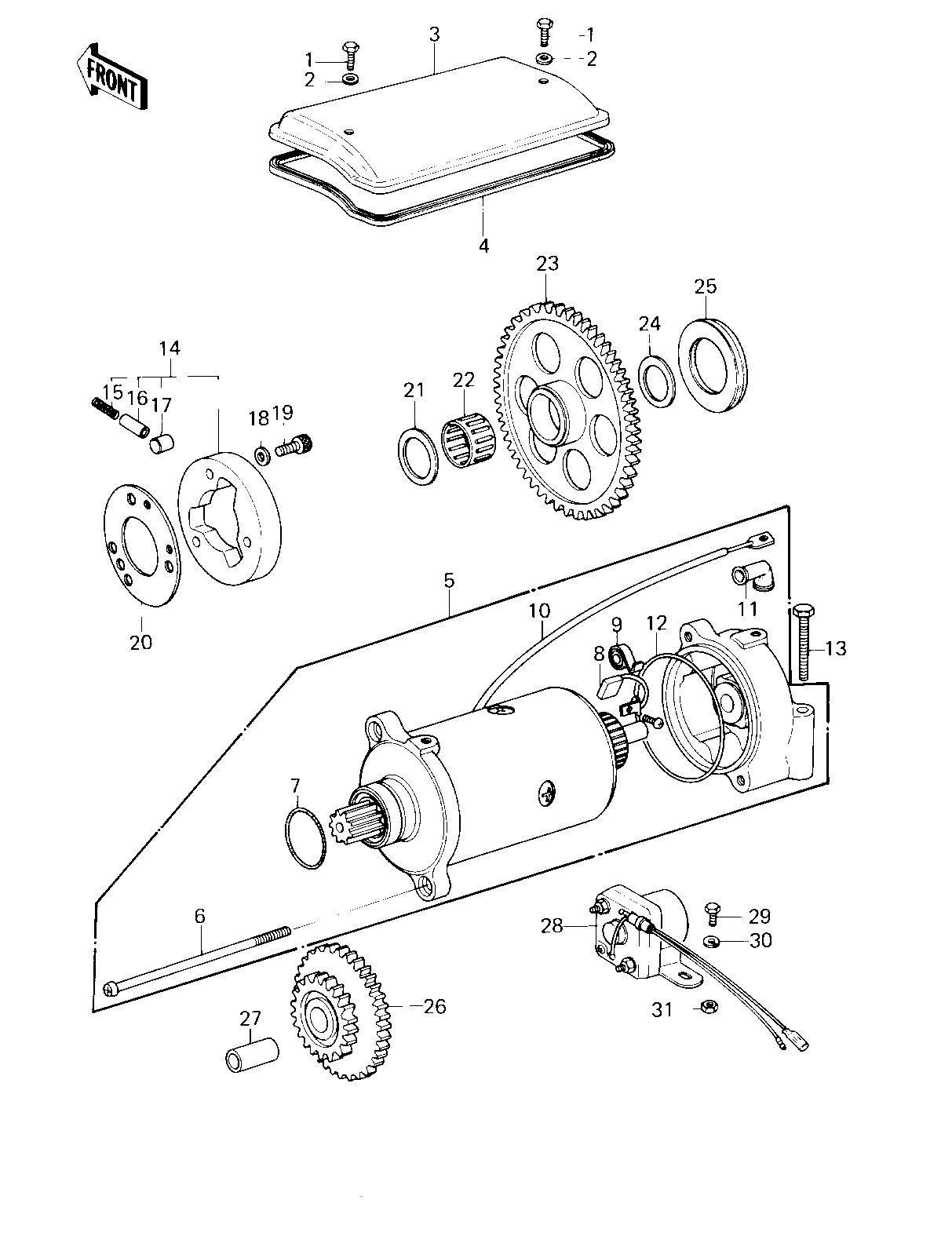

1980 Z1R - STARTER MOTOR/STARTER CLUTCH ('80 D3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT (6X10) 1 110R0610 2
WASHER,PLAIN,6MM 2 410D0600 2
COVER,STARTING MOTOR 3 21165-001 1
GASKET,START MOTOR C 4 21166-001 1
STARTER-ELECTRIC 5 21163-1019 1
SCREW,PAN HEAD,6X110 6 21015-005 2
"0" RING,STARTING MT 7 21027-004 1
CARBON BRUSH 8 21039-003 2
SPRING,CARBON BRUSH 9 21040-003 2
WIRE,STARTER MOTOR 10 26010-055 1
GROMMET,CORD 11 21017-017 1
"0" RING,STARTING MT 12 21027-003 1
BOLT,EXCLUSIVE 13 92001-1456 2
CLUTCH ASSY,STARTING 14 13193-1006 1
SPRING 15 92081-110 3
PIN 16 92043-087 3
PIN 17 92122-001 3
WASHER,PLAIN 18 92022-1108 3
BOLT 19 120P0816 3
PLATE,CLUTCH STARTER 20 92026-112 1
SPACER 21 92026-1031 1 T = 1.0
BEARING,NEEDLE,K2530 22 92046-1022 1
GEAR,STARTING CLUTCH 23 16085-1012 1
SPACER 24 92026-1033 1 T = 2.0
DAMPER RUBBER,6.3T 25 92075-1129 AR
DAMPER RUBBER,7.3T 25 92075-1130 AR
DAMPER RUBBER,8.3T 25 92075-1131 AR
GEAR,STARTING MOTOR 26 21167-002 1
PIN-PISTON 27 13002-007 1
SWITCH ASSY,MAGNETIC 28 27010-1023 1
BOLT-UPSET,6X16 29 112G0616 2
WASHER SPRING 6MM 30 461F0600 2
NUT,LOCK 6MM 31 92017-014 2
