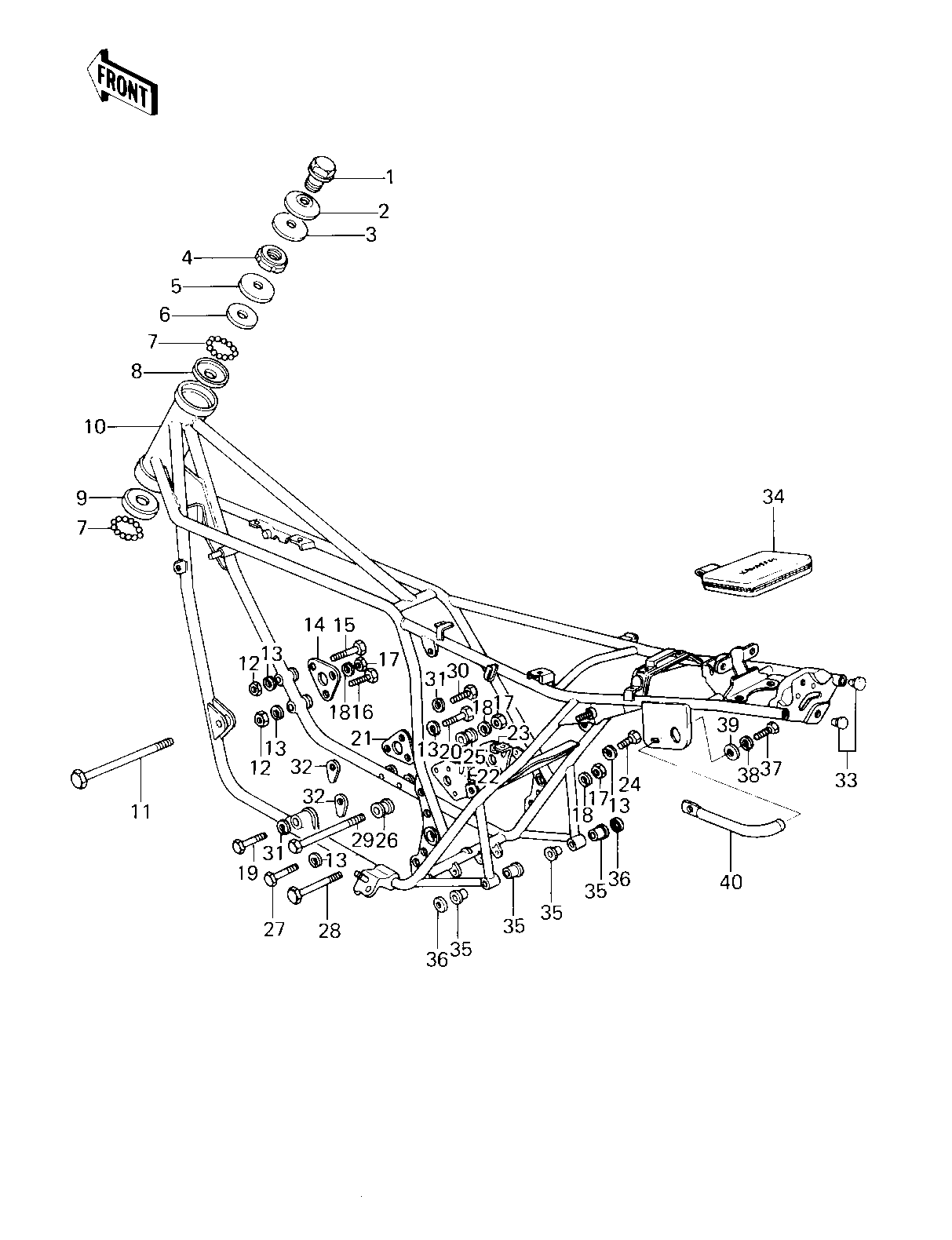

1980 Z1R - FRAME/FRAME FITTINGS ('80 D3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,STEERG STEM HEA 1 92007-031 1
WASHER,STEERG STM HD 2 92022-230 1
WASHER,WAVE 3 46100-003 1
NUT STEERING STEM LC 4 92090-007 1
CAP, STEERING STEM 5 46098-016 1
CONE,STRNG STM BRNG 6 92047-011 1
BALL STEEL 1/4' 7 600A0800 39
RACE STRNG STEM BERN 8 92048-006 1
RACE,STRNG STM BRNG 9 92048-008 1
FRAME 10 32002-1103 1
BOLT,ENGINE MOUNTING 11 92091-022 1 L=310 MM
NUT,8MM 12 311B0800 2
WASHER SPRING 8MM 13 461F0800 8
PLATE,ENG MOUNT FRON 14 32030-025 1
BOLT,HEX HEAD,8X65 15 92001-1236 1
BOLT-FLANGE 15 92001-1582 1
BOLT,FLANGED,8X60 16 92001-1581 1
BOLT,FLANGED,8X60 16 92001-1581 1
NUT,LOCK,10MM 17 92019-021 3
WASHER SPRING 10MM 18 461F1000 3
BOLT,HEX HEAD,12X55 19 92001-1262 1
BOLT-SMALL-UPSET,8X1 20 115G0818 2
PLATE,ENG MOUNT LOWE 21 32030-026 1
BRACKET,REAR ENGINE 22 32029-1023 1
BRACKET,REAR ENGINE 23 32029-1024 1
BOLT,HEX HEAD,8X40 24 92001-1230 3
BOLT 24 92001-1578 3
COLLAR,ENG MOUNTING 25 92027-160 1 L = 31 MM
COLLAR,ENG MOUNTING 26 92027-159 1 L = 52 MM
BOLT,FLANGED,8X35 27 92001-1577 1
BOLT,FLANGED,8X35 27 92001-1577 1
BOLT,ENGINE MOUNTING 28 92003-099 1 L = 165 MM
BOLT,ENGINE MOUNTING 29 92091-023 1 L = 250 MM
BOLT,HEX HEAD,12X70 30 92001-1265 1
WASHER SPRING 12MM 31 461F1200 2
NUT,12MM 32 92016-045 2
PLUG,FRAME 33 92066-1018 2
BAG 34 56008-1008 1
BUSHING,MUFFLER FITT 35 92092-010 4
WASHER,PLAIN 36 92022-328 2
BOLT-SMALL-UPSET,8X1 37 115G0816 1
WASHER SPRING 8MM 38 461F0800 1
WASHER PLAIN 8MM 39 410B0800 1
GRIP,FRAME 40 32109-1004 1
