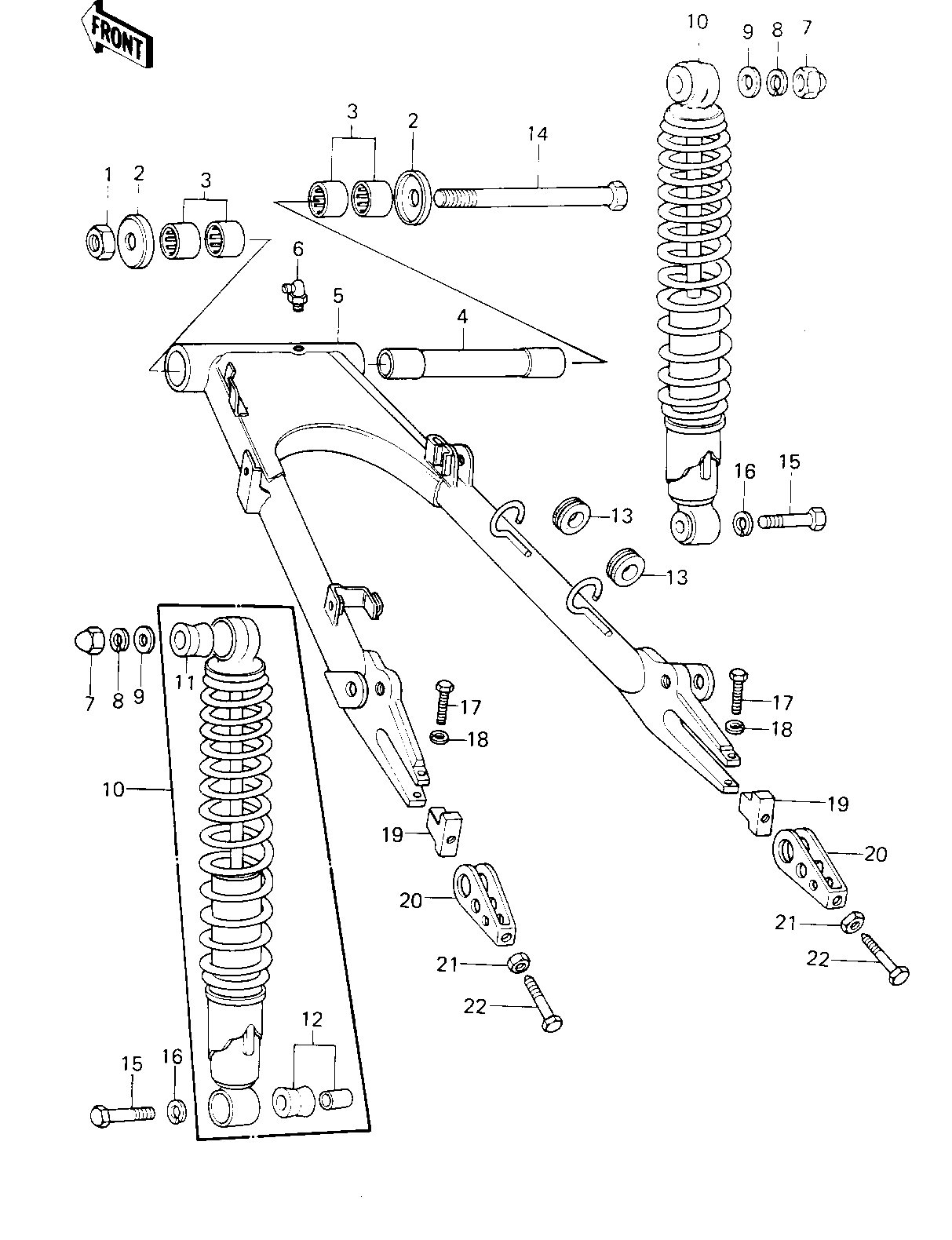

1980 Z1R - SWING ARM/SHOCK ABSORBERS ('80 D3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-SELF LOCKING 1 92019-012 1
CAP,SWING ARM 2 33035-009 2
BEARING-NEEDLE,HK221 3 92046-1115 4
SLEEVE,SWING ARM 4 42036-1011 1
ARM-COMP-SWING 5 33001-1079 1 INCLUDES REF NO'S MARKED *
GREASE NIPPLE 6 92005-002 1
NUT 12MM 7 92020-014 2
WASHER SPRING 12MM 8 461F1200 2
WASHER PLAIN 12MM 9 410B1200 2
SHOCK ABSBR RR 10 45014-1043 2
BUSHING,SHOCK ABSORB 11 45017-020 2
BUSHING,SHOCK ABSORB 12 45017-019 2
DAMPER RUBBER 13 43064-007 2
SHAFT,SWING ARM PIVO 14 33032-036 1
BOLT HEX HEAD 10X35 15 113N1035 2
WASHER SPRING 10MM 16 461F1000 2
BOLT 17 110G0840 2 *
WASHER SPRING 8MM 18 461F0800 2 *
STOPPER,CHAIN ADJUST 19 33044-001 2 *
ADJUSTER,CHAIN 20 33040-066 2
NUT 10MM 21 315B1000 2
BOLT-CHN ADJUST 10MM 22 92001-143 2
