Parts Diagrams |

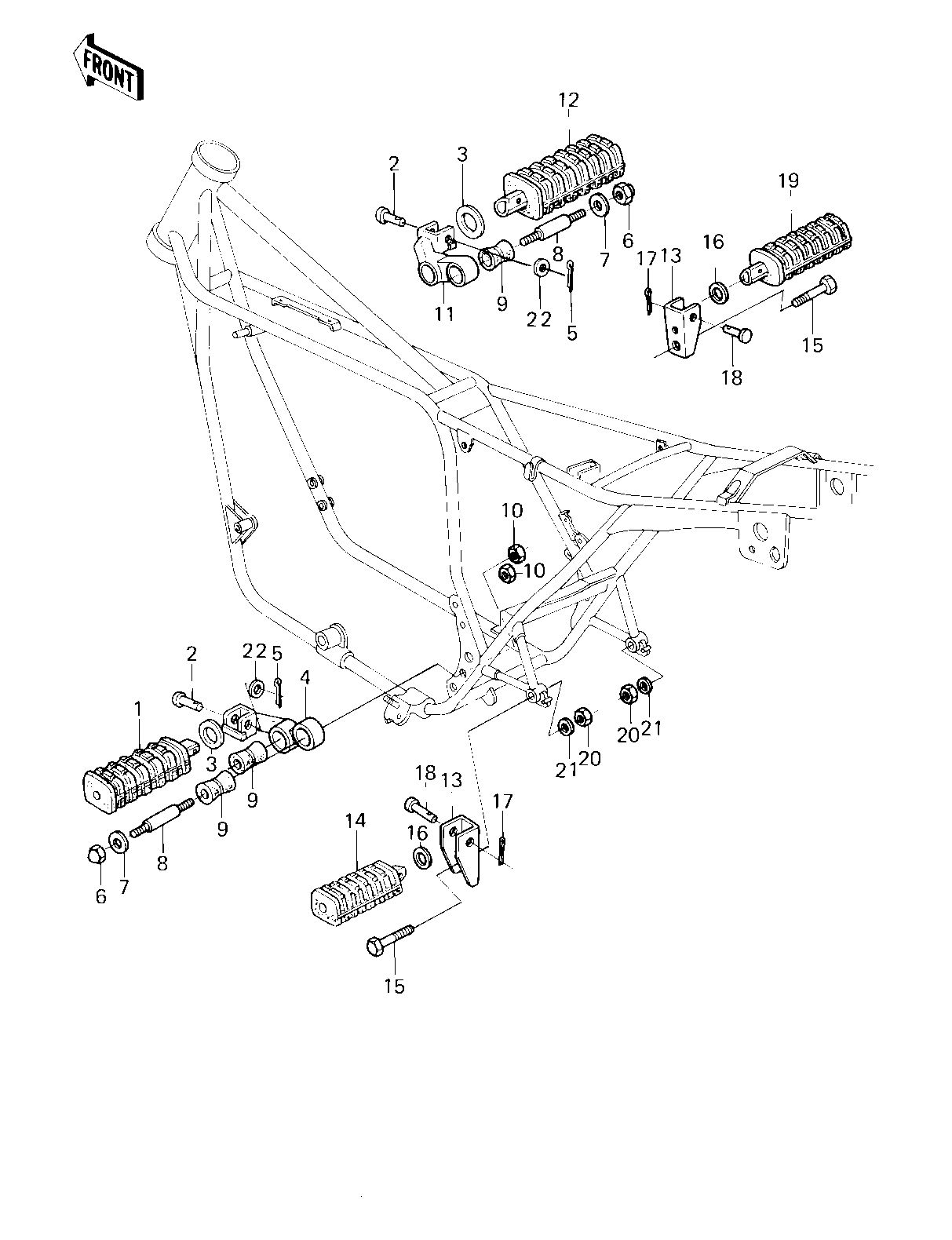

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
STEP-ASSY,FR,RH | 1 | 34028-1018 | 1 | ||
PIN,FOOTREST BAR FIT | 2 | 92043-115 | 2 | ||
WASHER,PLAIN | 3 | 92022-250 | 2 | ||
HOLDER,L H FIRST STE | 4 | 34003-1055 | 1 | ||
PIN COTTER 2.5X16 | 5 | 550D2516 | 2 | ||
NUT,CAP AND LOCK,8MM | 6 | 92019-013 | 4 | ||
CAP,FOOTRESTBAR | 7 | 92102-010 | 4 | ||
STUD,FOOTREST BAR FI | 8 | 92004-048 | 4 | ||
DAMPER RUBBER,FOOTRS | 9 | 92075-140 | 4 | ||
NUT 10MM | 10 | 315B1000 | 4 | ||
HOLDER,R.H FTRST STE | 11 | 34003-1056 | 1 | ||
STEP-ASSY,FR,RH | 12 | 34028-1018 | 1 | ||
BRACKET,STEP | 13 | 32054-1021 | 2 | ||
STEP,FOOTREST,REAR,L | 14 | 34028-1009 | 1 | ||
BOLT,HEX HEAD,10X60 | 15 | 113B1060 | 2 | ||
WASHER-PLAIN | 16 | 92022-181 | 2 | ||
PIN,COTTER,2.0X12 | 17 | 550D2012 | 2 | ||
PIN | 18 | 92043-1464 | 2 | ||
STEP,FOOTREST,REAR,R | 19 | 34028-1010 | 1 | ||
NUT,LOCK,10MM | 20 | 92019-021 | 2 | ||
WASHER PLAIN 10MM | 21 | 411B1000 | 2 | ||
WASHER,PLAIN | 22 | 92022-1028 | 2 |
STEP-ASSY,FR,RH | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,FOOTREST BAR FIT | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,PLAIN | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER,L H FIRST STE | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN COTTER 2.5X16 | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,CAP AND LOCK,8MM | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CAP,FOOTRESTBAR | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
STUD,FOOTREST BAR FI | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER RUBBER,FOOTRS | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT 10MM | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
HOLDER,R.H FTRST STE | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STEP-ASSY,FR,RH | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,STEP | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STEP,FOOTREST,REAR,L | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,10X60 | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-PLAIN | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,COTTER,2.0X12 | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STEP,FOOTREST,REAR,R | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,10MM | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER PLAIN 10MM | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,PLAIN | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
