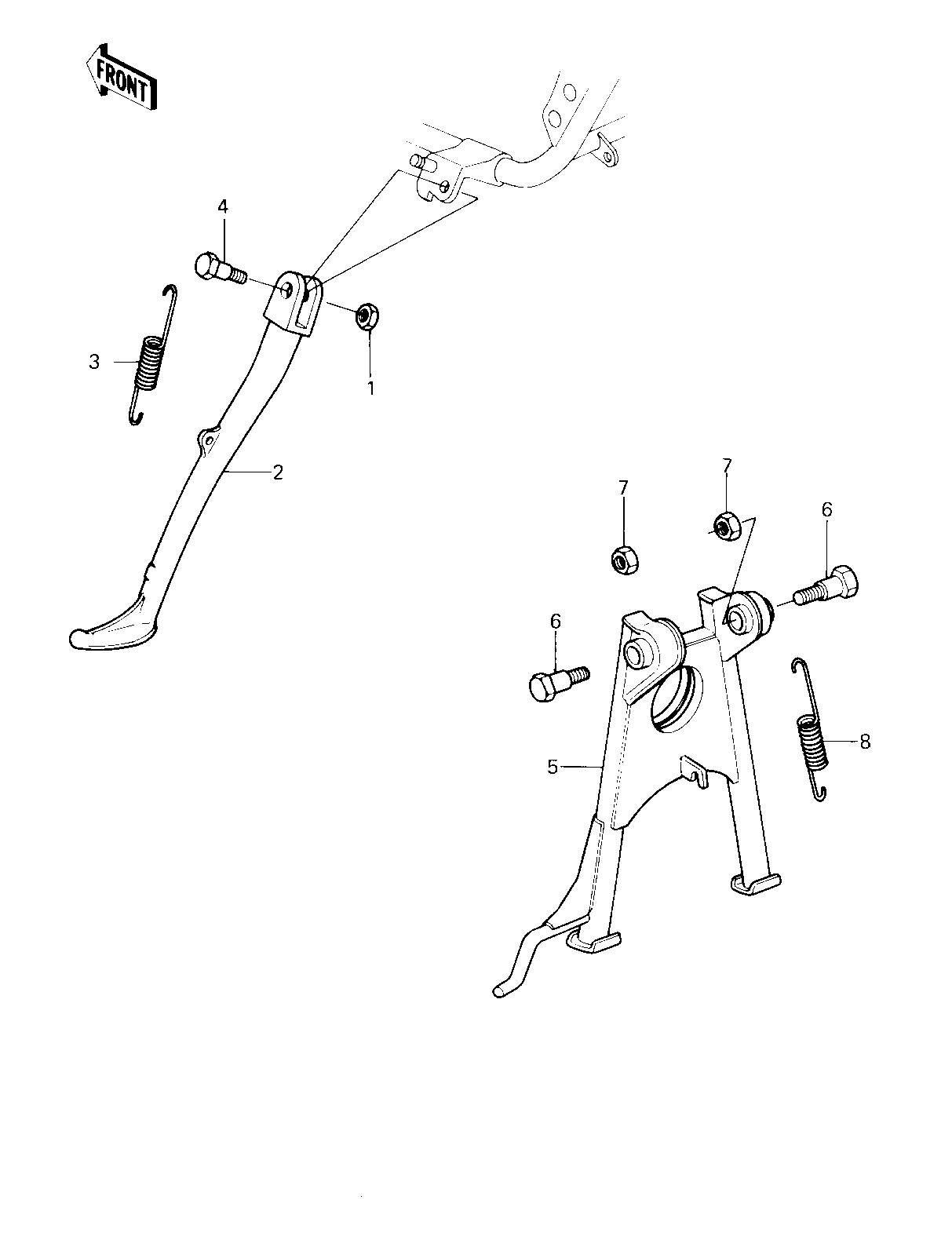

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT,LOCK,10MM 1 92019-021 1
STAND-SIDE 2 34024-1031 1
SPRING,SIDE STAND 3 34025-005 1
BOLT-SIDE STAND 4 92003-079 1
STAND-MAIN 5 34011-1015 1
SHAFT MAIN STAND 6 34019-014 2
NUT,MAIN STAND FITT 7 92016-044 2
SPRING,MAIN STAND 8 34023-012 1
