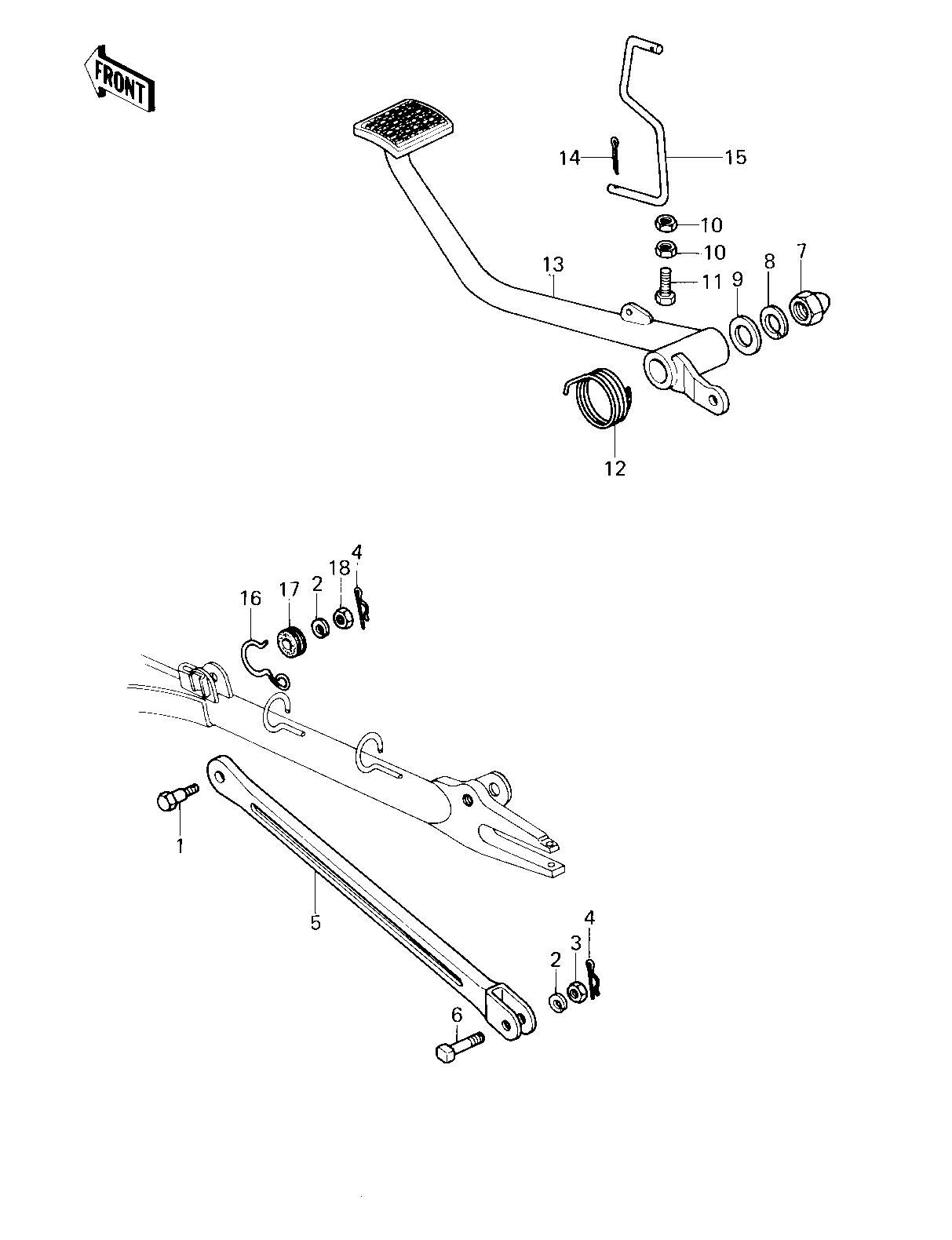

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,HEX HEAD,10X39 1 92003-218 1
WASHER SPRING 10MM 2 461F1000 2
NUT,10MM 3 314B1000 1
PIN,SNAP 4 554A0800 2
TORQUE LINK,REAR HUB 5 43007-049 1
BOLT,10X47 6 92001-1145 1
NUT,CAP AND LOCK,8MM 7 92019-013 1
WASHER SPRING 8MM 8 461F0800 1
WASHER,8.5X20X1.6 9 92022-1561 1
NUT 6MM 10 311B0600 2
BOLT-UPSET,6X20 11 112G0620 1
SPRING,BRAKE PEDAL 12 92081-1046 1
PEDAL,BRAKE 13 43001-1040 1
PIN COTTER 1.6X10 14 550D1610 1
HOOK,BRK LAMP SW SPR 15 27012-010 1
CLAMP,BRAKE HOSE 16 92037-1061 1
DAMPER RUBBER 17 43064-007 1
NUT 10MM 18 315B1000 1
