Parts Diagrams |

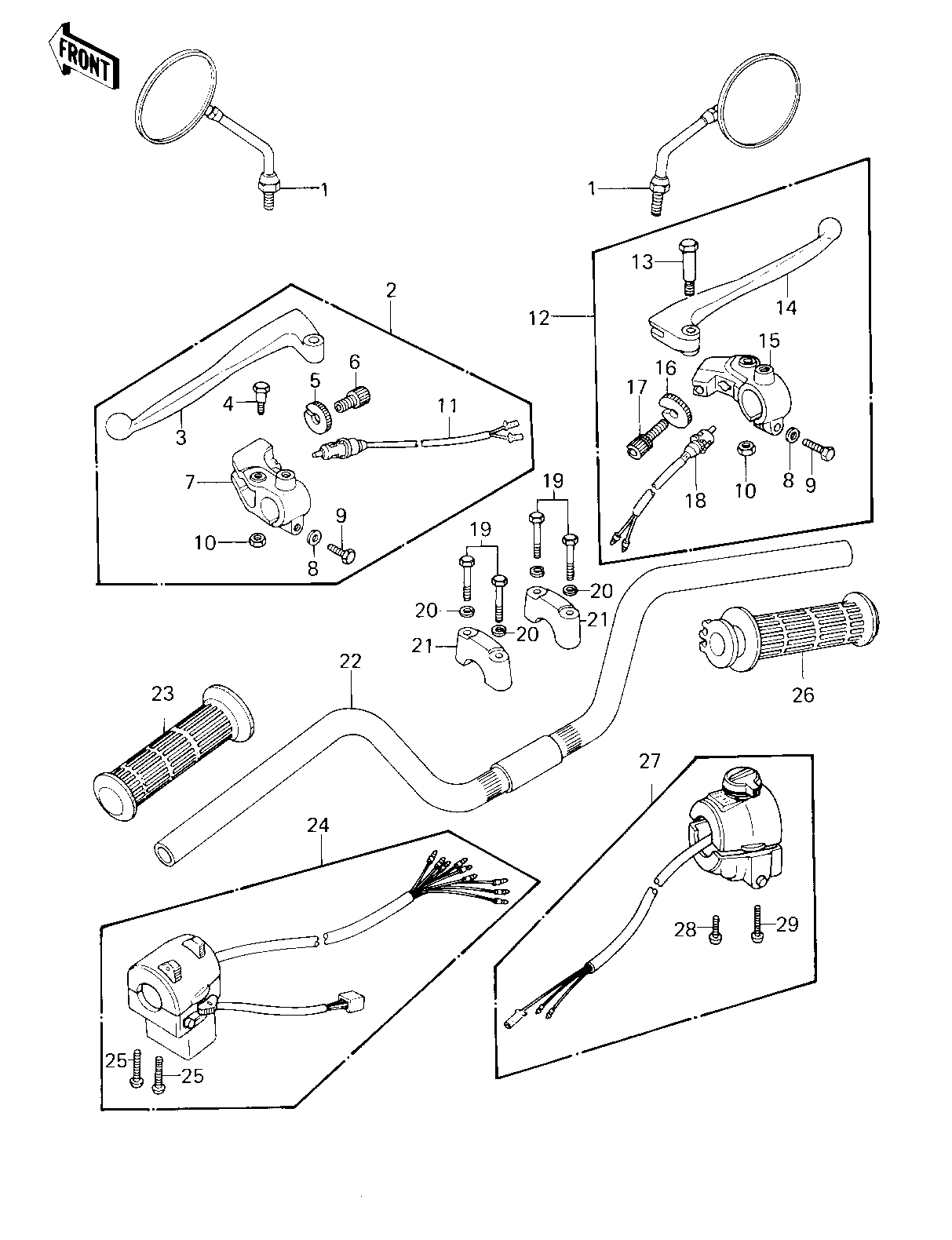

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| REAR VIEW MIRROR ASS | 1 | 56001-1032 | 2 | ||
| LEVER ASSY,CLUTCH | 2 | 46076-054 | 1 | ||
| LEVER,CLUTCH | 3 | 46092-023 | 1 | ||
| BOLT,HEX HEAD | 4 | 92007-047 | 1 | ||
| NUT,CABLE ADUST NUT | 5 | 46056-007 | 1 | ||
| SCREW CABLE ADJUST | 6 | 46055-003 | 1 | ||
| HOLDER,CLUTCH LEVER | 7 | 46094-019 | 1 | ||
| WASHER PLAIN 6MM | 8 | 410B0600 | 2 | ||
| BOLT HEX HEAD 6X25 | 9 | 110N0625 | 2 | ||
| NUT | 10 | 92019-008 | 2 | ||
| SWITCH,CLUTCH | 11 | 27043-002 | 1 | ||
| LEVER ASSY,CLUTCH | 12 | 46076-1002 | 1 | ||
| BOLT,CLUTCH LEVER FI | 13 | 92001-1075 | 1 | 6 X 44 | |
| LEVER,FRONT BRAKE | 14 | 46092-1003 | 1 | ||
| HOLDER,CLUTCH LEVER | 15 | 13091-1010 | 1 | ||
| NUT-LOCK | 16 | 46056-005 | 1 | ||
| SCREW,CABLE ADJUST | 17 | 92009-1023 | 1 | ||
| SWITCH-FR. BRAKE LAM | 18 | 27021-004 | 1 | ||
| BOLT 8X38 | 19 | 92001-1405 | 4 | ||
| WASHER SPRING 8MM | 20 | 461F0800 | 4 | ||
| HOLDER-HANDLEBAR | 21 | 46012-008 | 2 | ||
| HANDLEBAR | 22 | 46003-1027 | 1 | ||
| RUBBER,L.H.GRIP | 23 | 46075-1001 | 1 | ||
| HOUSING ASSY,L.H | 24 | 46091-1029 | 1 | ||
| SCREW-PAN-CROS,5X25 | 25 | 220B0525 | 2 | ||
| GRIP ASSY,THROTTLE | 26 | 46019-1004 | 1 | ||
| HOUSING ASSY,R.H | 27 | 46091-1050 | 1 | ||
| SCREW PAN HEAD 5X30 | 28 | 220B0530 | 1 | ||
| SCREW-PAN-CROS | 29 | 220B0540 | 1 |
