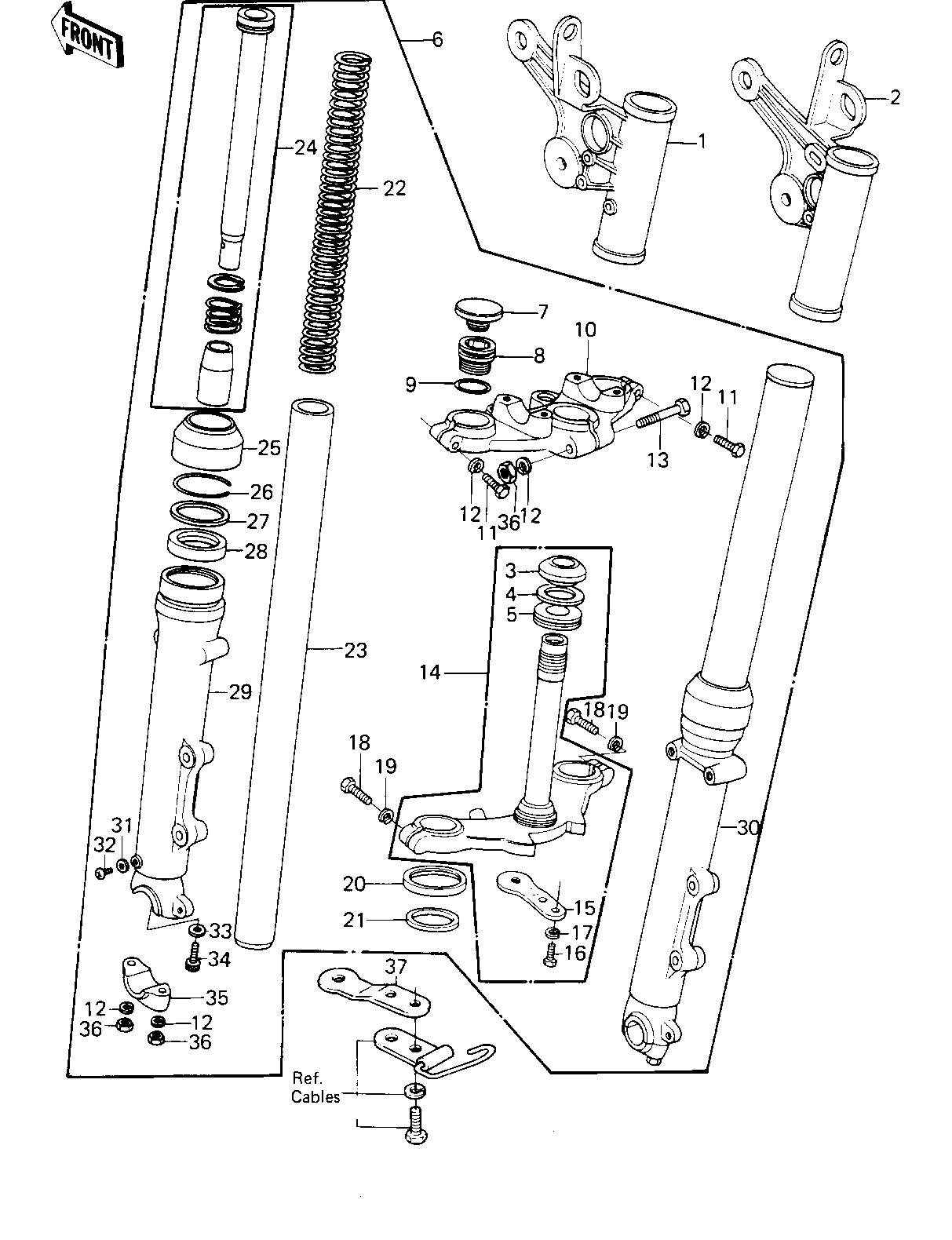

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,L.H.FORK | 1 | 44033-1011 | 1 | F BLACK | |
COVER,R.H FORK | 2 | 44033-1012 | 1 | F BLACK | |
CONE,STEERING STEM | 3 | 92047-012 | 1 | ||
WASHER,PLAIN | 4 | 92022-231 | 1 | ||
OIL SEAL,STEERING ST | 5 | 92056-003 | 1 | ||
FORK-FRONT | 6 | 44001-1211 | 1 | ||
CAP,RUBBER | 7 | 11012-1017 | 2 | ||
CAP,FORK SPRING | 8 | 44029-1003 | 2 | ||
"O" RING,FORK TOP | 9 | 92055-1009 | 2 | ||
HEAD,STEERING STEM | 10 | 44039-1024 | 1 | ||
BOLT,8X40 | 11 | 92001-1082 | 2 | ||
WASHER SPRING 8MM | 12 | 461F0800 | 7 | ||
BOLT-HEX HEAD,8X55 | 13 | 44041-038 | 1 | ||
STEM,STEELING | 14 | 44037-1028 | 1 | ||
BRACKET | 15 | 11034-1126 | 1 | ||
BOLT,6X14 | 16 | 92001-1083 | 2 | ||
WASHER SPRING 6MM | 17 | 461F0600 | 2 | ||
BOLT,HEX HEAD,12X40 | 18 | 92001-1144 | 2 | ||
WASHER SPRING 12MM | 19 | 461F1200 | 2 | ||
WASHER,FORK COVER | 20 | 44043-049 | 2 | ||
GASKET,FORK COVER | 21 | 44045-038 | 2 | ||
SPRING,FORK | 22 | 44026-1039 | 2 | ||
TUBE,FORK INNER | 23 | 44013-1003 | 2 | ||
CYLINDER-FORK | 24 | 44022-1011 | 2 | ||
DUST SHEILD,FORK | 25 | 44010-032 | 2 | ||
CIRCLIP-OIL SEAL FIT | 26 | 44044-012 | 2 | ||
WASHER-OIL SEAL FIT | 27 | 44043-044 | 2 | ||
OIL SEAL,FORK | 28 | 44009-024 | 2 | ||
TUBE,LH,FORK OUTER | 29 | 44005-1032 | 1 | ||
TUBE,RH,FORK OUTER | 30 | 44006-1032 | 1 | ||
GASKET FORK DRAIN PL | 31 | 44045-002 | 2 | ||
SCREW PAN HEAD 4X8 | 32 | 220B0408 | 2 | ||
GASKET,FORK CYLINDER | 33 | 44045-057 | 2 | ||
BOLT-FORK CYLINDER | 34 | 44041-040 | 2 | ||
HOLDER,FRONT AXLE | 35 | 44063-014 | 2 | ||
NUT,LOCK,8MM | 36 | 92015-1124 | 2 | ||
BRACKET | 37 | 11034-1126 | 1 |
