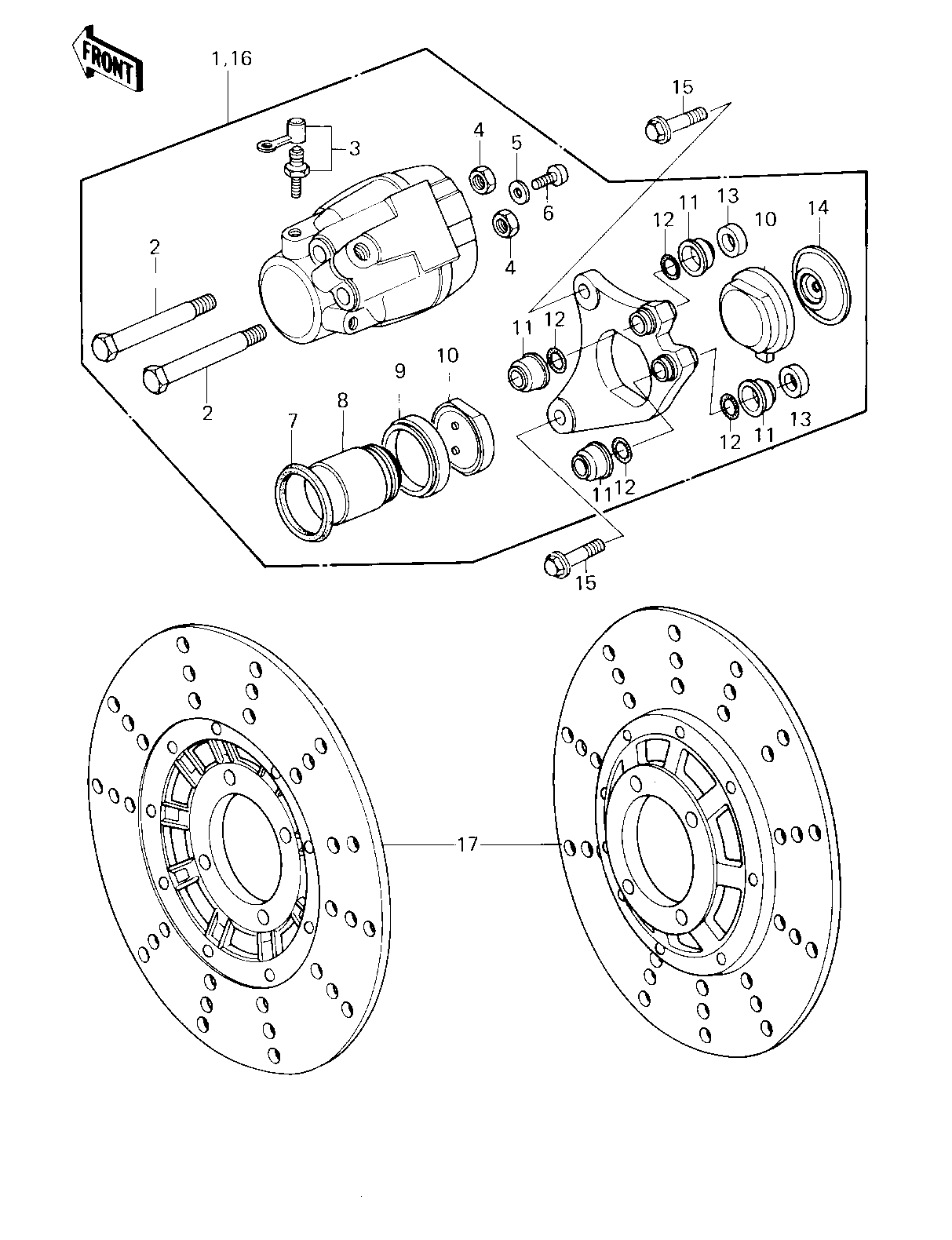

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CALIPER ASSY,L.H, 1 43041-1024 1
BOLT 2 43045-006 4
BLEEDER SET 3 43085-001 2
NUT 10MM 4 315B1000 4
WASHER SPRING 6MM 5 461F0600 2
SCREW PAN HEAD 6X12 6 220B0612 2
RING,PISTON SEAL 7 43049-002 2
PISTON,BRAKE,42M/M 8 43020-1012 2
DUST SEALD,RUBBER 9 43054-003 2
PAD SET 10 43082-1001 2
DUST SHILD,SHAFT 11 43052-005 8
"0" RING 12 43053-006 8
PLUG 13 43088-002 4
SPACER 14 43040-004 2
BOLT,HEX HEAD,10X38 15 92001-1293 4
CALIPER ASSY,R.H 16 43041-1025 1
DISC PLATE,FRONT BRA 17 41080-1022 2
