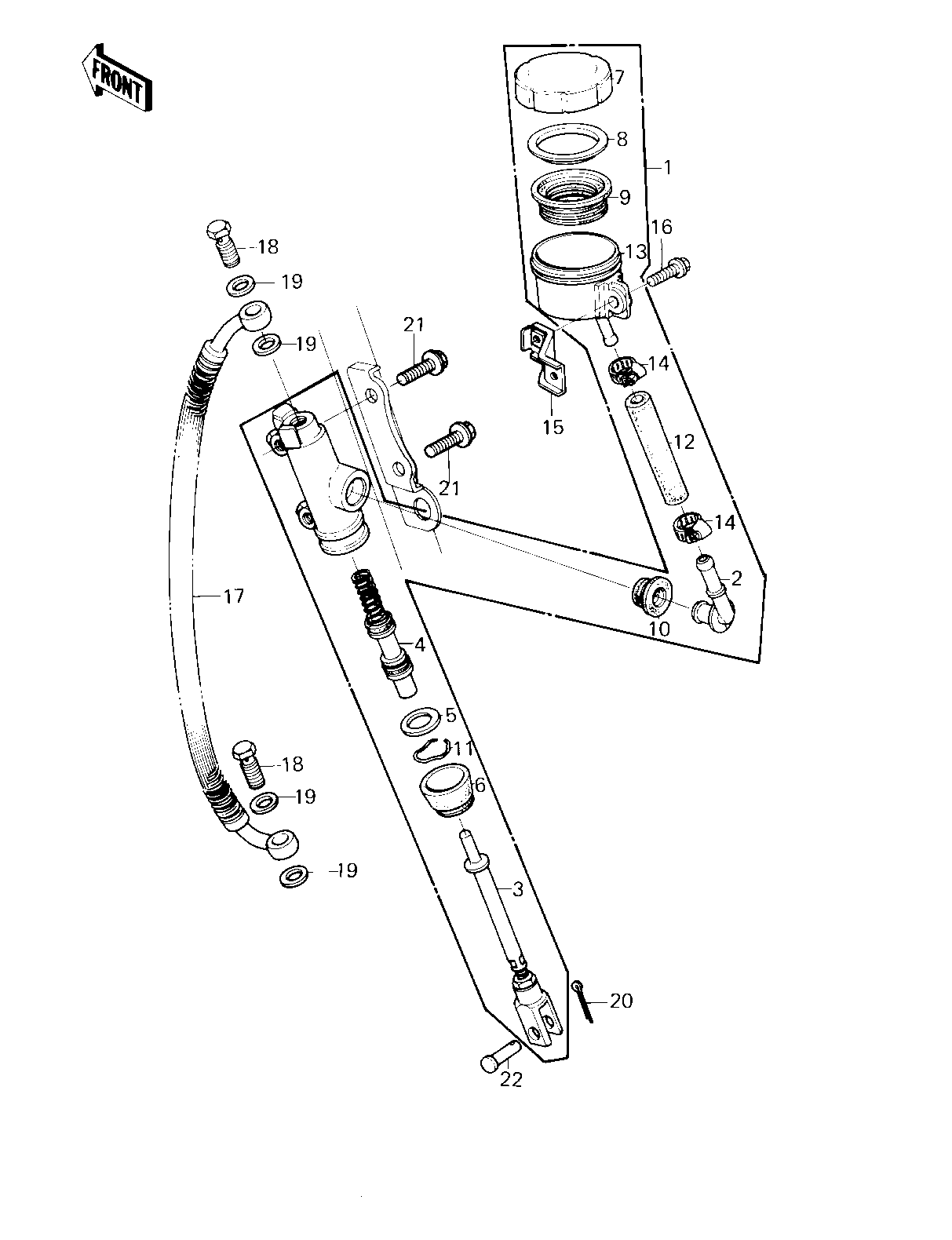

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER ASSY,RR MAS 1 43015-1047 1
CONNECTOR 2 13159-1005 1
ROD ASSY,REAR BRAKE 3 43010-1003 1
PISTON ASSY,RR BRAKE 4 43020-1015 1
STOPPER,PISTON 5 43022-1002 1
DUST COVER 6 43024-003 1
CAP,OIL CUP 7 43026-1010 1
PLATE,DIAPHRAGM 8 43027-1005 1
DIAPHRAGM 9 43028-1016 1
PACKING 10 43049-1008 1
RING,DUST SEAL 11 43058-004 1
HOSE,BRAKE 12 43059-1044 1
RESERVOIR 13 43078-1008 1
CLAMP,BRAKE HOSE 14 92037-1154 2
BRACKET,RR M/CYLINDE 15 11034-1580 1
BOLT,FLANGED,6X20 16 130B0620 1
HOSE, RR M/CYL BRAKE 17 43059-1046 1
BOLT,OIL,L=23 18 92002-1888 2
WASHER-OIL BOLT 19 43067-001 4
PIN COTTER 2.0X15 20 550D2015 1
BOLT,8X28 21 92001-1095 2
PIN 22 92043-1013 1
