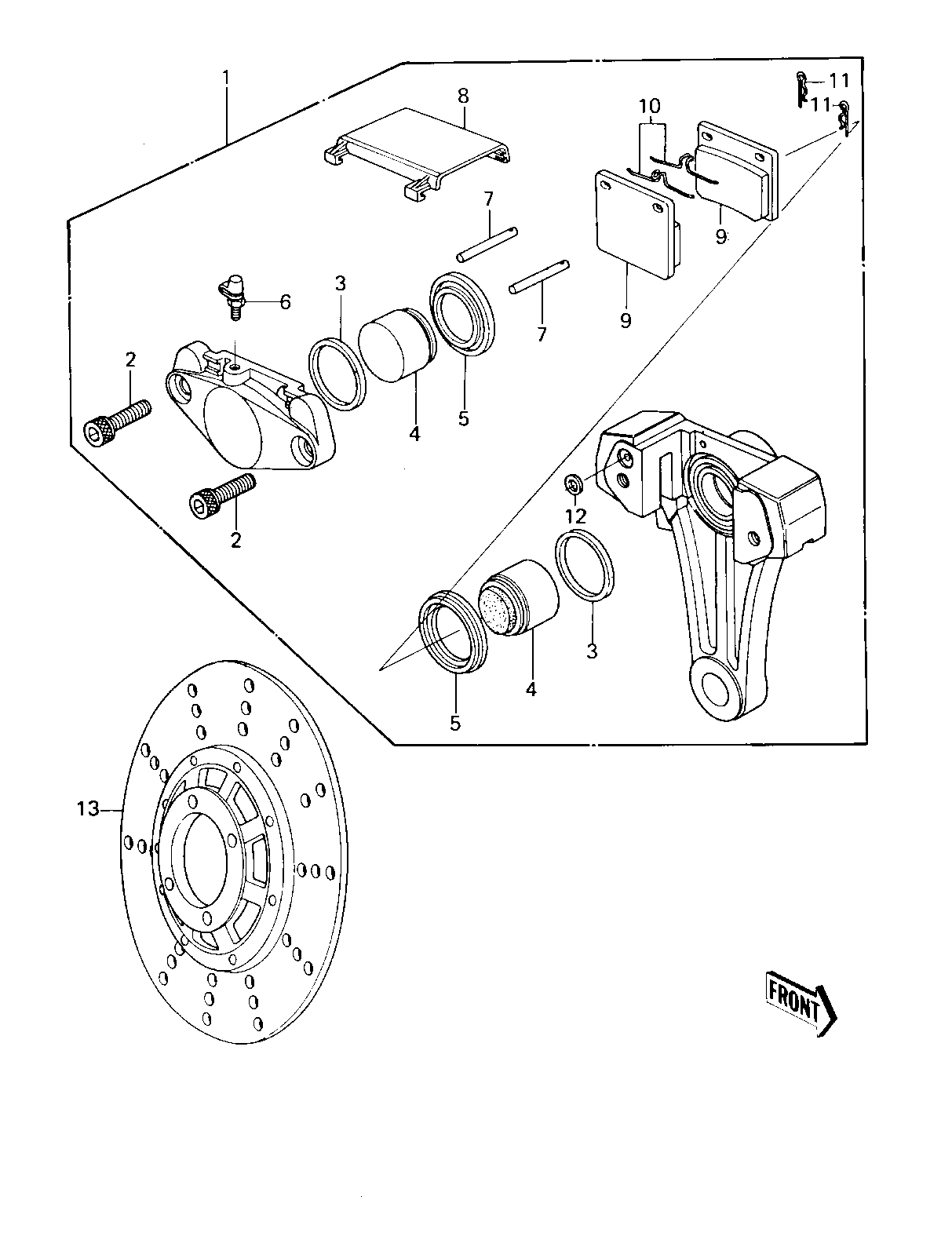

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CALIPER ASSY,REAR 1 43041-1013 1
BOLT,REAR CALIPER 2 43033-005 2
RING,PISTON SEAL 3 43049-002 2
PISTON,BRAKE 4 43020-1011 2
DUST SEAL,PISTON 5 43054-004 2
BLEEDER SET 6 43085-001 1
PIN 7 43045-007 2
CAP 8 43024-004 1
PAD SET 9 43082-1002 1
SPRING 10 43086-002 2
CLIP 11 43084-003 2
RING,SEAL 12 43053-008 1
DISC PLATE, RR BRAKE 13 41080-1023 1
