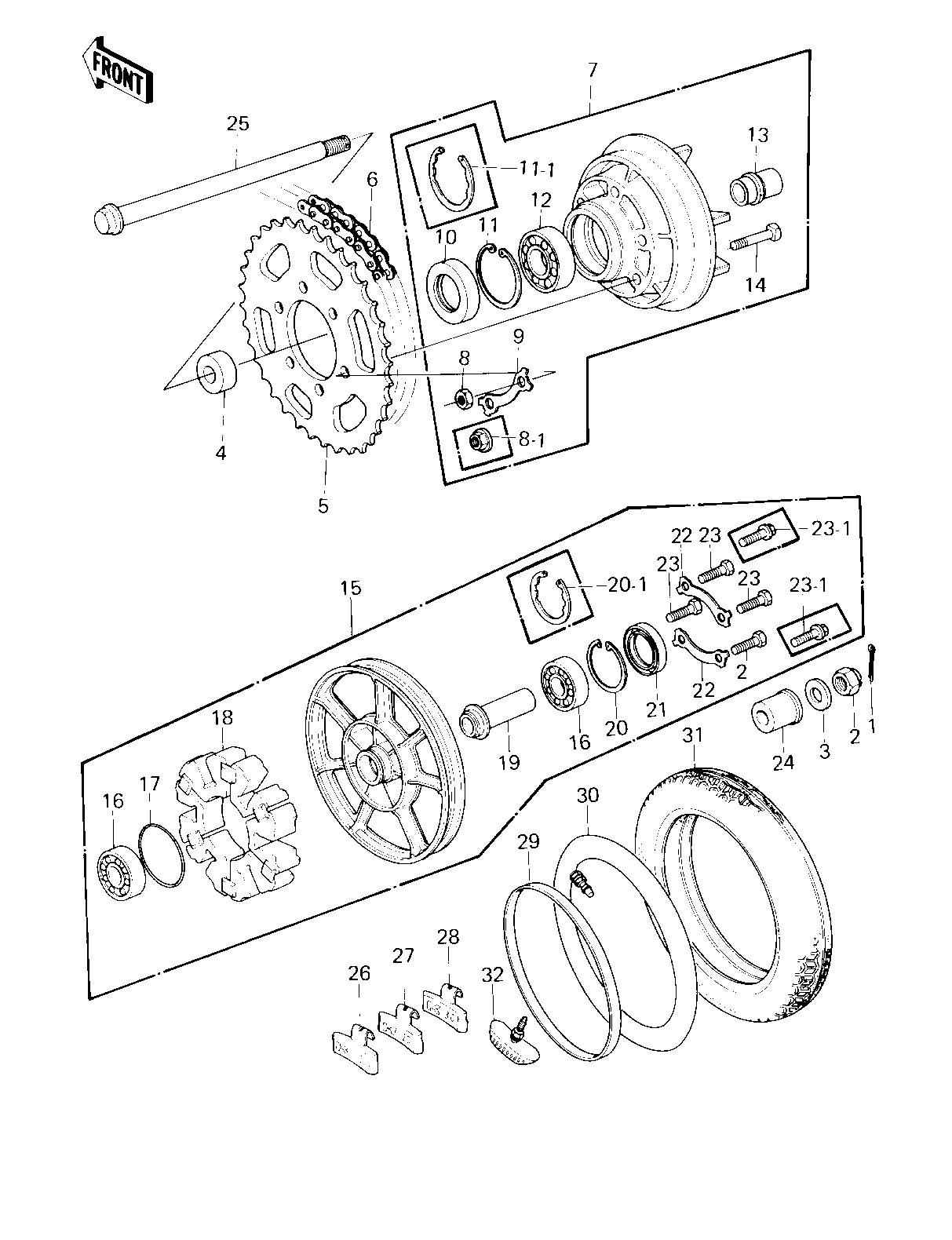

1980 Z1R - REAR WHEEL/TIRE/HUB/CHAIN ('80 D3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 1 550D4035 1
NUT CASTLE,18MM 2 42045-018 1
WASHER,PLAIN,20MM 3 92022-248 1
COLLAR,REAR AXLE 4 42032-071 1
REAR SPROCKET, 35T 5 42041-1031 1 BLACK
DR CHAIN 630X92 6 92057-107 1 EK630S
COUPLING ASSY,REAR 7 42033-1005 1
NUT 10MM 8 42045-005 6
NUT,10MM 8-1 92015-1415 6
WASHER LOCK 9 92088-007 3 NOT REQUIRED FOR
OIL SEAL 10 92050-027 1
CIRCLIP,62M/M 11 92033-1044 1
CIRCLIP,62M/M 11-1 92033-1044 1
BALL BEARING,#6206 12 601B6206 1
SLEEVE,RR HUB COUPLN 13 42036-033 1
BOLT-REAR SPROCKET 14 92003-087 6
SOLID WHEEL ASSY,REA 15 41073-1035 1
BALL BEARING,#6304Z 16 601B6304Z 2
"0" RING,65MM 17 671B2565 1
SHOCK DAMPER,REAR HU 18 42014-033 1
SPACER,RR HUB BEARIN 19 42010-039 1
RING,SNAP,56.2M/M 20 92033-1043 1
RING,SNAP,56.2M/M 20-1 92033-1043 1
OIL SEAL WTC35527 21 92052-006 1
WASHER,LOCK 22 92088-023 2 NOT REQUIRED FOR
BOLT 23 92001-158 4
BOLT,HEX HEAD,10X30 23-1 92001-1173 4
COLLAR,REAR AXLE 24 42032-080 1
AXLE,REAR 25 42031-034 1
BALANCER-WHEEL,10G 26 41075-1011 AR
BALANCER-WHEEL,20G 27 41075-1012 AR
BALANCER-WHEEL,30G 28 41075-1013 AR
BAND,RIM,4.00/5.10-1 29 41023-1006 1
TUBE 350/375/410-18 30 41022-031 1 TR6
TIRE 400V-18 K87 31 41002-1069 1 DUNLOP K8
STOPPER,RIM,2.15 32 41024-1001 2
