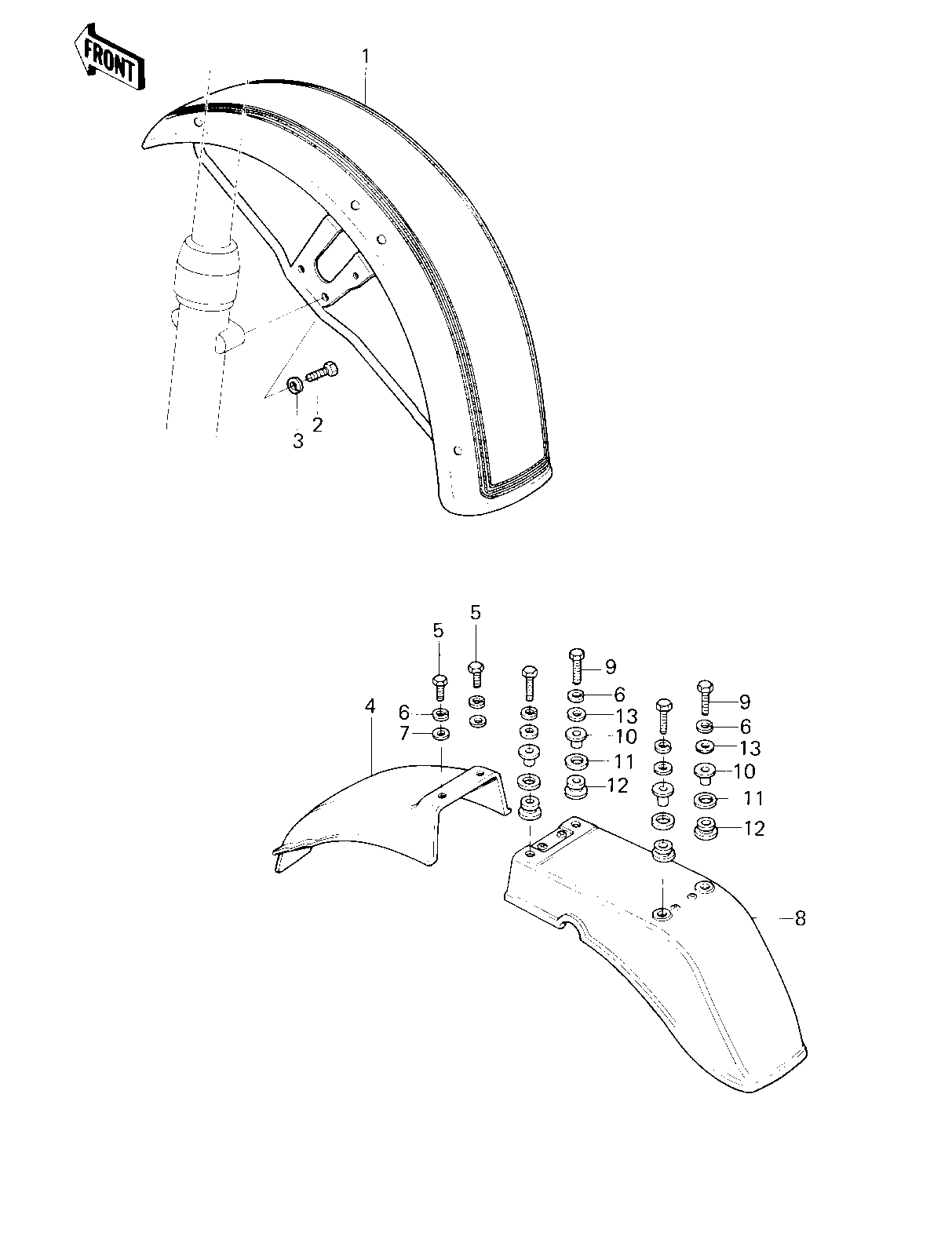

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FR,EBONY 1 35001-1021-8G 1
BOLT-SMALL-UPSET,8X1 2 115G0816 4
WASHER SPRING 8MM 3 461F0800 4
FENDER-RR 4 35022-154 1 (FRONT)
BOLT-UPSET 6X14 5 112B0614 2
WASHER SPRING 6MM 6 461F0600 6
WASHER PLAIN 7 92022-024 2
FENDER-RR 8 35022-1040 1 (REAR)
BOLT-UPSET 9 112G0630 4
COLLAR 10 92027-251 4
DAMPER RUBBER 11 92075-175 4
RUBBER,FENDER COVER 12 92075-174 4
WASHER,PLAIN,7MM 13 92022-228 4
