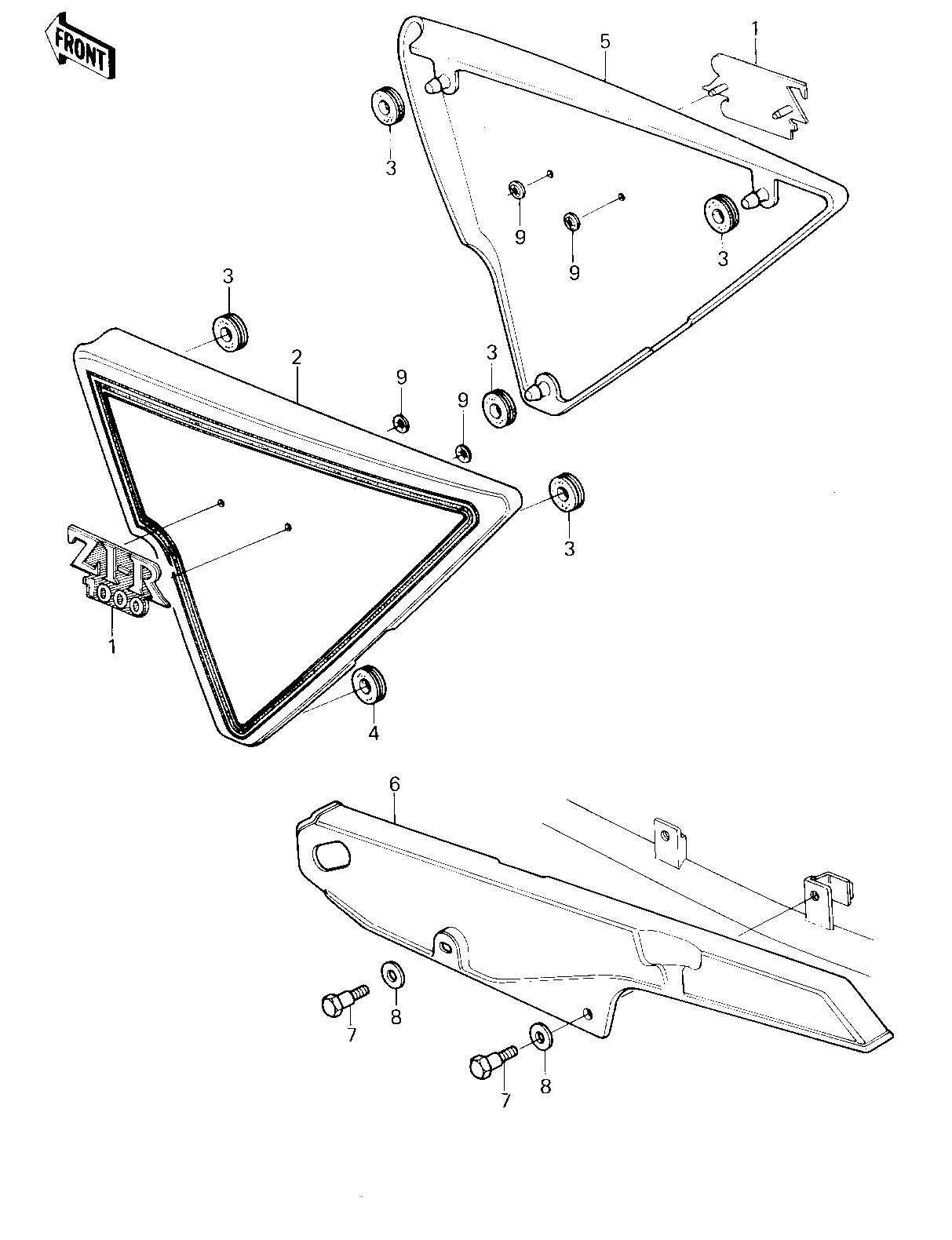

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,SIDE COVER 1 56018-1029 2
COVER,L.H SIDE,EBONY 2 36001-1038-8G 1
GROMMET 3 92071-056 5 26 M/M
GROMMET,SIDE COVER 4 92071-064 1 30 M/M
COVER,R.H SIDE,EBONY 5 36001-1039-8G 1
CASE-CHAIN 6 36014-1004 1
BOLT,HEAX HEAD,6X14 7 92001-115 2
WASHER,8.5X20X1.6 8 92022-1561 2
NUT,LOCK,3MM 9 92018-005 4
