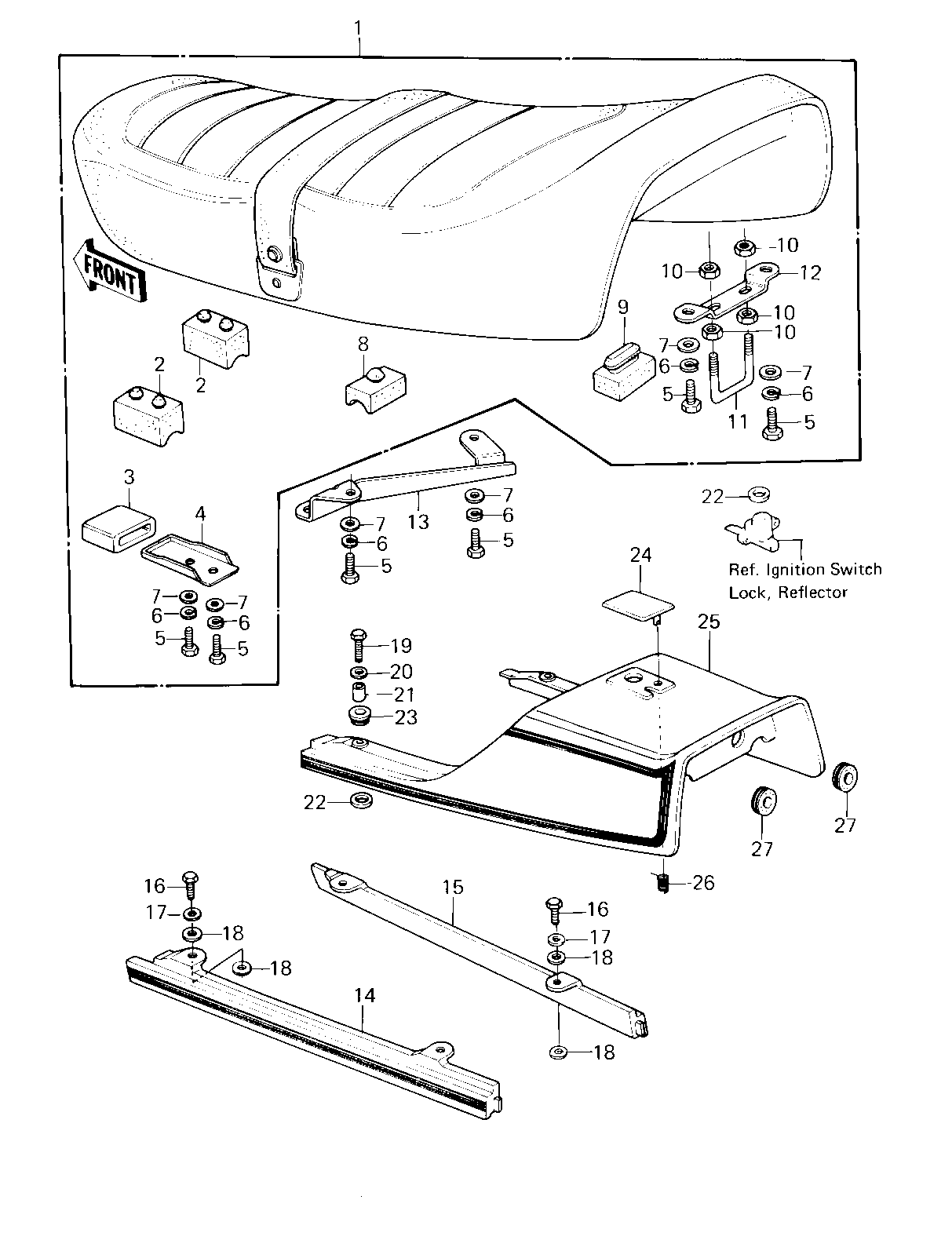

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SEAT-ASSY,DUAL | 1 | 53001-1060 | 1 | ||
DAMPER RUBBER,SEAT | 2 | 92075-139 | 2 | ||
DAMPER RUBBER,SEAT | 3 | 92075-219 | 2 | ||
BRACKET,HOLDER | 4 | 11034-1135 | 2 | ||
BOLT-UPSET,6X16 | 5 | 112G0616 | 8 | ||
WASHER SPRING 6MM | 6 | 461F0600 | 8 | ||
WASHER PLAIN 6MM | 7 | 411B0600 | 8 | ||
DAMPER RUBBER | 8 | 92075-1041 | 1 | ||
DAMPER RUBBER | 9 | 92075-099 | 1 | ||
NUT 6MM | 10 | 312B0600 | 4 | ||
CATCH, SEAT | 11 | 53056-002 | 1 | ||
BRACKET, SEAT CATCH | 12 | 53058-001 | 1 | ||
BRACKET,SEAT | 13 | 11034-1132 | 1 | ||
COVER,SEAT L.H,EBONY | 14 | 14025-1023-8G | 1 | ||
COVER,SEAT R.H,EBONY | 15 | 14025-1024-8G | 1 | ||
BOLT-HEX HEAD,6MM | 16 | 92003-069 | 4 | ||
WASHER PLAIN 8MM | 17 | 410B0800 | 4 | ||
DAMPER RUBBER,SIDE C | 18 | 92075-251 | 8 | ||
BOLT-UPSET | 19 | 112G0625 | 2 | ||
WASHER,PLAIN,7MM | 20 | 92022-228 | 2 | ||
COLLAR | 21 | 92027-241 | 2 | ||
DAMPER RUBBER | 22 | 92075-175 | 3 | ||
RUBBER,FENDER COVER | 23 | 92075-174 | 2 | ||
COVER,SEAT LOCK | 24 | 14025-1025 | 1 | ||
COVER,SEAT,EBONY | 25 | 14025-1018-8G | 1 | ||
SPRING | 26 | 92081-1049 | 1 | ||
DAMPER | 27 | 92075-1057 | 2 |
