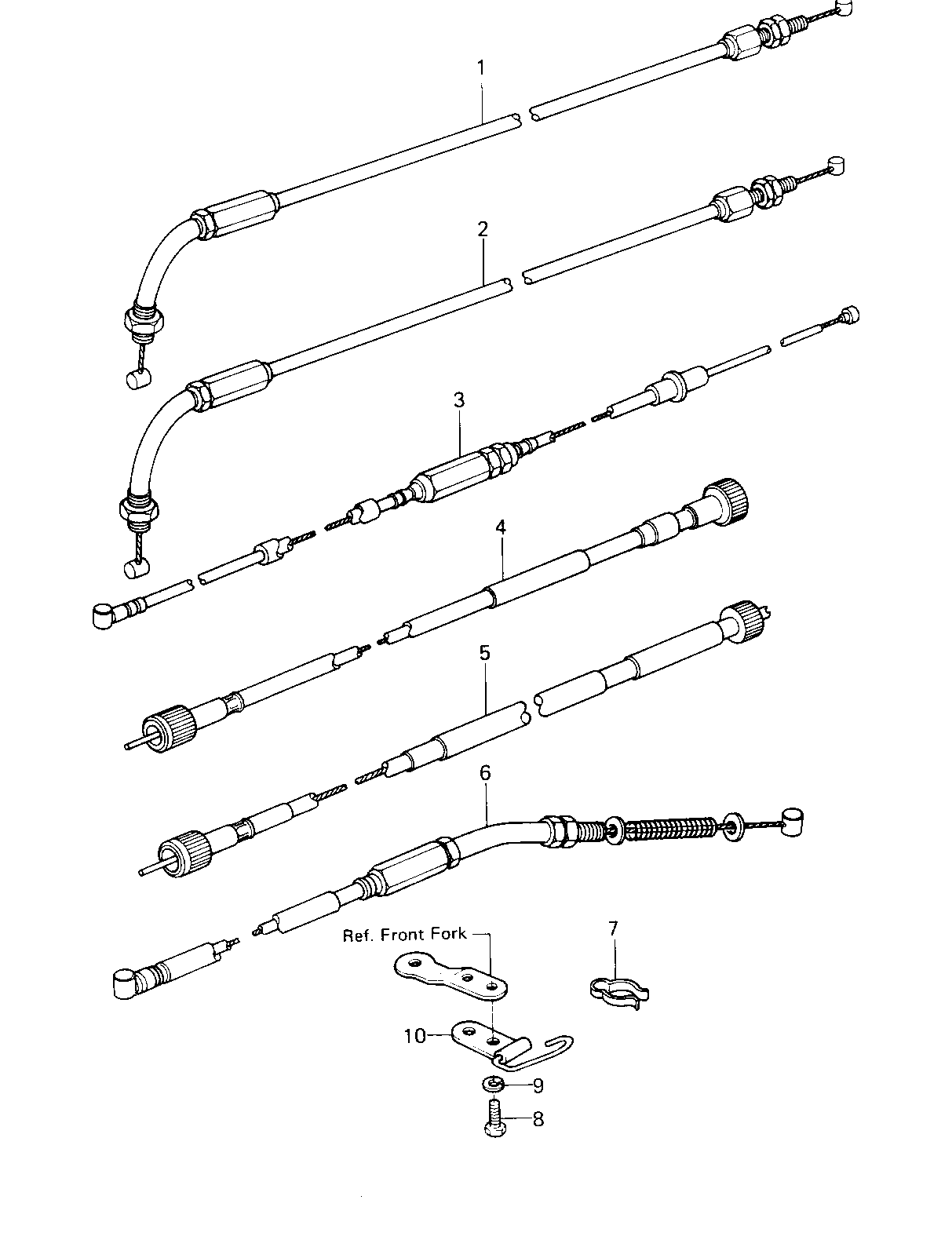

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE,THROTTLE CON.O 1 54012-1018 1 FOR OPENING
CABLE,THROTTLE CON.C 2 54012-1019 1 FOR CLOSING
CABLE,CLUTCH 3 54011-070 1
CABLE,TACHOMETER 4 54018-1010 1
CABLE,SPEEDOMETER 5 54001-1015 1
CABLE,FRONT BRAKE 6 54005-1012 1
CLAMP,CABLE 7 92037-093 1
BOLT-UPSET,6X16 8 112G0616 1
WASHER SPRING 6MM 9 461F0600 2
CLAMP,CABLE 10 92037-1135 1
