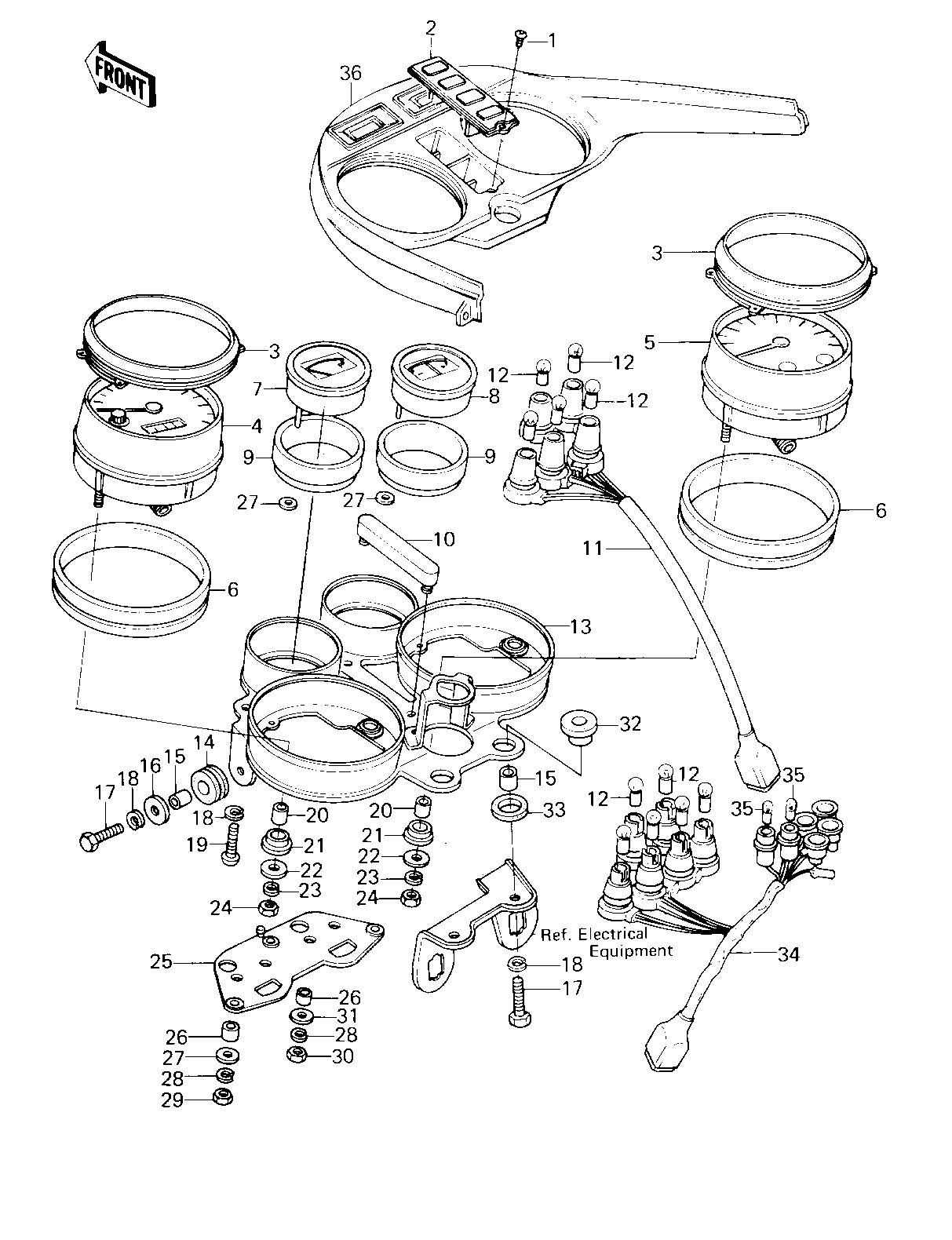

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW,TAPPING,3X12,B | 1 | 92009-1028 | 1 | ||
COVER,METER INDICATE | 2 | 25023-1004 | 1 | ||
DAMPER RUBBER,METER | 3 | 92075-1049 | 2 | ||
SPEEDOMETER ASSY,MPH | 4 | 25005-1070 | 1 | ||
SPEEDOMETER ASSY,KPH (Canada) | 4 | 25005-1023 | 1 | ||
TACHOMETER ASSY | 5 | 25015-1014 | 1 | ||
DAMPER RUBBER,METER | 6 | 92075-1050 | 2 | ||
METER,FUEL GAUGE | 7 | 28011-1001 | 1 | ||
METER,AMMETER | 8 | 28011-1002 | 1 | ||
DAMPER RUBBER,METER | 9 | 92075-1051 | 2 | ||
DAMPER RUBBER,METER | 10 | 92075-1053 | 1 | ||
SOCKET ASY,METR INDI | 11 | 23008-1021 | 1 | ||
BULB 12V 3W | 12 | 92069-018 | 11 | ||
BRACKET,METER | 13 | 25008-1008 | 1 | ||
DAMPER RUBBER | 14 | 92075-1035 | 2 | ||
COLLAR 6.8X10X14.5 | 15 | 92027-156 | 2 | ||
WASHER 6.5X20X1.6T | 16 | 92022-125 | 4 | ||
BOLT-UPSET | 17 | 112G0625 | 4 | ||
WASHER SPRING 6MM | 18 | 461F0600 | 6 | ||
SCREW PAN HEAD 6X12 | 19 | 220B0612 | 2 | ||
COLLAR,METER | 20 | 92027-211 | 4 | ||
RUBBER,METER | 21 | 92075-172 | 4 | ||
WASHER,PLAIN,5MM | 22 | 92022-241 | 4 | ||
WASHER SPRING 5MM | 23 | 461F0500 | 4 | ||
NUT 5MM | 24 | 312B0500 | 4 | ||
DAMPER RUBBER,METER | 25 | 92075-1052 | 1 | ||
COLLAR | 26 | 92027-1075 | 7 | ||
WASHER,PLAIN | 27 | 92022-1052 | 7 | ||
WASHER SPRING 4MM | 28 | 461F0400 | 7 | ||
NUT-HEX | 29 | 312B0400 | 3 | ||
NUT,4MM | 30 | 311B0400 | 4 | ||
WASHER,PLAIN | 31 | 92022-1051 | 4 | ||
DAMPER RUBBER | 32 | 92075-1036 | 2 | ||
DAMPER RUBBER | 33 | 92075-1037 | 2 | ||
SOCKET ASSY,METER | 34 | 23008-1020 | 1 | ||
BULB,12V2W | 35 | 92069-1003 | 2 | ||
COVER,METER CASE | 36 | 25023-1002 | 1 |
