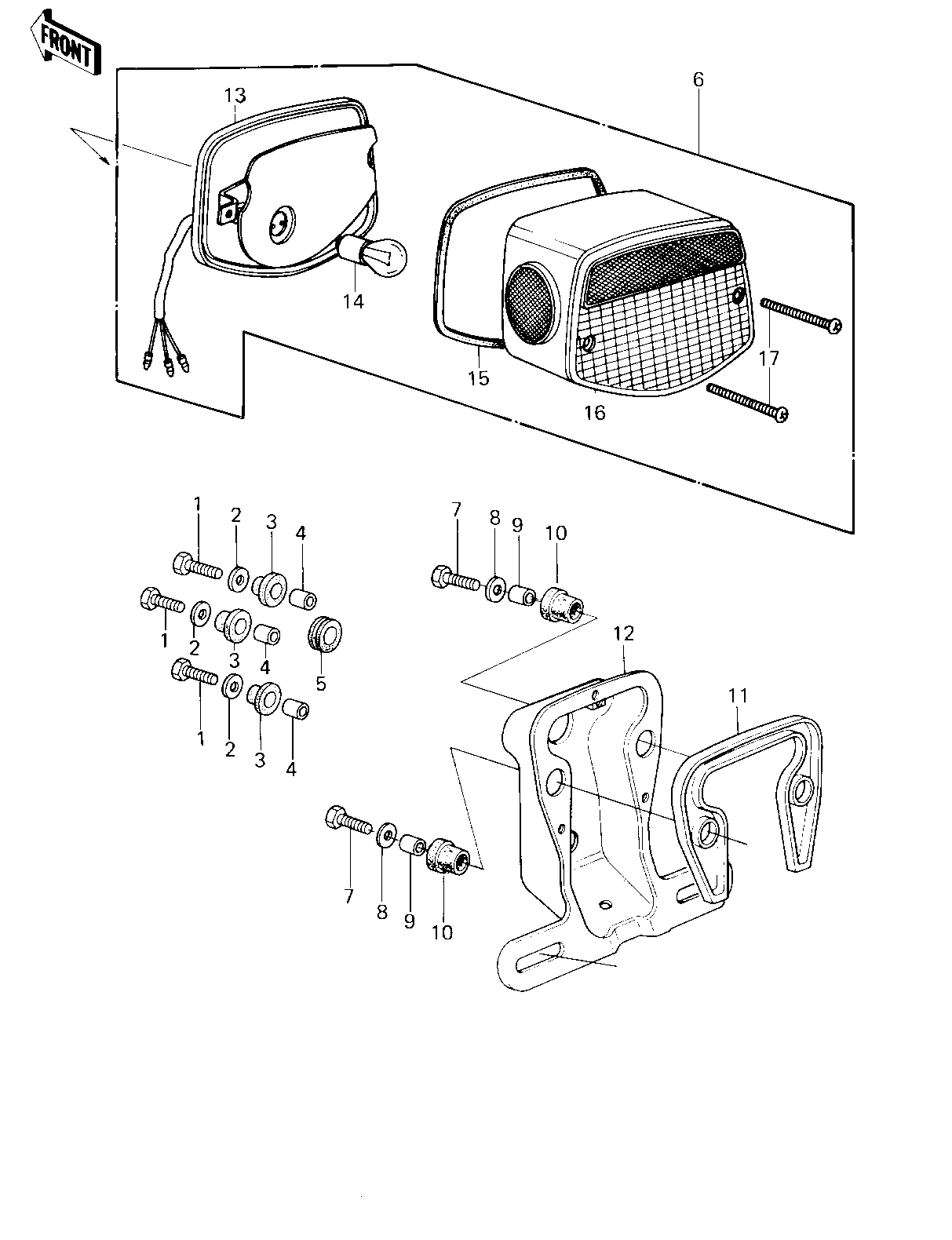

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X20 1 112G0620 3
WASHER 6.5X20X1.6T 2 92022-125 3
DAMPER RUBBER 3 92075-112 3
COLLAR 6.8X10X10.5 4 92027-120 3
GROMMET HARNESS 10MM 5 92071-019 1
TAIL LAMP UNIT 6 23025-064 1
BOLT 6X22 7 112B0622 2
WASHER 6.5X20X1.6T 8 92022-125 2
COLLAR 6.8X10X14.5 9 92027-156 2
DAMPER RUBBER 10 92075-1092 2
DAMPER RUBBER,TAIL 11 92075-1103 1
BRACKET,TAIL LAMP 12 23036-1011 1
CASE,TAIL LIGHT 13 23027-041 1
BULB,12V 32/3CP 14 92069-059 1
GASKET,TAIL LENS 15 23028-021 1
LENS,TAIL LAMP 16 23026-034 1
SCREW-PAN-CROS 17 220R0460 2
