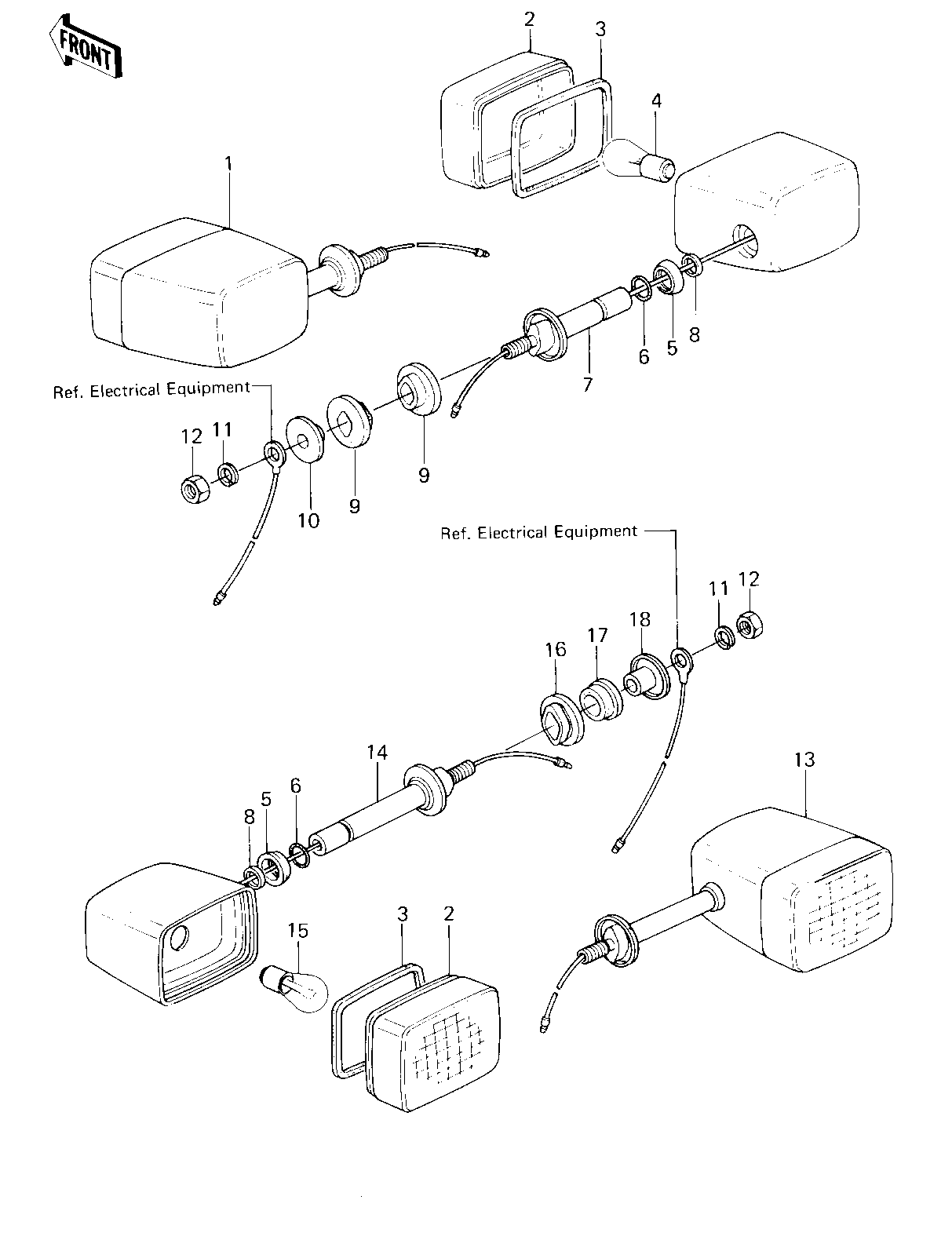

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP ASSY,FR TURN SI 1 23037-1030 2 FRONT
LENS,TURN SIGNAL 2 23048-1009 4
GASKET,TURN SIG LAMP 3 11009-1034 4
BULB,12V 23/8W 4 92069-060 2
RING 5 43058-1002 4
"O" RING,12MM 6 670B2012 4
BRACKET,TRN SIG FRON 7 23051-1010 2 FRONT
GASKET,SIGNAL LAMP 8 11009-1048 4
DAMPER,TURN SIG FITT 9 92075-1014 4
COLLAR 10 92027-1059 2
WASHER SPRING 10MM 11 461F1000 4
NUT 10MM 12 315B1000 4
LAMP ASSY,RR TURN SI 13 23037-1031 2 REAR
BRACKET,TRN SIG REAR 14 23051-1011 2 REAR
BULB 12V 32CP 15 92069-055 2
DAMPER RUBBER 16 92075-128 2
DAMPER RUBBER,SIG LM 17 92075-158 2
COLLAR 18 92027-147 2
